5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
Specifications
Brand Name :
Yongsheng
Model Number :
Aluminum Checkered Plate
Certification :
SGS, ISO, RoHS, etc.
Place of Origin :
Henan Province , China
MOQ :
2 Tons
Price :
2800-3300 USD/Ton
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5000 Tons Per Month
Delivery Time :
7-20 workdays
Packaging Details :
Standard Seaworthy Wooden Pallet Packing
Grade :
1100, 1145, 1050, 1060, 3003, 3004, 3005, 3102, 5052, 5A02, 5754
Temper :
O-H112
Type :
Plate/Coil
Thickness :
0.13-6.5mm
Width :
100mm-1600mm, Customer Requirement
Application :
Construction,industry,Automobile,Building wall
Pattern :
Classic, 1-5 bars, Checker, Altered, Diamond, Stucco, etc.
Price Terms :
T/T, L/C
Description
Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet

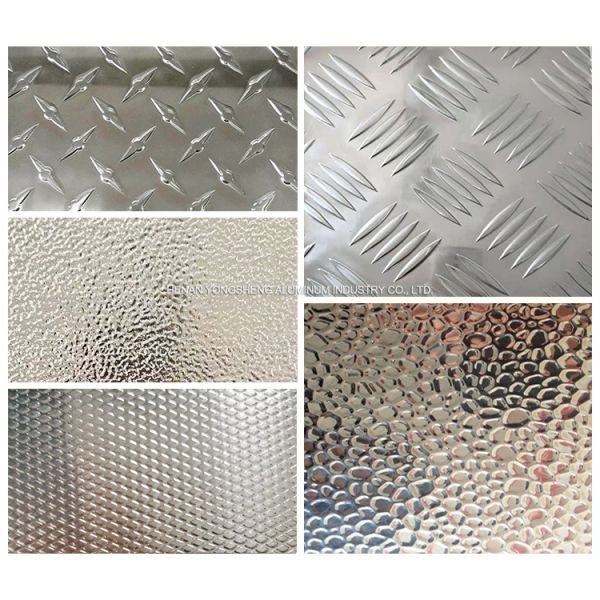

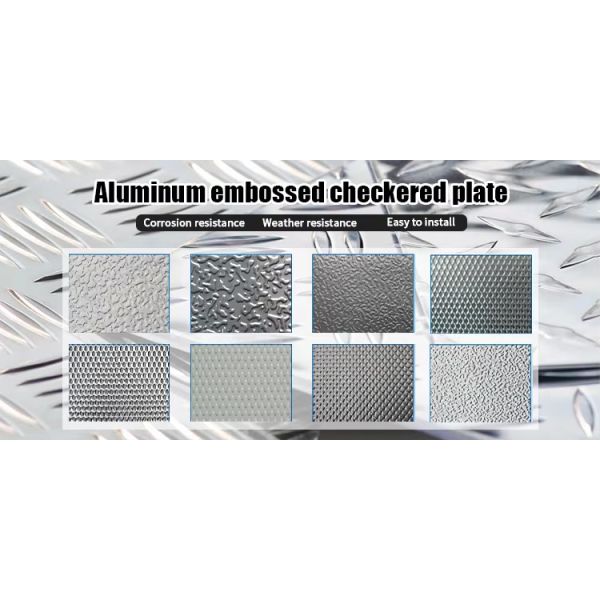

Embossed aluminum plates are available in various patterns including five-rib, compass, orange peel, lentil-shaped, spherical, and diamond-shaped designs. These versatile materials are widely used in packaging, construction, cabinet shells, curtain walls, and industrial applications.
Pattern Types & Applications
  • Five-Rib Aluminum Alloy Pattern Plate: Also known as willow-leaf pattern plate, features excellent anti-slip properties with 60-80 degree angled patterns. Ideal for building platforms, flooring, and industrial surfaces requiring superior traction.
  • Compass Aluminum Alloy Pattern Plate: Anti-slip aluminum plate with similar functionality to five-rib patterns, though less commonly used.
  • Orange Peel Aluminum Alloy Patterned Plates: Available in classic and variant (insect pattern) styles. Commonly used in refrigerators, air conditioners, and packaging applications.
  • Lentil-Shaped Patterned Aluminum Plates: Popular anti-slip design used in vehicle compartments, cold storage flooring, workshop floors, and elevator surfaces.
  • Spherical Patterned Aluminum Plates: Also called pearl-shaped patterned aluminum, featuring small spherical patterns that provide enhanced strength and attractive appearance for packaging applications.

5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet

Product Specifications
1000 Series Alloy (Commercial Pure Aluminum, Al >99.0%)
Alloy: 1050, 1050A, 1060, 1070, 1100
Temper: O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc.
Specification: Thickness ≤6.5mm; Width ≤1600mm
Application: Lid Stock, Industrial Device, Storage, Containers
Feature: High conductivity, excellent corrosion resistance, high latent heat of melting, high reflectance, good welding properties, low strength, not suitable for heat treatments
3000 Series Alloy (Al-Mn Alloy)
Alloy: 3003, 3004, 3005, 3102, 3105
Temper: O/H111 H112 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc.
Specification: Thickness ≤6.5mm; Width ≤1600mm
Application: Decoration, heat-sink devices, external walls, storage, construction sheets
Feature: Excellent rust resistance, good corrosion resistance, well welding property, good plasticity, suitable for cold working hardening
5000 Series Alloy (Al-Mg Alloy)
Alloy: 5005, 5052, 5083, 5086, 5182, 5754, 5154, 5454, 5A05, 5A06
Temper: O/H111 H112 H116/H321 H12/H22/H32 H14/H24/H34 H16/H26/H36 H18/H28/H38 H114/H194, etc.
Specification: Thickness ≤6.5mm; Width ≤1600mm
Application: Marine Grade Plate, Ring-Pull Can End Stock, Automotive Body Sheets, Engine Protective Covers
Feature: High tensile & yield strength, excellent corrosion resistance, well welding property, good fleet strength, suitable for anodic oxidation
6000 Series Alloy (Al-Mg-Si Alloy)
Alloy: 6061, 6063, 6082
Temper: O T, etc.
Specification: Thickness ≤6.5mm; Width ≤1600mm
Application: Automotive, Aviation, Industrial Moulds, Mechanical Components, Transport Ships, Semiconductor Equipment
Feature: Excellent corrosion resistance, well-welded property, good oxidability, easy spray-finishing, good oxidation coloring, superior machinability
Available Materials
1060 1200 1100 2024 3003 3004 6061 7075 8011
Product Gallery
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
5052 5754 Diamond Aluminum Plate / Checkered Patterned Plate / Embossed Perforated Aluminum Sheet
