1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
Specifications
Brand Name :
Henan Yongsheng
Model Number :
1060 H18 Battery Foil
Certification :
ISO, RoHS, FDA
Place of Origin :
Zhengzhou Henan
MOQ :
1 ton
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 tons per month
Delivery Time :
7-25 days after order confirmation
Packaging Details :
Seaworthy Export Standard Wooden Box
Product Name :
1000 Series Battery Foil
Alloy :
1050 1060 1100 1235, etc
Temper :
O, F, H12, H14, H18, H22, H24, H26, H32, etc
Thickness :
6mic-200mic
Width :
120- 1500 mm (tolerance:± 1.0mm)
Sample :
Free
Dyne Value :
48 56 70 dyne
MOQ :
1 Ton
Description
1060 H18 Aluminum Foil 0.15mm Thickness for Lithium Battery Applications
Henan Yongsheng Aluminum Co., Ltd. is a leading manufacturer and supplier of high-quality aluminum foil products. Our 1060 H18 battery aluminum foil offers excellent conductivity and durability, specifically engineered for lithium battery applications. With a high melting point, this foil can withstand extreme temperatures while maintaining performance integrity.
Manufacturing Excellence
  • Advanced aluminum foil rolling mill equipment with AGC and AFC systems for precise control of plate shape and thickness
  • Strict quality control of aluminum foil billets, including hydrogen content, non-metallic slag inclusion, and grain size
  • Advanced online machining technology ensuring optimal cleanliness while maintaining mechanical strength
Technical Specifications
Common Specifications:
Alloy: 1235, 1145, 1060, 1070
Temper: H18
Tensile Strength: 2150 N/mm²
Elongation: 21%
Electrical Resistance Properties
Resistance values for 1145 and 1235 alloy aluminum foils (width 10mm):
Thickness (mm) Maximum Resistance (Ω.m⁻¹)
0.0060 0.55
0.0070 0.51
0.008 0.43
0.009 0.36
0.010 0.32
0.11 0.28
0.16 0.25
Product Specifications
Parameter Details
Standard ASTM, GB, JIS, AISI, EN
Material 1050, 1060, 1070, 1100, 1235, 3003, 3004, 5052, 8006, 8011, 8021, 8079, etc.
Place of Origin China
Thickness 0.006mm (6 micron) - 0.2mm (200 micron)
Width 120-1500 mm (tolerance: ±1.0mm)
Temper O, F, H12, H14, H18, H22, H24, H26, H32, etc.
Applications Lithium batteries, food packaging, beverage, pharmaceutical, capacitors, insulation materials, construction materials
MOQ 1 ton
Price Terms Ex-work, FOB, CFR, CIF, etc.
Delivery Time 20-30 days (standard sizes available from stock)
Package Export standard packaging, carton boxes or wooden cases, waterproof paper, or custom packaging as requested
Container Specifications
20ft GP: 5.9m (length) × 2.13m (width) × 2.18m (height) - approximately 24-26 CBM
40ft GP: 11.8m (length) × 2.13m (width) × 2.18m (height) - approximately 54 CBM

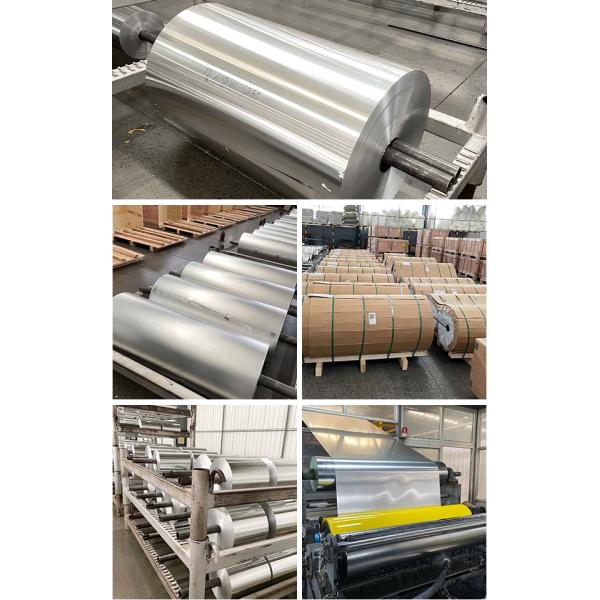

Product Image
1060 H18 Aluminum Foil 0.15mm Thickness H12 For Lithium Battery Foil
