Specifications
Brand Name :
YONGSHENG
Model Number :
1000 3000 5000 Series
Certification :
ISO, RoHS
Place of Origin :
Henan Province, China
MOQ :
2 Ton
Price :
3050-3250 USD/Ton
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5000 Tons per month
Delivery Time :
7-25 days after order confirmation
Packaging Details :
Standard Sea-worthy Packing
Keyword :
Aluminum Sheet
Material :
Aluminum Alloy Metal
Temper :
O-H112
Width :
10-2000mm
Thickness :
0.15-200mm Customized
Shape :
Flat Plate
Surface Treatment :
Mill Finish
Processing Service :
Bending, Decoiling, Welding, Punching, Cutting
Port :
QingDao, ShangHai, TianJin
Sample :
Free
Description
1100 1060 Aluminum Sheet 0.5mm Thickness
Premium aluminum sheet specifically designed for food packaging and electronic heat dissipation applications, featuring 0.5mm thickness for optimal performance.
1100 1060 Aluminum Sheet 0.5mm Thickness for Food Packaging/Electronic Heat Dissipation
Aluminum Alloy Series Overview
Alloy Series Core Features Typical Applications
1000 Series Pure Aluminum Plate - Soft texture, extremely corrosion-resistant, excellent electrical/thermal conductivity, low strength, easy to process
  • Electronics industry: Conductive sheets, capacitor casings
  • Chemical industry: Corrosion-resistant containers, pipelines
  • Daily necessities: Cooking utensils, decorative foil substrates
  • Signs and nameplates
2000 Series Al-Cu Alloy Plate - High strength, resistant to high temperatures, requires surface treatment for corrosion protection
  • Aerospace: Aircraft fuselage frame, wing skin
  • Military industry: Armored vehicle components, missile casing
  • High-pressure vessels: High-strength pressure-bearing components
3000 Series Al-Mn Alloy Plate - Medium strength, excellent corrosion resistance, good plasticity, easy to weld
  • Food industry: Canned body, food packaging containers
  • Refrigeration industry: Air conditioning evaporator, condenser fins
  • Decoration industry: Indoor ceiling, curtain wall applications
4000 Series Al-Si Alloy Plate - Low melting point, wear-resistant, primarily used in casting materials
  • Welding materials: Aluminum welding rods, welding wires, base materials
  • Wear-resistant components: Engine cylinder liner, heat-resistant parts
5000 Series Al-Mg Alloy Plate - High strength, extremely strong corrosion resistance, excellent low-temperature performance, easy to shape
  • Marine applications: Ship hull exteriors, marine platform components
  • Transportation: Car body panels, subway car panels
  • Outdoor Engineering: Containers, outdoor billboards, high-voltage cable trays
6000 Series Al-Mg-Si Alloy Plate - Heat-treatable strengthening, medium strength, excellent corrosion resistance, superior machinability
  • Construction industry: Aluminum window and door profiles, curtain wall panels
  • Electronic equipment: Laptop computer shells, mobile phone body frames
  • Furniture: Office furniture frames, aluminum tabletops and chair panels
7000 Series Extremely high strength, requires corrosion protection, premium pricing
  • High-end aviation: Aircraft landing gear, missile body
  • Sports equipment: Bicycle frame, snowboard, hiking stick
  • High-end industry: Precision mold, high-strength structural components

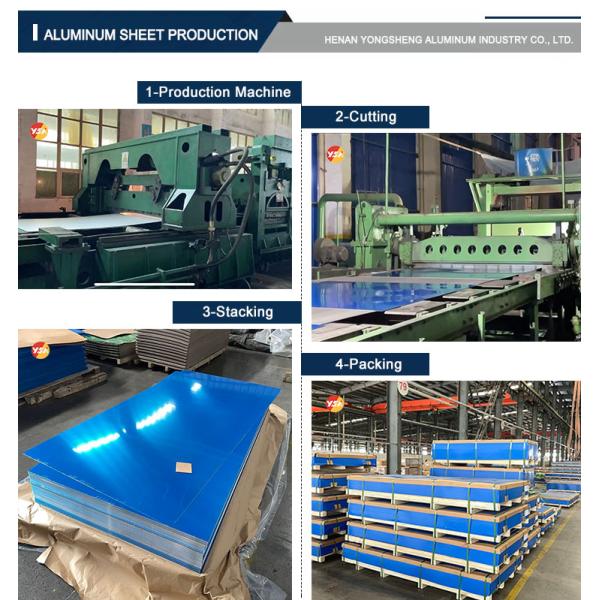

Technical and Process Advantages
Mature Smelting and Casting Technologies: Our factory maintains precise temperature control for various aluminum plate materials including 1 series (pure aluminum), 3 series (aluminum-manganese alloy), and 5 series (aluminum-magnesium alloy). Pure aluminum melting temperature is precisely controlled within 660-700℃. Advanced degassing and slag removal processes minimize internal defects, with mechanical properties fluctuating within ±5% range - significantly better than the industry average of ±8%.
High-Precision Rolling and Surface Treatment: Equipped with upgraded four-roll reversible cold rolling machines capable of processing aluminum plates from 0.1mm to 10mm thickness. Thickness tolerance reaches as low as ±0.01mm, meeting stringent requirements for electronics and packaging applications. Full range of surface treatments including anodizing, electro-etching coating, and film coating available with custom finishes (mirror, matte, or brushed). Coatings pass salt spray testing (neutral salt spray test ≥ 500 hours).
Rapid Custom Process Response: Our established "process parameter database" enables quick matching of exclusive production processes for specialized applications including marine-grade 5 series aluminum plates and automotive 3 series lightweight aluminum plates. Custom order process confirmation cycle is 30% shorter than industry average.
Quality Control Management
Rigorous Raw Material Selection: We exclusively use high-purity aluminum ingots meeting GB/T3190 (China) or ASTMB209 (USA) standards with aluminum content ≥ 99.7%. Each batch undergoes spectrometer composition testing to prevent performance issues from impurities.
Real-Time Production Monitoring: Key processes (melting, rolling, annealing) feature online detection equipment with real-time composition and temperature monitoring. Laser thickness gauges control rolling precision while thermocouples monitor furnace temperature uniformity. Production data is recorded every 10 minutes for complete traceability.
Comprehensive Finished Product Inspection: Four-level inspection protocol covering appearance, dimensions, performance, and weather resistance. Visual and light detection for appearance, micrometers and vernier calipers for dimensional checks (≥5% sampling rate), universal material testing for mechanical properties, and high/low temperature cycling tests (-40℃ to 80℃, 50 cycles) for outdoor applications. Non-conforming products receive 100% rework with factory pass rate consistently exceeding 99.8%.
Product Details
1100 1060 Aluminum Sheet 0.5mm Thickness for Food Packaging/Electronic Heat Dissipation 1100 1060 Aluminum Sheet 0.5mm Thickness for Food Packaging/Electronic Heat Dissipation
Product Applications
1100 1060 Aluminum Sheet 0.5mm Thickness for Food Packaging/Electronic Heat Dissipation
