5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
Specifications
Brand Name :
Henan Yongsheng
Model Number :
5052 Aluminum Sheet
Certification :
ISO, RoHS
Place of Origin :
Zhengzhou Henan
MOQ :
1 ton
Price :
FOB, CIF, CFR, CNF, etc.
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 tons per month
Delivery Time :
7-25 days after order confirmation
Packaging Details :
Seaworthy Export Standard Wooden Box
Grade :
5052
Temper :
O-H112, etc
Thickness :
0.5-200mm
Width :
100-2000mm
Length :
2000mm,2440mm,6000mm,or as required.
Standard :
GB/T3190-2008,GB/T3880-2006,ASTM B209,JIS H4000-2006,etc
MOQ :
1 ton
Quality Control :
Mill Test Certification is supplied with shipment,Third Part Inspection is acceptable.
Description

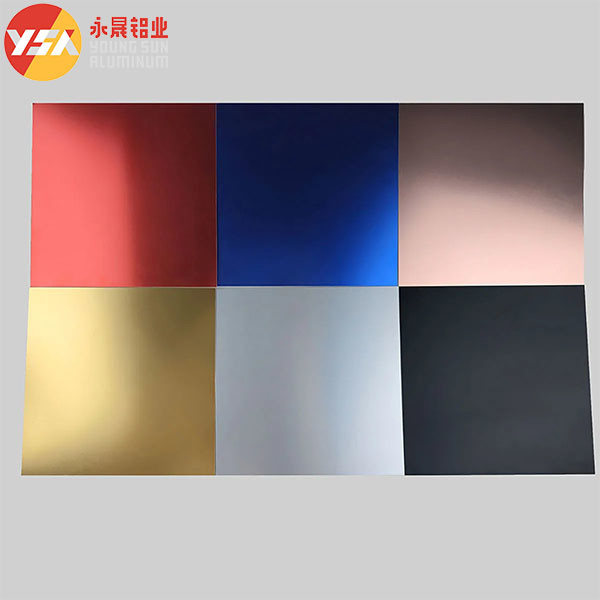

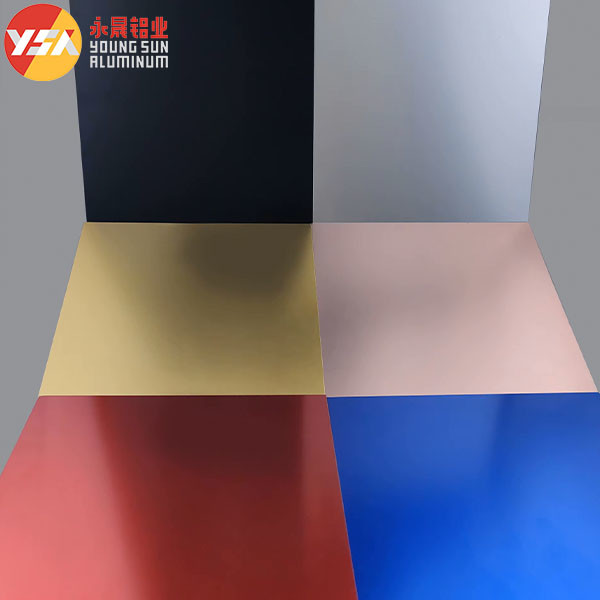

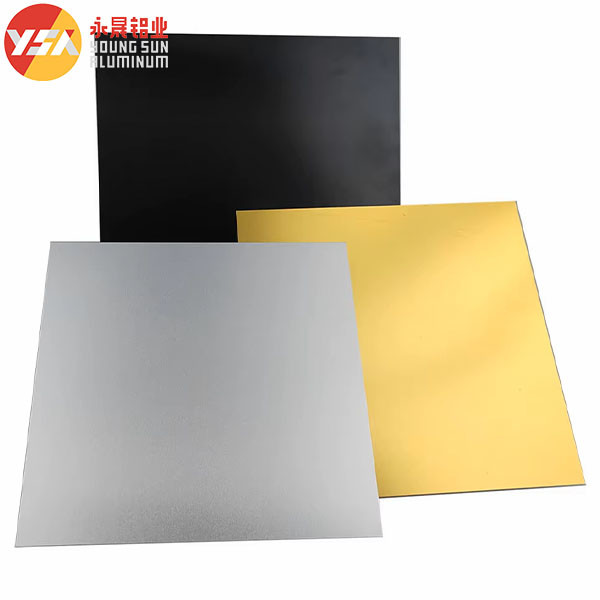

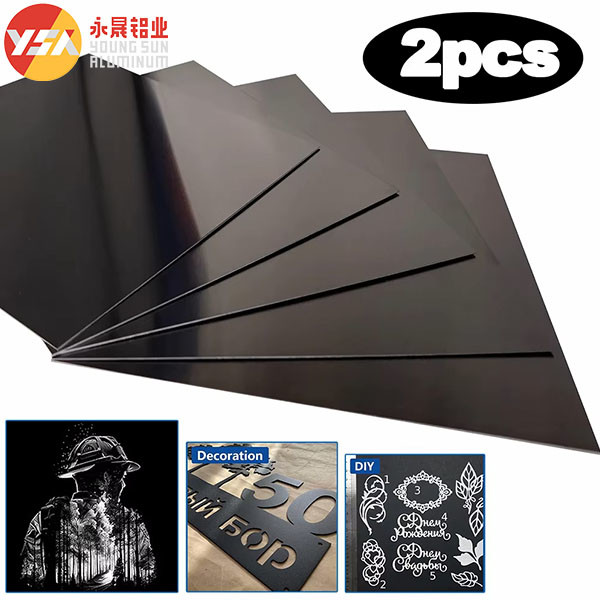

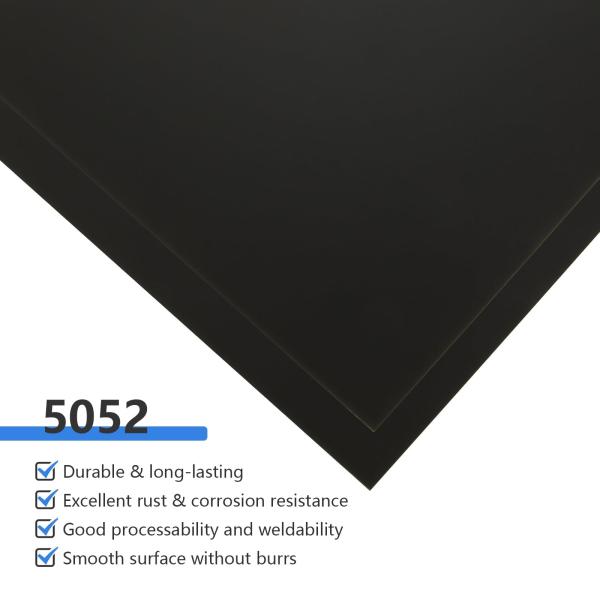

5052 Anodized Aluminum Sheet
Available in 2mm, 3mm, and 4mm thicknesses with black, blue, red, and rose gold plating options.
Product Overview
5052 aluminum alloy offers exceptional anodizing quality and can be customized to meet any color requirements. With outstanding surface processing capabilities, it can be finished in various textures including pre-polished and mirror polished aluminum coil forms, eliminating the need for additional finishing steps.
This alloy provides moderate strength and excellent formability, making it ideal for large electronic products such as laptops, TVs, and consumer electronics. The primary alloying element is magnesium, which contributes to its superior forming and processing properties, corrosion resistance, weldability, and medium strength characteristics.
Key Applications
  • Aircraft fuel tanks and oil pipes
  • Transportation vehicle and ship sheet metal parts
  • Instruments and street lamp brackets
  • Rivets and hardware products
  • Electrical housings and enclosures
5052 vs 1060 Aluminum Comparison
Hardness: 5052 tensile strength (210-230 MPa) is approximately 100% higher than 1060 (110-130 MPa)
Elongation: 5052 elongation (12-20%) is about 200% greater than 1060 (5%)
Chemical Properties: 5052 alloy aluminum offers superior corrosion resistance compared to 1060 pure aluminum under special conditions
Technical Specifications
Mechanical Properties
  • Tensile strength (σb): 170-305 MPa
  • Conditional yield strength σ0.2: ≥65 MPa
  • Elastic modulus (E): 69.3-70.7 GPa
  • Annealing temperature: 345°C
Standard Specifications
Parameter Specification
Grade 1000-6000 Series
Temper O, H14, H24, H32, H112, T4, T651
Thickness 0.2mm - 60mm
Length 100mm - 12000mm
Width 100mm - 2800mm
Surface Treatment Flat, stucco embossed, corrugated, smooth or orange peel embossed
Material Quality Free from defects like white rust, edge damage, camber, dents, holes, break lines, scratches
Processing Services Bending, Punching, Cutting
Minimum Order Quantity 500kg
Additional Product Range
Parameter Specification
Standard GB/T3190-2008, GB/T3880-2006, ASTM B209, JIS H4000-2006
Material 1050, 1060, 2A14, 3003, 3103, 4032, 5454, 5754, 5056, 5082, 5086, 6061, 6060, 6082, 7075, 7475
Thickness 0.5-200mm
Width 100-2000mm
Length 2000mm, 2440mm, 6000mm, or as required
Surface Options Bright, polished, hair line, brush, sand blast, checkered, embossed, etching
Trade & Delivery Information
  • Price Terms: Ex-Work, FOB, CNF, CFR
  • Payment Terms: TT, L/C, Western Union
  • Delivery Time: Ready stock: 7-10 days, Future goods: 20-30 work days
  • Packaging: Export wooden pallets, craft paper, anti-blushing agent
  • Export Markets: Global distribution including USA, Canada, UK, Europe, Middle East, and Asia
Product Gallery
5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate 5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate 5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate 5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate 5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate 5052 Anodized Aluminum Sheet 2mm 3mm 4mm Black Blue Red Rose Gold Plate
