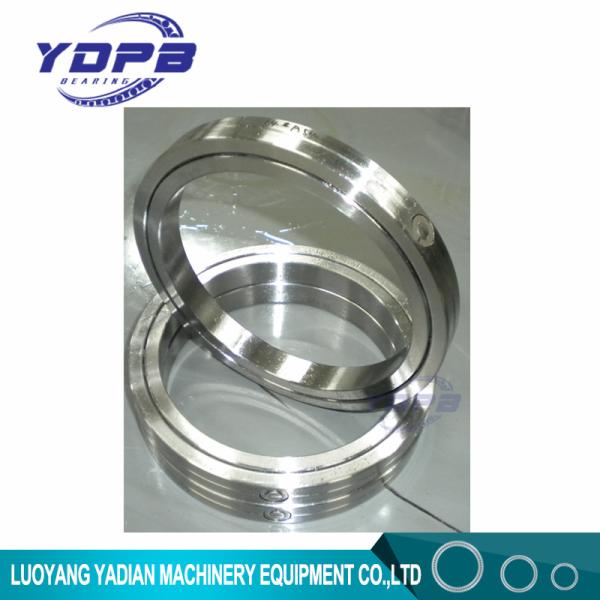

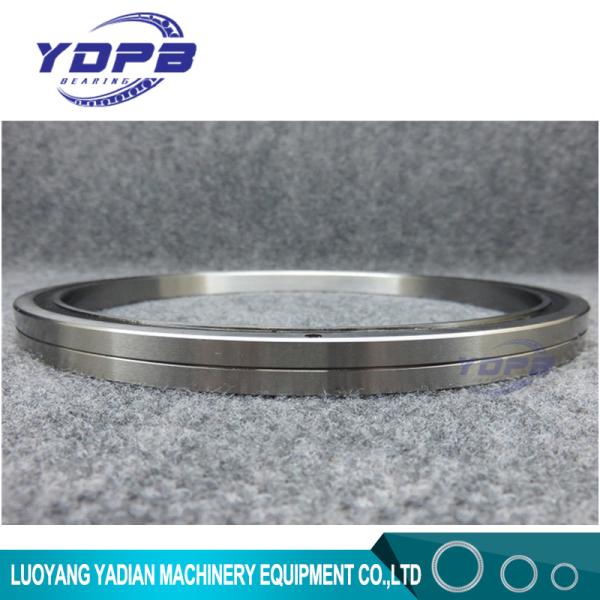

SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use
Specifications
Brand Name :
YDPB
Model Number :
SX011848
Place of Origin :
Luoyang，China
MOQ :
1PCS
Price :
1$
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
5-7days
Packaging Details :
bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases
Certification :
ISO
Model :
SX011848
Material :
GCr15
Structure :
Crossed Cylindrical Roller bearings
Dimension :
240x300x28mm
Application :
Robots arm/machine tool
Name :
Cross-roller bearing
Description

SX011848 Crossed Roller Bearings 240x300x28mm High precision Robotic arm use

cross roller bearing manufacturer made in china

Crossed Roller Bearings Parameters

Model number- SX011848

Inner ring(mm)- 240

Outer ring(mm)- 300

Width(mm)- 28

Weight(Kg)-5.3

Materials- GCR15/GCR15SiMn

Precision grade- P5/P4/P2

Lubrication type- Grease lubrication

Rotating part- Inner Ring Rotation

Load direction- Multi-load

Structure- Outer ring split

cross roller bearing manufacturer made in china

Main parameters

SX011848 precision cross roller bearing made in china 240x300x28mm swiveling tables of machining centers use

Identification number Main dimensious shoulder height Basic load rating (axial) Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r de Di Ca Coa Cr Cor Kg
d D Dp B/B1 S KN KN KN KN
SX011814 70 90 80 10 1.2 0.6 79.5 80.5 18 60 12 30 0.3
SX011818 90 115 102 13 1.2 1 101.5 102.5 26 96 17 47 0.4
SX011820 100 125 112 13 1.2 1 111.5 112.5 28 106 18 52 0.5
SX011824 120 150 135 16 1.5 1 134.4 135.6 41 153 26 75 0.8
SX011828 140 175 157 18 1.5 1.1 156.3 157.7 64 237 41 116 1.1
SX011832 160 200 180 20 1.5 1.1 179.2 180.8 69 272 44 133 1.7
SX011836 180 225 202 22 2 1.1 201.2 202.8 98 381 63 187 2.3
SX011840 200 250 225 24 2 1.5 224.2 225.8 106 425 68 208 3.1
SX011848 240 300 270 28 2 2 269.2 270.8 149 612 95 300 5.3
SX011860 300 380 340 38 2.5 2.1 339.2 340.8 245 1027 156 504 12
SX011868 340 420 380 38 2.5 2.1 379.2 380.8 265 1148 167 563 13.5
SX011880 400 500 450 46 2.5 2.5 449 451 385 1699 244 833 24
SX0118/500 500 620 560 56 2.5 3 558.8 561.2 560 2538 355 1244

44

SX series crossed roller bearings (separatable outer-ring ,Type for inner ring rotation)

Crossed roller bearings SX are bearings for high precision applications, whose dimensions conform to ISO dimension series 18 to DIN 616. They comprise outer rings, inner rings, rolling elements and plastic spacers. The outer ring is split and is held together by three retaining rings.rotary table bearings in stock.

Crossed roller bearings are very rigid, have high running accuracy and are supplied with normal clearance, low clearance or preload. Preloaded bearings have the suffix VSP

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.

Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available

Online shopping Address: www.ydpbbearings.com
