Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose
Specifications
Brand Name :
Jerryborg
Model Number :
STS-H
Certification :
ISO9001
Place of Origin :
Shandong, China
MOQ :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per year
Delivery Time :
10-20 work days
Packaging Details :
nude packing
Price :
negotiable
brand name :
Jerryborg
material :
NR
certificate :
OCIMF - GMPHOM 2009
usage :
crude oil transfer
allowable temperature :
min. -20°C to max. 82°C(min. -4°F to max. 180°F)
length :
1.0m~12.0m
cmeter :
300mm
warranty :
12 months
port :
Qingdao port
Description

Marine Self-floating Oil Hose For Crude Oil Transfer

Self-floating Oil Hose

Self-floating oil hoses are designed for transportation of crude oil, petroleum products of cargoes between offshore loading and unloading vessels.

Self-floating oil hoses are mainly composed of inner tube, reinforcement, and cover layer. The cover layer protects the hose body from the damage caused by the external corrosive environment. The tube is made of NBR compound synthetic rubber, the reinforcement is made of high tensile strength fabric with helix wire independent foam, and the cover is composed of CR synthetic rubber.

Complying with OCIMF standards, our self-floating oil hoses are able to withstand abrasion and bending forces and still perform excellently at low temperatures. Furthermore, the risk of leakage or bulge is absent.

Self-floating Oil Hose Features

Fully compliant with ISO9001, the self-floating oil hose is popular with the oil industry due to its excellent performance.

  • Flexible and durable
  • Resistant to abrasion,UV,aging,corrosion,low temperature
  • Independent foam floating casing to prevent water absorption
  • Perform excellent under high pressure
  • Easy to install and maintain
  • Bear powerful tension and torsion force
  • Steel flanges are also customized

Applications of Self-floating Oil Hose

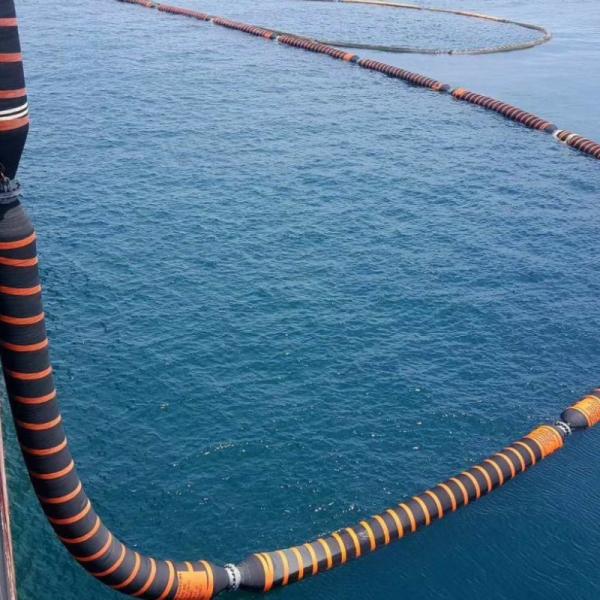

Self-floating oil hose is suitable for transferring petroleum, crude oil, and vapours between vessels and oil tankers.

Dia 300mm Crude Oil Transfer Self Floating Marine Oil Hose

Self-floating Oil Hose Specifications

1. Minimum bending radius: 4 × Nominal Diameter

2. Allowable flow velocity : 21 m/sec (70 ft/sec)

3. Fluid: Crude Oil, Liquid Petroleum Products

4. Temperature: -20℃ to +82℃

Dimensions:

diameter length
6" 6m (19.7ft)
8" 6m (19.7ft)
8m (26.2ft)
10m (32.2ft)
12m (39.4ft)
10" 8m (26.2ft)
10m (32.2ft)
12m (39.4ft)
12" 7.6m (25.0ft)
9.1m (30.0ft)
10m (32.2ft)
12m (39.4ft)

For further information free to contact us.
