ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
Specifications
Brand Name :
Yokelink
Model Number :
OEM
Place of Origin :
Zhejiang,China
MOQ :
1000pcs
Price :
$0.1-$1.0
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per month
Delivery Time :
35-40days
Packaging Details :
Carton & Pallet
Material :
Carbon Steel
Application :
Side-of-Pole Installation
Finish :
ASTM A-153
Description

Spool Bolt

Yokelink spool bolt is an important component used in overhead power lines. There are single-upset and double-upset.Usually made of high - strength metal materials, it has excellent anti - tensile and anti - shear properties. This bolt is designed to connect and fasten various poleline hardware components, ensuring the stability and reliability of the power line system. With fine - threaded design, it can achieve a firm connection and is resistant to vibration and loosening.
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware

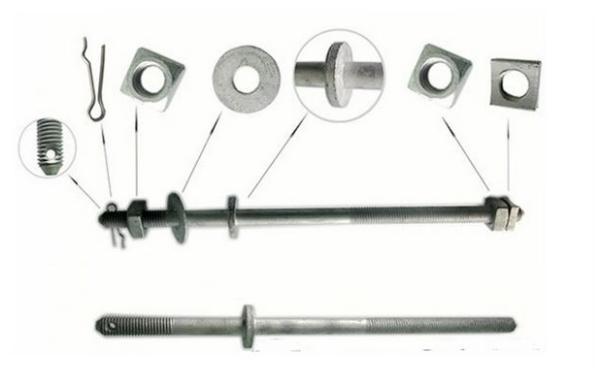

Spool Bolt Features

ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
6" thread length and cone pointed end
Overall length is 16-3/4"
Includes one square nut with cotter key
Rated cantilever load is 1,900 lbs.
Hot dip galvanized per ASTM A-153
Manufactured in compliance with ANSI C135.31
RUS listed, q - Bolt, double upset

Spool Bolt Specification:

ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware

Buy Spool Bolt from Yokelink

For utility neutral and secondary lines, the Yokelink brand offers ANSI class spool insulators along with the necessary clevises, racks, and spool bolts for installation. Screw and clamp-type porcelain and nylon wireholders are offered for service drops. All items are in compliance with applicable electric utility industry standards.
ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware ANSI C135.31 Double-Upset Spool Bolt For Poleline Hardware
