60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
60 V Crossarm Brace 18 Drop for Utility Power Line Fitting
Specifications
Brand Name :
Yokelink
Model Number :
OEM
Place of Origin :
China
MOQ :
100pcs
Price :
$8.0-$15.0
Payment Terms :
L/C, T/T
Supply Ability :
10000pcs per month
Delivery Time :
35-40days
Packaging Details :
Carton & Pallet
Usage :
Substation Fittings, Line Fittings
Material :
Carbon Steel
Type :
Link Fittings
Description

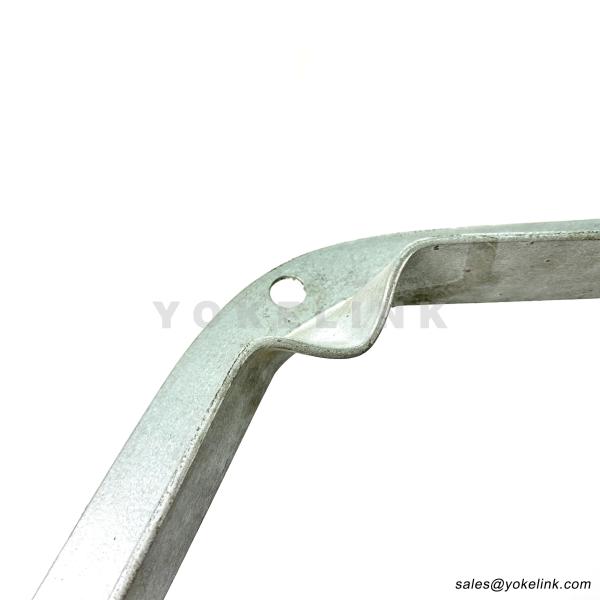

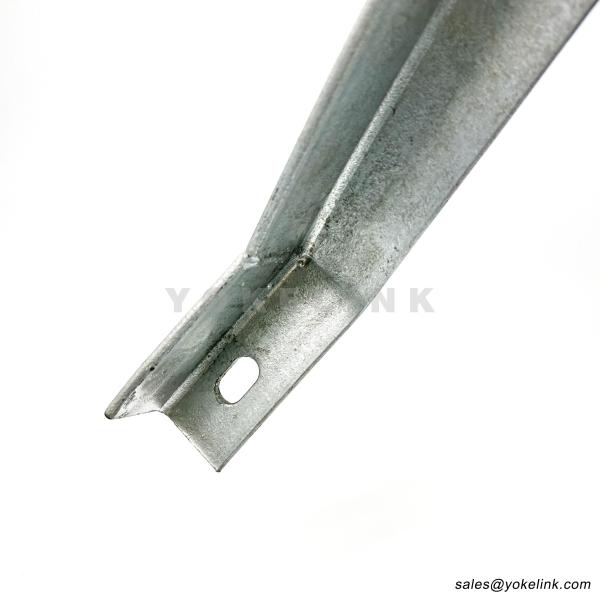

V Crossarm Brace

The V Crossarm Brace is a type of pole line hardware used to provide additional support to a wooden utility pole. It is designed to be installed at a 45-degree angle between the pole and the crossarm, forming a V shape. The brace is typically made of galvanized steel or aluminum and is available in various sizes to fit different pole and crossarm configurations.

V Crossarm Brace Features:

One piece brace is used to support heavy crossarms on utility poles.
Brace is attached to the underside of crossarms using 1/2" lag screws and is fastened to the pole using a 5/8" Machine Bolt.
Formed from AISI 1020 Steel.
Hot dip galvanized to meet ASTM Specification F2329.

V Crossarm Brace Specification:

V Crossarm Brace Corrosion Resistance and Durability

High-quality materials: usually made of corrosion-resistant materials, such as galvanized steel, aluminum alloy or stainless steel, etc. These materials have good corrosion resistance and can be used for a long time in harsh environmental conditions such as humidity, acid and alkali. They are not easy to rust or corrode, which prolongs the service life of the bracket.
Surface treatment: In addition to the selection of high-quality materials, the V-shaped cross arm bracket will also undergo various surface treatment processes, such as hot-dip galvanizing, spraying anti-corrosion paint, etc., to further enhance its corrosion resistance, enable it to adapt to different working environments, and reduce the cost of maintenance and replacement.

V Crossarm Brace Typical Application Scenarios

Scenario Function Specification example
10kV distribution network straight pole Support three-phase conductors and maintain phase-to-phase distance Horizontal arm length 1.5~2.5m, angle steel ∠63×6
Terminal pole / corner pole Bear conductor tension to prevent the pole from tilting Reinforced channel steel bracket, load ≥10kN
Coastal high humidity area Corrosion-resistant aluminum alloy bracket, with wind deflection device Surface anodizing treatment

Buy V Crossarm Brace From Yokelink

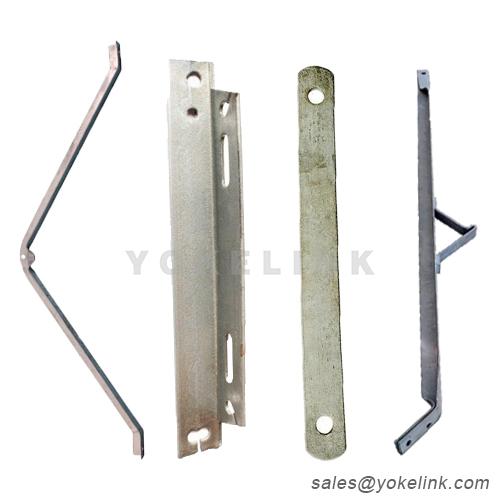

Pole and crossarm components offered by the yokelink brand includes braces, double-arming bolts, reinforcing plates and grid gains for crossarm support. Braces are offered in steel or Apitong wood and include V-type, side-arm and two-piece under arm and side mount styles.
