780～1550nm FC Expanded Beam Connector polarization-maintaining fiber
780～1550nm FC Expanded Beam Connector polarization-maintaining fiber
780～1550nm FC Expanded Beam Connector polarization-maintaining fiber
780～1550nm FC Expanded Beam Connector polarization-maintaining fiber
Specifications
Brand Name :
YOGEL
Model Number :
780-1550nm
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Wavelength (nm) :
780,795,850,980,1060,1310,1550
Connector type :
FC/APC
IL :
<0.5
Extinction ratio :
25
Maximum optical power :
500MW
Fiber type :
Single-mode, polarization-maintaining, photonic crystal fiber, etc.
Description

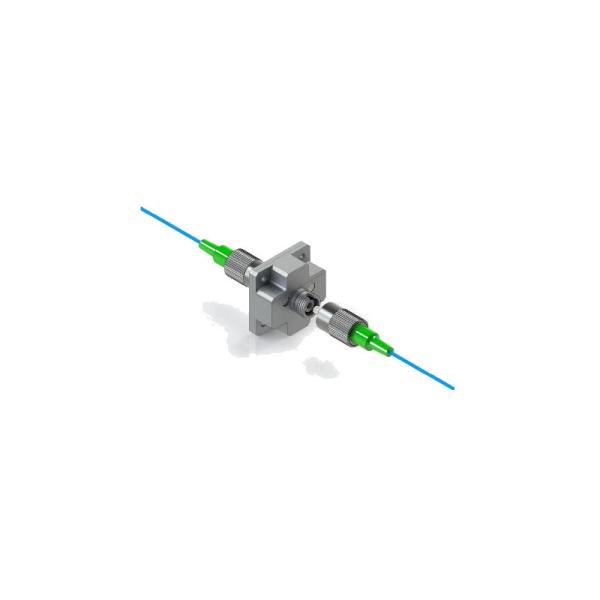

780～1550nm FC Expanded Beam Connector

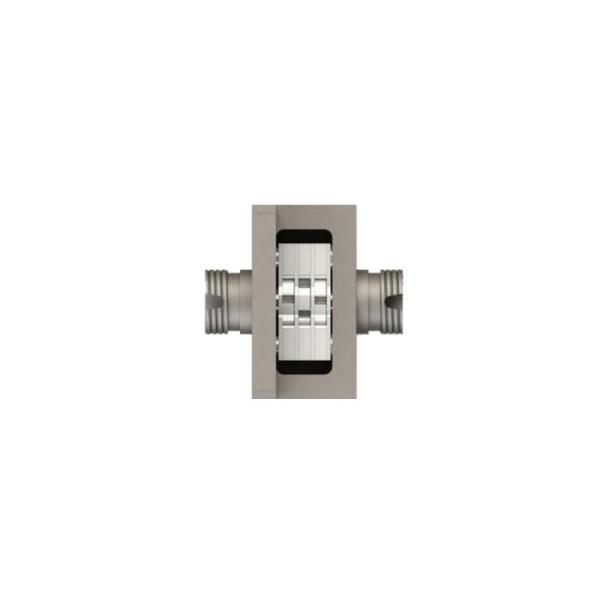

The FC expanded beam connector launched by Yogel uses an advanced micro-lens collimation process. Through the unique beam expansion technology, the light beam emitted by the optical fiber can achieve the perfect coincidence of the direction and position of the collimated light beam with the physical axis of the ceramic. This allows the connector to achieve plug-in interconnection through the pre-assembled FC closed sleeve, greatly improving the convenience of use.
At the same time, due to the use of collimation technology, we can coat the end face of the optical fiber or apply the End-cap process, thereby significantly improving the power tolerance of the optical fiber end face. The maximum power tolerance of its single-mode connector can reach 5W, solving the problem that traditional single-mode connectors cannot handle high-power applications.
Feature:

Non-contact, no end-face wear, long service life
Large spot interconnection, strong anti-fouling ability, no need for special cleaning
High power tolerance, the fiber end face can be end-capped and coated

Application:
Fiber Lasers
Quantum Communications
Fiber Optic Sensing
Fiber Optic Communication
Specification:
Item Unit index
Work distance nm 780,795,850,980,1060,1310,1550
IL dB <0.5(Typical<0.3)
Extinction ratio dB >25
RL dB >50
Maximum optical power mw 500(Optional)
Fiber type - Single-mode, polarization-maintaining, photonic crystal fiber, etc.
Fiber tensile strength N 5
Work temperature ℃ -40～+70
Storage temperature ℃ -55～+85
Size mm as follows
Packing way:

780～1550nm FC Expanded Beam Connector polarization-maintaining fiber
