1*128 Optical Switches 850&1310nm switching device
1*128 Optical Switches 850&1310nm switching device
1*128 Optical Switches 850&1310nm switching device
1*128 Optical Switches 850&1310nm switching device
1*128 Optical Switches 850&1310nm switching device
1*128 Optical Switches 850&1310nm switching device
Specifications
Brand Name :
YOGEL
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Wavelength (nm) :
850&1310 or 1260-1650
Operating bandwidth (nm) :
±15
Insertion Loss (dB) :
≤0.5(Typ 0.4)
PDL (dB) :
≤0.05
Power handling (mW) :
≤300
Repeatability (dB) :
≤±0.05
control method :
TTL+RS232 or TTL+RS485
life :
3×107
Description
Optical Switch 1*128 Optical Switches 850&1310nm switching device

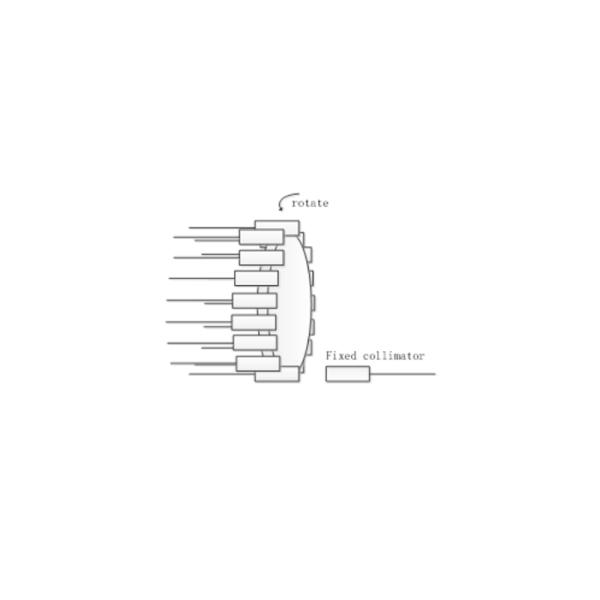

The 1×128 optical switch is a high-performance optical path switching device that supports dynamic optical path assignment between a single input port and 128 output ports. It adopts MEMS (Micro-Electro-Mechanical Systems), thermoelectric or mechanical technology to achieve low-loss and high-reliability optical signal switching, and is suitable for large-scale fiber optic networks, test systems and data centers

Feature:

 Extremely small size

 Customized original imported motor

 Multiple control mode combinations (TTL+RS232, TTL+RS485, USB)

Low insertion loss, high return loss, high reliability

Application:

 Light Sensing Multi-point Dynamic Monitoring System

 Optical Test System

LAN Multi-Light Source/Detector Auto Switching

1*128 Optical Switches 850&1310nm switching device
Package Dimension:

1*128 Optical Switches 850&1310nm switching device

Ordering Information:

1.Port: 1～32

2. Operating wavelength: 850nm; 1310nm; 1550nm; 1310/1550nm

3. Fiber type: SM9/125; MM50/125; MM62.5/125

4. Pigtail length: 50cm; 100cm; 150cm

5. Pigtail type: 0.25mm bare fiber; 0.9mm sleeve; 2mm; fiber array

6. Connector type: FC/PC; FC/APC; SC/PC; SC/APC; LC/PC; LC/APC; ST/PC

7. Control mode: TTL+RS232; TTL+RS485; USB

8. Shape package: 135×80×32mm; 135×64×32mm

Specification:

Wavelength (nm) 1310 or 1550 1064
Operating bandwidth (nm) ±15
Insertion Loss (dB) ≤0.5(Typ 0.4) ≤0.7(Typ 0.5)
PDL(dB) ≤0.05
Cross Talk(dB) ≥55
≥50
Return Loss(dB) ≥55
≥50
Power handling(mW) ≤300
Repeatability(dB) <±0.05
Switch Time (ms) 10

Lifetime (cycle) >1,000,000
Switch mode Latching or Non-latching
Operating Temperature(C) -5～+70
Storage Temperature(℃) -40～+85
Drive Voltage(V) 5±0.5 DC or 5V Pulse
Work Current (mA) <50
Fiber Type SMF-28e HI1060
Fiber length (m) Read order information
Dimension (LxMxH)(mm) (L)26.5×(W)13.4×(H)11
*Above specifications are for devices without the connectors.

*For devices with connectors,IL will be 0.3dB higher,RL will be 5dB lower

Electrical Drive:
Optical Path Electrical Drive Status Sensor
Pin1 Pin5 Pin6 Pin3-4 Pin7-8 Pin8-9
1-2 +V Pulse N/A N/A close close open
1-3 GND N/A N/A open open close
