1310-2050nm In-Line Polarization-Maintaining Isolator pm fiber
1310-2050nm In-Line Polarization-Maintaining Isolator pm fiber
Specifications
Brand Name :
YOGEL
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Center Wavelength (Ac) :
1550,1480,1310
OperatingWavelength Range :
λc±20
Maximum optical power (CW) :
500mw
Max.Insertion loss :
50/50
Description
1310-2050nm In-Line Polarization-Maintaining Isolator

Description:

The Polarization Maintaining Isolator is a two port micro-optic device built with PM panda fiber. The PM isolator features low insertion loss, high isolation, high extinction ratio and high reliability and stability. The device guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction. The device can be built with bare fiber, or 900um jacket cable. The PM Panda Fiber Isolator is widely used in amplifier systems, fiber optic systems and fiber lasers.

If you do not see a standard isolator that meets your needs, we welcome the opportunity to review your desired specification and quote a custom isolator. Requests for custom fiber pigtails, different wavelengths and handling power of operation or other specific needs will be readily addressed.

Feature:
  • Low insertion loss
  • High return loss
  • High extinction ratio
  • High isolation
  • High stability & Reliability
Application:
  • Fiber laser & Optical fiber amplifier
  • Test instrument & Communication system
  • Optical fiber sensing
  • Scientific research

Specification:

Parameter Unit Value
Rank Single stage Double stage Single stage Double stage
Central wavelength nm 2050,2000, 1950 1550,1480,1310
Operating wavelength range nm ±20
Typical peak Isolation @23°℃ dB 20 30 42 58
Minimum isolation @23℃ dB 18 28 28 45
Typical insertion loss@23℃ dB 0.8 1.0 0.4 0.5
Maximum insertion loss@23℃ dB 1.2 1.3 0.55 0.65
Minimum extinction ratio@23℃ Both axis working dB 18 20
Fast axis blocked dB 20 25
Minimum return loss(input/output) dB 50/50
Maximum optical power (CW) mW 500
Fiber type PM Panda fiber
Maximum tensile load N 5
Operating temperature ℃ 0~+70
Storage temperature ℃ -40~+85

*Above specifications are for devices without the connectors.

*For devices with connectors, Power Handling will be 1W, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*The PM fiber and the connector key are aligned to the slow axis.

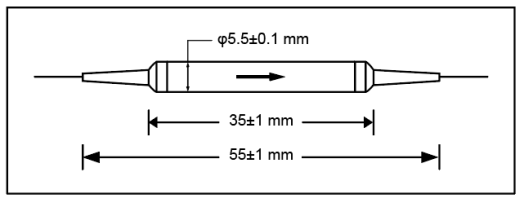

Package Dimensions:

1310-2050nm In-Line Polarization-Maintaining Isolator pm fiber

Order Information:

In-Line Polarization-Maintaining Isolator,

Wavelength, Stage, Working Axis, Package Dimension,

Fiber Type, Pigtail Diameter, Length, Connector, Power Handling

Example:

In-Line Polarization-Maintaining Isolator,

1550nm, Single Stage, Both Axis Working, φ5.5x35mm,

PM1550-XP, 0.9mm, 1m, FC/APC, 500mW
