1060-2050nm Isolator Polarization Beam Combiner Splitter
1060-2050nm Isolator Polarization Beam Combiner Splitter
Specifications
Brand Name :
YOGEL
Model Number :
1060-2050nm
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Wavelength (Ac) :
1064-2050nm
OperatingWavelength Range :
λc±20
Maximum optical power (CW) :
300mw
Max.Insertion loss :
50
Type reflection Isolation @23℃ (P3 to P1& P2) :
35
Minimum isolation 23℃ (P3 to P1& P2) :
18/28/25
Description
1060-2050nm Isolator Polarization Beam Combiner Splitter

Description:

The Isolator & Polarization Beam Combiner/Splitter can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to split light from an input fiber into two output fibers of orthogonal polarization states.

We offer a large selection of hybrid ISO+PBS/C device. These devices can handle powers rang from 300mW to 10W or others on request, and have center operating wavelengths ranging from 1064 nm to 2050nm.

If you do not see a standard Polarization Beam Combiner/Splitter that meets your needs, we welcome the opportunity to review your desired specification and quote a custom Polarization Beam Combiner/Splitter. Requests for custom fiber pigtails, different wavelengths and handling power of operation or other specific needs will be readily addressed.

Feature:
  • Low insertion loss
  • High return loss
  • High extinction ratio
  • High stability & Reliability
Application:
  • Erbium doped fiber amplifiers & Raman fiber amplifiers
  • Optical fiber sensing
  • Coherent telecommunication system
  • Polarization mode dispersion compensator

Specification:

Parameter Unit Value
Rank Single stage Double stage
Central wavelength nm 2000 1550,1310 1064 2000 1550,1310
Operating wavelength range nm ±20 ±20 ±5 ±20 ±20

Type reflection Isolation @23℃

(P3 to P1& P2)

 dB 35 35 35 51 51
Minimum isolation 23℃ (P3 to P1& P2) dB 18 28 25 30 45
Typical insertion loss23℃ dB 0.6 0.5 1.8 0.7 0.6
Maximum insertion loss@23℃ dB 1.2 0.7 2.1 1.3 0.8
Minimum extinction ratio@23℃ dB 18 22 22 18 22
Directivity dB 50
Minimum return loss dB 50
Maximum optical power(CW) mW 300
Maximum tensile load N 5
Fiber type P1 & P2 PM Panda fiber
P3 PM Panda fiber, SMF-28E or Hi1060
Operating temperature ℃ -5~+70
Storage temperature ℃ -40~+85

*Above specifications are for devices without the connectors.

*For devices with connectors, Power Handling will be 1W, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower.

*The PM fiber and the connector key are aligned to the slow axis

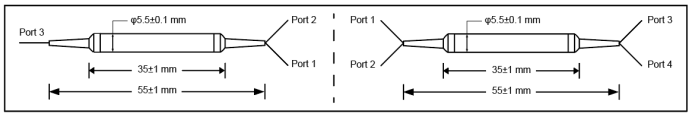

Package Dimensions:

1060-2050nm Isolator Polarization Beam Combiner Splitter

Order Information:

Hybrid ISO+PBS/C,

Wavelength, Stage, Package Dimension,

Fiber Type (Port 3), Pigtail Diameter, Length, Connector, Power Handling

Example:

Hybrid ISO+PBS/C,

1550nm, Single Stage, φ5.5x35mm,

PM Fiber for Port 3 and Slow Axis aligned to Port 1, 0.25mm, 1m, N/C, 1W
