450～2400m SM MM PM Fiber optic reflectors
450～2400m SM MM PM Fiber optic reflectors
450～2400m SM MM PM Fiber optic reflectors
450～2400m SM MM PM Fiber optic reflectors
Specifications
Brand Name :
YOGEL
Model Number :
450～2400m
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Wavelength (nm) :
350~5000nm
Connector type :
FC/APC FC/UPC
IL :
<0.5
Maximum optical power :
500MW
Fiber type :
Single-mode, polarization-maintaining, photonic crystal fiber, etc.
Maximum light power (mW) :
300
numerical aperture NA :
0.12
Description
350~5000nm fiber end face collimator/coupler

Fiber Bragg Grating Reflectors are engineered to reflect light back through the fiber when entering via connectors. These components can be used to create fiber interferometers or build low-power fiber lasers. They are particularly well-suited for accurately measuring back-reflection specifications in transmitters, amplifiers, and other optical devices.

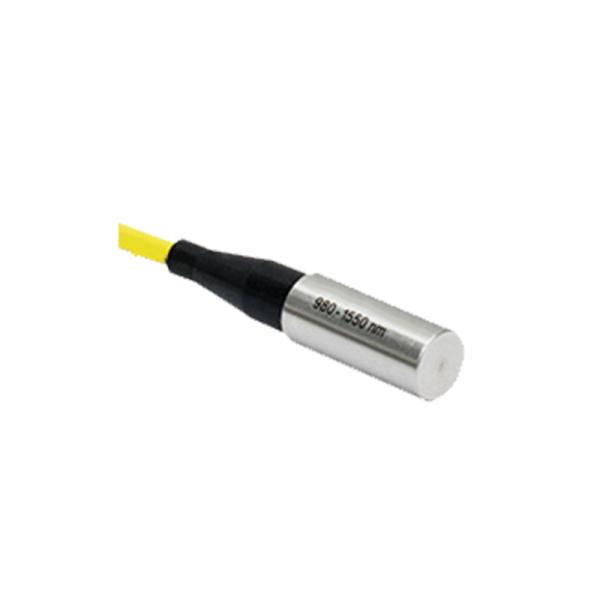

Our fiber returners are available in single-mode (SM), polarization-maintaining (PM), and multimode (MM) fiber variants. The fiber ferrule features a protective silver-coated layer that delivers an average reflectivity of ≥97.5% across the 450 nm to maximum wavelength range. Encased in a φ9.8mm (0.39-inch) stainless steel housing, the ferrule's end connects to either a 2.0mm narrow-pin connector (FC/PC, compatible with SM/PM/MM fibers) or an FC/APC connector (compatible with SM/PM fibers). For PM fibers, the narrow pin is precisely aligned with the fiber's slow axis. Each jumper cable includes a protective cap to prevent dust or contaminants from adhering to the ferrule's end.

Feature:
  • SM, PM or MM fiber reflectors
  • A silver film with a protective layer on one end
  • From 450 nm to the upper limit of the fiber wavelength, Ravg ≥ 97.5%
  • Available in versions with 2.0 mm narrow key FC/PC or FC/APC
  • Suitable for lasers with a maximum power of 300 mW
  • A wire one meter long
Application:
  • Fiber optic interferometers
  • fibre amplifier
  • Adjustable reflector
Specification:
project metric
Type of optical fiber SM600 780HP SM980-5.8-125 SMF-28 Ultra
wavelength coverage (nm) 630～780 780～970 980～1550 1260～1625
Modulation field diameter MFD (μm) 3.6～5.3@633nm 5.0±0.5@850nm 5.3～6.4@980nm

9.2±0.4@1310nm

10.4±0.5@1550nm
Insert loss Type. (dB) 4 3 2 0.6
cladding diameter (μm) 125±1.0 125±1.0 125±1.0 125±0.7
Coating diameter (μm) 245±15 245±15 245±15 242±5
numerical aperture NA 0.10～0.14 0.13 0.13～0.15 0.14
Type of connector FC/PC or FC/APC
Maximum light power (mW) 300
Tail fiber length (m) 1

polarization maintaining optical fibre

project metric
Type of optical fiber PM630-HP PM780-HP PM980-XP PM1550-XP
wavelength coverage (nm) 620～850 770～1100 970～1550 1440～1625
Modulation field diameter MFD (μm) 4.5±0.5@630nm 5.3±1.0@850nm 6.6±0.5@980nm 10.1±0.4@1550nm
Insert loss Max. (dB) 2.4 2.0 1.4 1.0
Minimum light extinction ratio (dB) 18 18 22 22
cladding diameter (μm) 125±2 125±2 125±1 125±2
Coating diameter (μm) 245±15
numerical aperture NA 0.12
Type of connector FC/PC or FC/APC
Maximum light power (mW) 300

multimode fibre

project metric
Type of optical fiber FG105LCA
wavelength coverage (nm) 400～2400
Fiber diameter (μm) 105+1/-3
cladding diameter (μm) 125+1/-2
Coating diameter (μm) 250±10
numerical aperture NA 0.22±0.02
Type of connector FC/PC
Maximum light power (mW) 300
Tail fiber length (m) 1
