350~5000nm fiber end face connector collimator/coupler fiber optic sensing

Specifications

Brand Name :

YOGEL

Model Number :

350~5000nm

Certification :

ISO9000

Place of Origin :

CHINA

MOQ :

Price :

negotiate

Payment Terms :

L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability :

100 pieces per month

Packaging Details :

Carton box

Wavelength (nm) :

350~5000nm

Connector type :

FC/APC FC/UPC

IL :

<0.5

Extinction ratio :

Maximum optical power :

500MW

Fiber type :

Single-mode, polarization-maintaining, photonic crystal fiber, etc.

Description

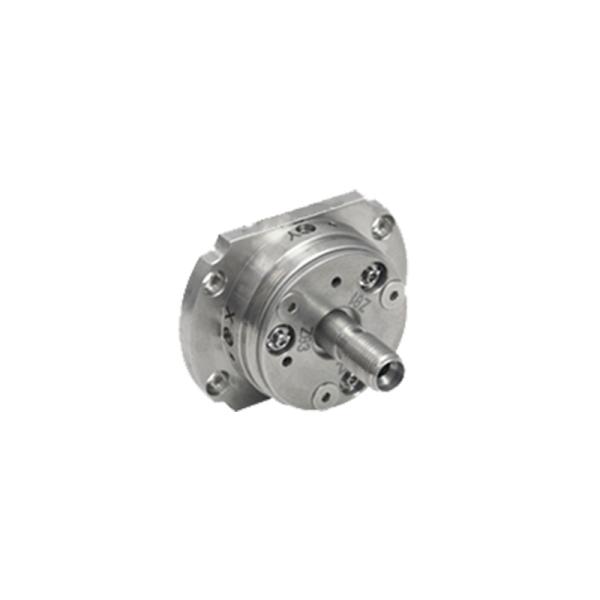

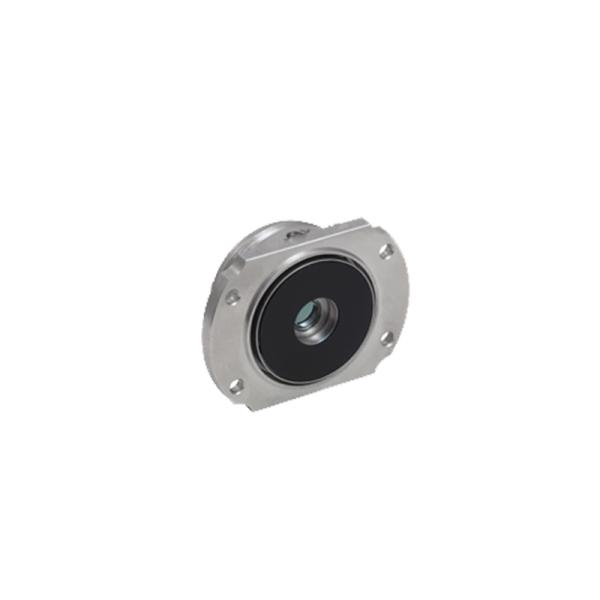

350~5000nm fiber end face collimator/coupler

Compact, ultra-stable fiber end collimators/couplers are user-friendly devices for optical coupling or output light collimation. Each unit incorporates an achromatic or aspherical lens with an effective focal range of 2.0-18.4 mm, featuring FC/PC, FC/APC, or SMA fiber connectors. For applications requiring short effective focal lengths (≤7.5 mm), we provide collimators/couplers with FC connectors compatible with both FC/PC and FC/APC interfaces. Their five-axis adjustment system works in tandem with short focal lengths, ensuring negligible sensitivity to off-axis inputs.

Feature:

Super stable micro positioning alignment with five degrees of freedom plus rotation adjustment
Delayed and scarce
FC/PC and FC/APC versions are compatible with 2.1 mm wide key and 2.0 mm narrow key joints, SMA collimator/coupler for SMA905 joints
Use aspherical or achromatic lenses
Suitable for single mode (SM), multi mode (MM) and polarization maintaining (PM) optical fibers
The film enhancement options include visible, near-infrared and mid-infrared wavelength ranges
Effective focal length 2.0～18.4mm

Application:

Fiber Lasers
Quantum Communications
Fiber Optic Sensing
Fiber Optic Communication

Specification:

project	metric
model	FP-C	FPP-C	FPA-C	FPS-C	FP-M	FPP-M	FPA-M	FPS-M
Type of lens	achromatic doublet lens				Molded aspherical lens
Type of connector	FC/PC& FC/APC	FC/PC	FC/APC	SMA	FC/PC& FC/APC	FC/PC	FC/APC	SMA
Effective focal length EFLs (mm)	4,7.5	10,15	10,15	4,7.5	2,4,4.6,7.5	11,15.3,18.4	2,4,4.6,7.5,11,15.3,18.4	2,4,4.6,7.5,11,15.3,18.4
