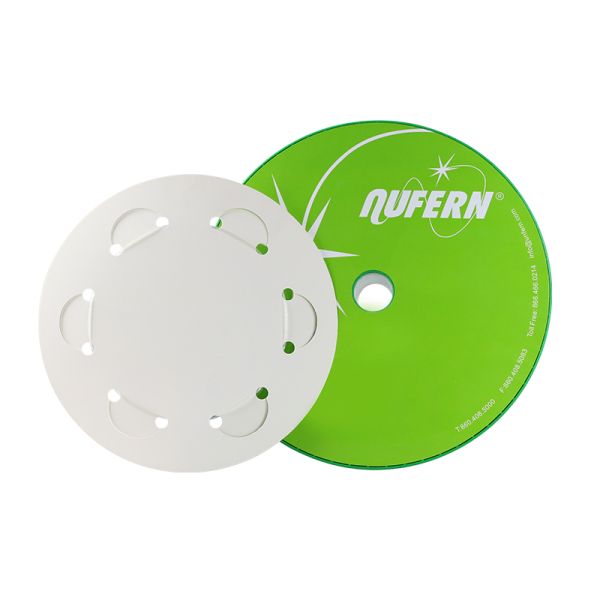

Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Specifications
Brand Name :
Coherent
Model Number :
PM-S350-HP
Certification :
ISO9000
Place of Origin :
The USA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Product name :
PM fiber
Operating Wavelength :
350 – 460 nm
Numerical aperture (NA) :
>0.12
Cutoff :
315 ± 25 nm
Mode Field Diameter (Gaussian) :
2.3 µm @ 350 nm (nominal)
Coating Material :
Acrylate
Description
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
Pure Silica Core Polarization Maintaining Fibers for UV-VIS Wavelengths Panda type PM-S350-HP
We supply Nufern PM-350-HP,PM-460-HP,PM460-HP,PM60-HP,PM-780-HP ,PM1550-XP ,PM980-XP,PM1300-XP and so on fibres.
Coherent’s industry leading short wavelength pure silica core polarization maintaining fibers have superior waveguide,
radiation, and mechanical properties, enabling a large variety of applications in diverse markets. High consistency and
extreme end-to-end control of optical properties provide particular advantage in spectrographic and frequency sensitive
applications. The pure silica core fiber is optimum for demanding applications in the UV and visible spectrum requiring
ultra-low attenuation over longer lengths and where resistance to radiation-induced damage and color center formation are
critical. Extended range XP and XP+ versions of PM-S405 offer the broadest operational wavelength range with minimal lot
to lot beam divergence variation on the XP+ version.
Feature:
• Laser pigtailing
• Spectroscopy
• Sensors
• Bio-medical
• Metrology
Application:

• Panda-style configuration — Superior optical performance, intrinsically good radiation performance
• Tight specifications — Highly deterministic results, highest product yield
• High proof test — Low risk of mechanical damage and failure
• High fatigue failure resistance — Longest service life
• Pure silica core — Resistance to radiation-induced damage and color center formation

Specification:

Optical Specifications PM-S350-HP PM-S405-XP PM-S405-XP+
Operating Wavelength 350-460 nm 400-680 nm 400-680 nm
Core NA 0.120 0.120 0.110
Mode Field Diameter(Gaussian)

Cutoff		 2.3μm@350 nm(nominal)

315±25nm		 3.3±0.5μm@405nm
4.6±0.5μm@630 nm
380±20 nm		 3.5±0.5μm@405 nm
7.5±1.0μm@630 nm
380±20 nm
Core Attenuation N/A ≤30.0 dB/km @630 nm
≤30.0 dB/km @488 nm		 ≤50.0 dB/km@405 nm
≤30.0 dB/km @630 nm
≤30.0 dB/km @488 nm
Beat Length (nominal) 1.5 mm @350 nm N/A N/A
Normalized Cross Talk N/A ≤-30.0 dB at 10m @630nm ≤-30.0 dB at 10 m @630nm
Birefringence

Geometrical&Mechanical
Specifications

Cladding Diameter
Core Diameter
Coating Diameter
Coating Concentricity
Core/Clad Offset
Coating Material
Operating Temperature Range
Prooftest Level		 nominal 2.5×10-4




125.0±1.0μm
2.5μm
245.0±15.0μm
<5.0μm
≤0.50 μm
Acrylate
-40 to 85℃
≥200 kpsi(1.4 GN/m²)		 nominal 2×10-4




125.0±1.0 μm
3μm
245.0±15.0μm
<5.0μm
≤0.60 μm
Acrylate
-60 to 85℃
≥200 kpsi(1.4 GN/m²)		 nominal 2×10-4




125.0±1.0μm
3μm
245.0±15.0 μm
<5.0μm
≤0.60 μm
Acrylate
-60 to 85℃
≥200 kpsi(1.4 GN/m²)
