Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector
Specifications
Brand Name :
YOGEL
Model Number :
4.8mm
Certification :
ISO9000
Place of Origin :
CHINA
MOQ :
1
Price :
negotiate
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
100 pieces per month
Packaging Details :
Carton box
Wavelength (nm) :
400nm to 2500nm (Low OH)
Numerical Aperture (NA) :
0.22± 0.02
Min.Attenuation (RSS Wavelength) :
20 dB
Core / Cladding :
Pure Silica / Fluorine-Doped Silica
Both Ends :
FC UPC
Available in Lengths :
20m
Description
Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

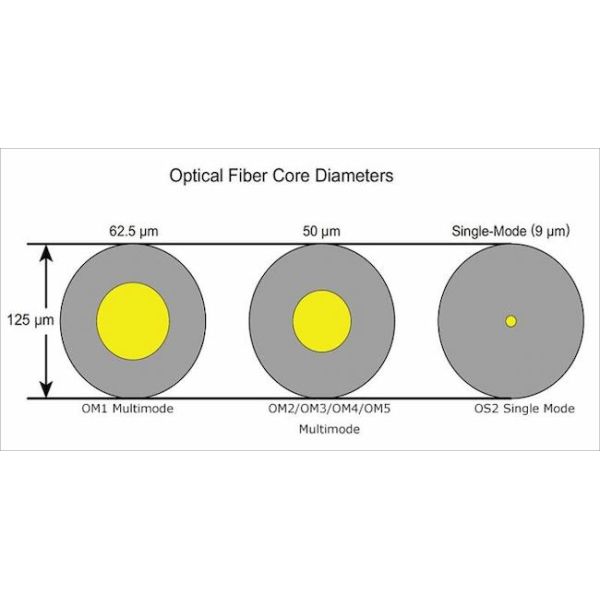

Multimode fiber optic patch cord: are designed for shorter distance transmission. They have a larger core diameter (typically 50 or 62.5 microns) compared to single mode patch cord. Multimode fiber jumper are often utilized in LAN (Local Area Network) environments, campus networks, and short-distance communications within buildings.

Feature:
  • Numerical Apertures from 0.10 to 0.50 - Compatible with majority of fiber-coupled, diode-laser packages
  • Cables Available for Wavelengths from 190 nm to 2500 nm
  • Available in Lengths up to 20m*
  • SMA905 Connectors on Both Ends
  • Ø0.9 mm, Ø2.0 mm, Ø3.0 mm,Ø4.8 mm,, Ø5.0 mm, or 6.0mm Outer Jacket available (12-color options)
  • Custom Cables Available

*We have some Ø3.0mm & Ø2.0mm specialty cables in store, so no need to insert bare fiber into the tubing, thus any length will be available. Please contact us for details.

Application:
  • Spectroscopy
  • Illumination
  • Power/Beam Delivery
  • LED Energy Transmission
  • Medical Instruments
  • Optogenetics
  • Fiber coupled diode lasers
  • Couplers and pump combiners
  • Coherent Multi-Mode Fibers: (Only list part of this series)

Model No.Core DiameterNACladding DiameterCoating DiameterWavelength RangeOH Level
MM-S105/125-12A105.0 ± 3.0 μm0.120 ± 0.020125.0 ± 2.0 μm245.0 ± 15.0 μm800 – 1600 nmLow
MM-S105/125-15A105.0 ± 3.0 μm0.150 ± 0.020125.0 ± 2.0 μm245.0 ± 15.0 μm800 – 1600 nmLow
MM-S105/125-22A105.0 ± 3.0 μm0.220 ± 0.020125.0 ± 2.0 μm245.0 ± 15.0 μm800 – 1600 nmLow
MM-S200/220-12A200.0 ± 4.0 μm0.120 ± 0.020220.0 ± 3.0 μm320.0 ± 15.0 μm800 – 1600 nmLow
MM-S200/220-22A200.0 ± 4.0 μm0.220 ± 0.020220.0 ± 3.0 μm320.0 ± 15.0 μm800 – 1600 nmLow
MM-S200/240-22A200.0 ± 4.0 μm0.220 ± 0.020220.0 ± 3.0 μm320.0 ± 15.0 μm800 – 1600 nmLow
MM-S400/440-22A400.0 ± 9.0 μm0.220 ± 0.020440.0 ± 8.0 μm625.0 ± 25.0 μm800 – 1600 nmLow

MM-S600/660-22FA
1362303

600.0 ± 12.0 μm0.220 ± 0.020660.0 ± 12.0 μm875.0 ± 30.0 μm700 – 2200 nmLow

  • Coherent NuBEAM series Beam Delivery Fibers: (Only list part of this series)

Model No.Core DiameterNASecond Cladding DiameterSecond Buffer DiameterWavelength RangeOH Level
BD-S50/70/360-STN51.0 ± 1.0 μm0.220 ± 0.020367.5 ± 7.5 μm650 ± 32 μm800 – 2100 nmLow
BD-S100/130/480-STN102.00 ± 2.00 μm0.220 ± 0.020490 ± 10 μm750 ± 37 μm800 – 2100 nmLow
BD-S150/180/660-STN153.00 ± 3.00 μm0.220 ± 0.020673 ± 13 μm1100 ± 55 μm700 – 2200 nmLow
BD-S200/220/360-STN204.0 ± 4.0 μm0.220 ± 0.020367.5 ± 7.5 μm650 ± 32 μm800 – 2100 nmLow
BD-S300/330/360-STN306.0 ± 6.0 μm0.220 ± 0.020367.5 ± 7.5 μm650 ± 33 μm800 – 2100 nmLow
BD-S400/440/660-STN408.0 ± 8.0 μm0.220 ± 0.020672.5 ± 12.5 μm1100 ± 55 μm800 – 2100 nmLow
BD-S600/660/720-STN612.00 ± 12.00 μm0.220 ± 0.020735 ± 15 μm1100 ± 55 μm700 – 2200 nmLow
BD-S1000/1100-STN1020.0 ± 20.0 μm0.220 ± 0.020N/A1400 ± 70 μm800 – 2100 nmLow

Ordering Information:
  • Connector End A-Connector End B, Connector Type
  • Fiber Type: Wavelength Range, Core/Cladding Diameter, Core NA, Coating Diameter, Coating Material, Attenuation Plot, etc.
  • Furcation Tubing Type
  • Cable Length
