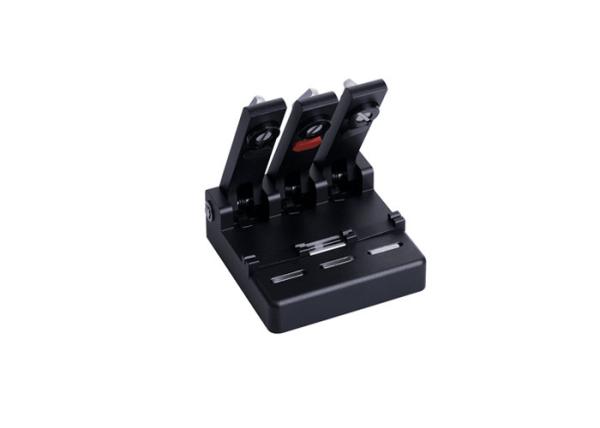

OTDR Testing Mechanical 10mm 0.1dB Fiber Aligner
OTDR Testing Mechanical 10mm 0.1dB Fiber Aligner
Specifications
Brand Name :
Yogel
Model Number :
MA-SF-250/900
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/month
Delivery Time :
3-7days
Packaging Details :
carton
Product name :
Mechanical Aligners
Item Number :
MA-SF-250/900
Color :
Black
Fiber type :
Simplex
Insertion loss :
0.1dB （filled with matching gal）
Description

MA-SF-250/900 Mechanical Aligners Used in Factory & Field testing or with OTDR testing

Description

Mechanical Aligners adopts high precision V-Groove to position and align two optical fibers. It is mainly applied to the coupling connection of bare fibers in fiber testing, experiment, construction of fiber optic cable. It features with simple structure, reliable performance and easy operation.

Features

* Temporary fiber connection

* Two adjustable positioners applied to all kinds of fiber coating

Application

* Fiber Testing, like OTDR testing, bare fiber reel testing, fiber optic cable testing, etc.

Specifications

Applicable Fibers SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF
Fiber Diameter coating diameter: 0.25~0.9mm, cladding diameter: 125um
Average Loss 0.5dB (SM)
Cleave Length 10mm
Dimension 80(L)*80(W)*25(H)mm
Net Weight 370g
Relative Humidity 90% (40°C, non-condensing)
Operating Temperature 0~+40°C
Storage Temperature -20~+60°C
