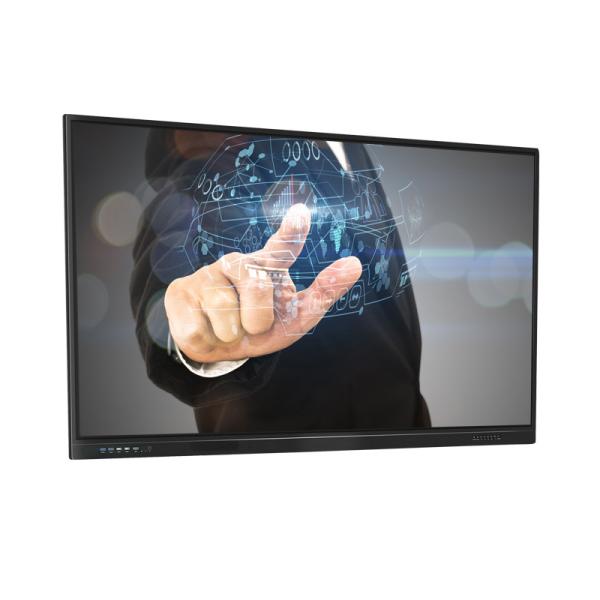

School Conference Touch Screen Interactive Whiteboard / Electronic Touch Screen Board
School Conference Touch Screen Interactive Whiteboard / Electronic Touch Screen Board
School Conference Touch Screen Interactive Whiteboard / Electronic Touch Screen Board
School Conference Touch Screen Interactive Whiteboard / Electronic Touch Screen Board
Specifications
Certification :
ISO 9001, ISO14001, FCC
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiated price
Delivery Time :
Shipped in 2~3 days after payment
Payment Terms :
T/T
Name :
Touch Screen Teaching Board
Screen size :
65",70",75",82",86" Optional
Use environment :
Classroom, meeting room, family
CPU :
intel i3, i5, i7
Memory :
2G
Resolution :
1920(H)x1080(V)
ROM :
32GB
Contrast Ratio :
1000:1
Operating systems :
Android 6.0
Description

School Conference Windows Network Smart Electronic Teaching Screen Kiosk Interactive Whiteboard

1. Product description

  • Smart writing precise identification,Multi- screen interaction clear contrast
  • Mirrorcast bidirectional operation ,Powerpoint Easy to demonstrate
  • Annotated in any position flexible record,QR code sharing information synchronizatlon
  • Rich software application enjoy the convenience
  • personalized welcome interface Multiple conference themes
  • Multipurpose & Eight machine combinational
  • projector,electronic Whiteboard,Teleconference equipment Sound system ,display ,TV , Computer , Advertising machine

2. Specification

Android system hardware configuration
Main chip model MSD648(Glare 648 scheme)
Central processing unit(CPU) i3, i5, i7
Running Memory(RAM) 2GB
System Memory(ROM) 32GB
Kernel Version Android 6.0

Mainboard input/out interface configuration
USB Input 4 channels(Type-A USB2.0 x4channels,USB3.0 x1channel)
USB Output 2 channels(Type-B For HDMI Touch Out)
Audio input

a. 1 channel VGA audio input

b. 1 MIC external microphone input
Audio output

a. 1 channel digital audio coaxial

b. 1 channel analog headphone

c. 1 channel analog AV Audio Out
Extension ports 1 channel (standard TF plug)
TV Input 1 channel (75Ω IEC standard F)
Network input

a. 1 channel standard RJ45 Ethernet interface

b. Wi-Fi
Centralized control interface 1 channel RS232 Uart
Video Input

a. 1 * VGA

b. 3 * HDMI

c. 1 * AV

d. 1* YPbPr

Electrical Performance of the Whole Machine
Power Input AC 180-240V 50/60Hz

Power consumption of whole machine (standard mode does not include computers

65Inches: 240W(DLED)

70Inches: 270W(DLED)

75 Inches: 320W(DLED)

82 Inches: 350W(DLED)

86Inches: 350W(DLED)
Speaker Power

Stereo hybrid dual-channel CLASS-D power amplifier output, rated power: 2x10W

(L+ R / 8Ω)of THD+N≤10%@1KHz(Audio Input:0.5VRMS)

OPS module load output parameters
OPS Supply voltage 17-21V DC
Rated output current 1.0A - 7.0A
Peak output current *8.0A
Rated load power 135W
Support interface type OPS-C 80-pin blind plug JAE interface that complies with Intel's open pluggable specification
External module size L196*W180*H33~42mm(33mm recommended)
