96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter
96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter
Specifications
Model Number :
TP-96 AC V
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$1-5 / piece
Accuracy Class :
2.0
Measuring Range :
0-600V
Dimensions :
96x96
Display Type :
Analog Only
Operating Temperature :
0-40℃
size :
96x96mm
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
TP-96 Moving Iron AC Voltmeter
96 Moving Iron AC Voltmeter for 3-phase current, voltage, and frequency measurement applications.
Product Specifications
  • Available voltage ranges: 30V, 50V, 75V, 100V, 120V, 150V, 200V, 250V, 450V, 500V, 600V
  • For voltages exceeding 600V, meters can be connected with potential transformers (secondary voltage 100V)
96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter 96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter

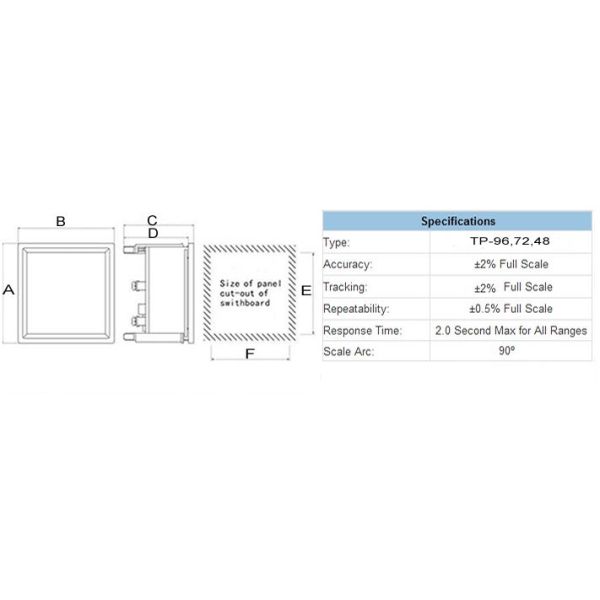

Dimensions (millimeters)
Model Case Dimension A Case Dimension B Panel Cutout C Panel Cutout D Dimension E Dimension F
TP-96 96.5 96.5 69.4 64 91 91
TP-72 71.8 71.8 69.4 64 67.5 67.5
TP-48 48.3 48.3 69.4 64 44.2 44.2

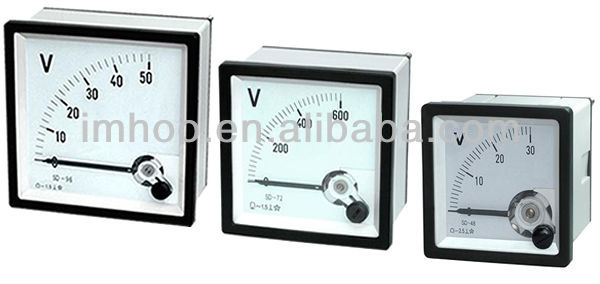

Model Specifications
Model Moving Coil Ammeter Moving Coil Voltmeter Moving Iron Ammeter Moving Iron Voltmeter
AC/DC AC/DC AC/DC AC/DC
TP-96 - / V V / V V / - V / -
TP-72 - / V V / V V / - V / -
TP-48 - / V V / V V / - V / -
96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter 96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter 96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter 96 Moving Iron AC Voltmeter 3 Phase Current Voltage Frequency Meter
