PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
PN107 Auto Digital Clamp Meter CAT II 600V AC DC Voltage LCD True RMS 4000 Counts
Specifications
Model Number :
PN107
Brand Name :
ANENG
Place of Origin :
Guangdong, China
MOQ :
10 pieces
Price :
$7.20 / piece
Accuracy Class :
Class 0.1
Measuring Current Range :
AC:0A~600A
Measuring Voltage Range :
0V~600V
Parameters Measured :
AC Current, AC Voltage, Capacitance, DC Voltage, Diode, Resistance
Application :
Household Use, Industrial Use
Dimensions :
194 x 50 x 30mm
Feature :
Standard
Low Battery Indicator :
Yes
Material :
ABS
Max. AC Current :
600 A
Max. AC Voltage :
600V
Max. DC Voltage :
600 V
Measuring Capacitance Range :
0~4mF
Measuring Resistance Range :
0Ω~40mΩ
Operating Temperature :
0~40 ℃
Description

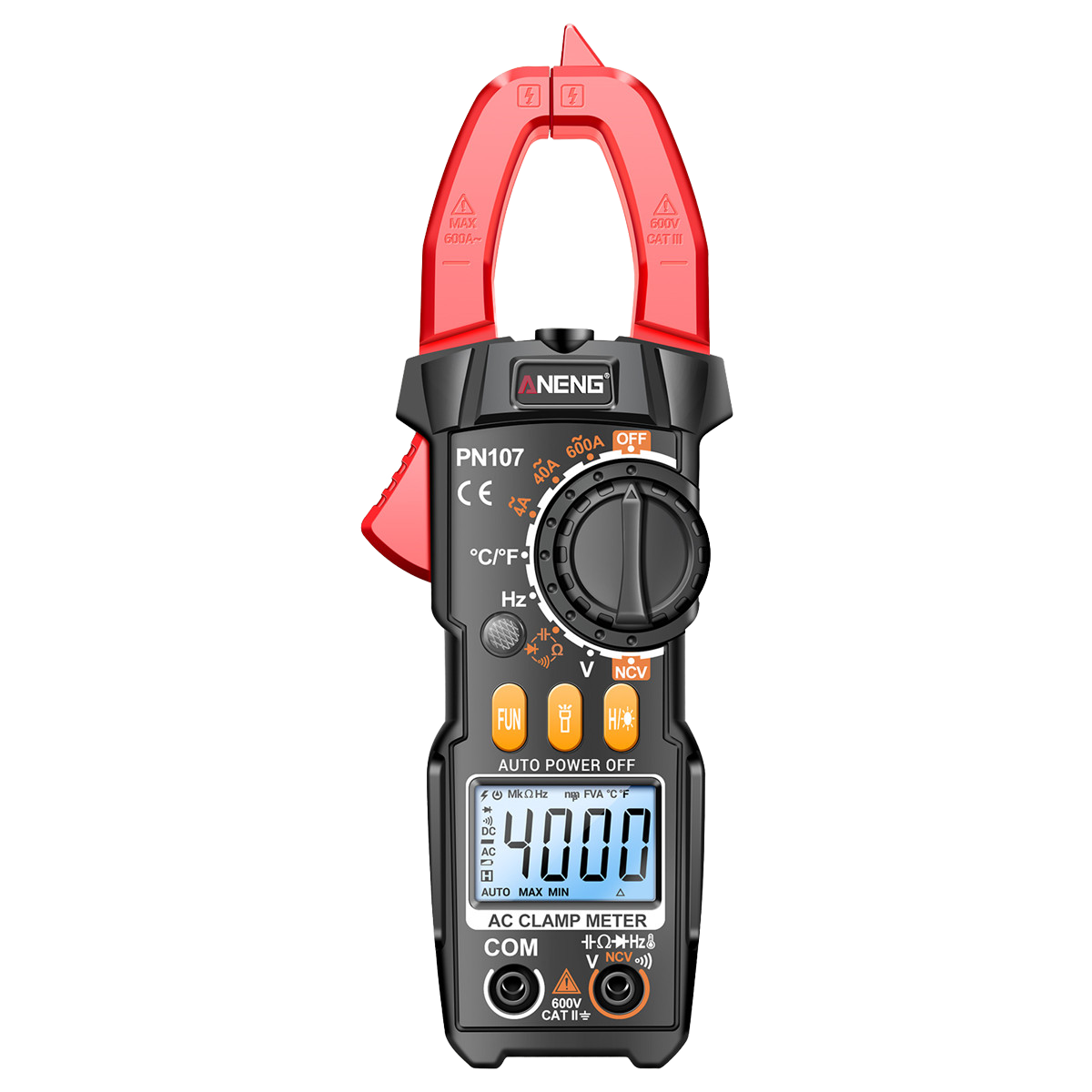

ANENG PN107 Auto Digital Clamp Meter
CAT II 600V AC/DC Voltage Multitester with LCD True RMS 4000 Count Electrical Multimeter Tester
Product Specifications
Parameter Specification
Measuring Current Range AC: 0A~600A
Measuring Voltage Range 0V~600V
Measuring Resistance Range 0Ω~40mΩ
Measuring Capacitance Range 0~4mF
Operating Temperature 0~40 ℃
Dimensions 194 x 50 x 30mm
Max. AC Voltage 600V
Max. DC Voltage 600V
Max. AC Current 600A
Material ABS
Place of Origin China
Key Features
Comprehensive Measuring Capability
CAT II 600V safety rated clamp meter measures AC/DC voltage, capacitance, continuity, resistance, diode tests, and frequency. Accurately measures AC current up to 600A in accordance with IEC 61010 international standards.
Wide Measurement Range
Versatile measuring ranges suitable for household and industrial applications. Features four different current measurement ranges including AC: 0A~600A, DC: 0A~300A, 400A~600A, and continuity testing.
True RMS Technology
True-RMS technology delivers accurate and consistent readings even with distorted waveforms, making it ideal for nonlinear loads and power supplies. Provides reliable data unaffected by harmonic distortion.
Versatile Applications
Compact design (194 x 50 x 30mm) with ABS construction makes it easy to handle and store. Suitable for both household and industrial electrical applications with low battery indicator and 0~40℃ operating range.
Professional Quality
ANENG brand quality with 4000 count resolution and multifunctional electrical testing capabilities. Essential tool for electricians, technicians, and hobbyists requiring accurate measurements.
Parameters Measured
  • AC Current
  • AC Voltage
  • Capacitance
  • DC Voltage
  • Diode Testing
  • Resistance
Manufacturer Information
Specializing in battery testers, analog and digital multimeters, panel meters, lux meters, digital sound meters, and cable testers. Annual production capacity of 800,000 units used in communication, power distribution, industrial applications, and automatic control systems.
Quality certified with CMC Measuring Apparatus license for domestic sales and export quality licenses. Committed to continuous improvement and customer satisfaction through innovative products and excellent service.
