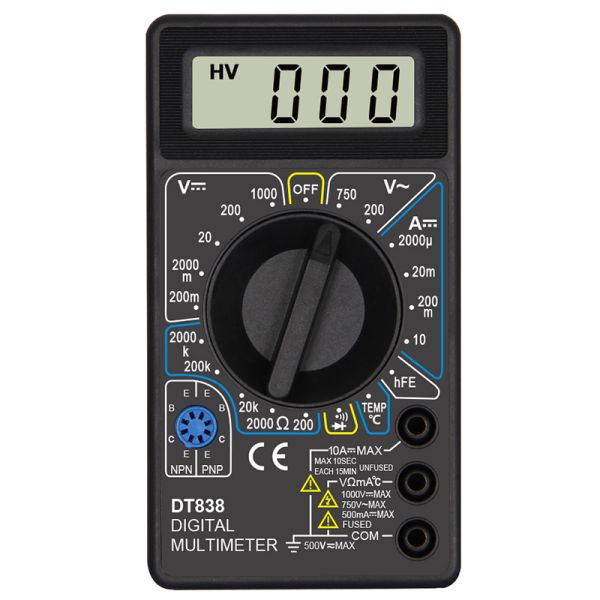

Pocket Handheld Digital Multimeter With Class 0.1 Accuracy And Temperature Test Function
Pocket Handheld Digital Multimeter With Class 0.1 Accuracy And Temperature Test Function
Pocket Handheld Digital Multimeter With Class 0.1 Accuracy And Temperature Test Function
Pocket Handheld Digital Multimeter With Class 0.1 Accuracy And Temperature Test Function
Specifications
Model Number :
830D
Brand Name :
Imhoo
Place of Origin :
Jiangsu, China
MOQ :
1000 pieces
Price :
$1.50-2.50 / piece
Accuracy Class :
Class 0.1
Measuring Current Range :
2000u-10A
Measuring Voltage Range :
200m-1000V
Parameters Measured :
Temperature (K), DC Current, AC Voltage
Application :
Industrial Use, Household Use
Dimensions :
126 x 70 x 24mm
Material :
Plastic, PVC, ABS
Measuring Inductance Range :
/
Measuring Resistance Range :
200-2000KΩ
Operating Temperature :
0~40℃
color :
black/yellow
HS Code :
9030311000
Diode: Test :
yes
Continuity Buzzer :
yes
Transistor Test :
yes
Square wave output :
yes
LCD size :
49x16mm
Max display :
1999
Low battery indication :
yes
keyword :
handheld digital multimeter
Description
Pocket Size 832/830D Handheld Digital Multimeter
Product Overview
  • Simple and easy to use, suitable for beginners
  • Removable battery cover for convenient maintenance
  • Built-in temperature test function
Technical Specifications
Function Range Accuracy
DC Voltage 200m-2000m-20-200-1000V ±0.8%
AC Voltage 200-750V ±1.0%
DC Current 2000u-20m-200m-10A ±2.0%
Temperature -20-1000℃ ±1.2%
Resistance 200-2000-20K-200-2000KΩ ±1.0%
Model Comparison
Feature DT830A DT830B DT831 DT832 DT838
Operation Mode V
Display Count V
DC Voltage V
AC Voltage V
DC Current V
Resistance V
Continuity Buzzer V V V
Diode Test V V V
Transistor Test V V V
Temperature V
Battery Test V
Square Wave V
General Specifications
Low Battery Indication: Yes
Overload Protection: Yes
LCD Display Size: 49×16mm
Power Supply: 6F22 9V Battery
Product Dimensions: 124×70×26mm
Product Weight: Approximately 105g
Included Accessories
Test leads, battery, user manual, thermocouple (included with DT838 model only)
