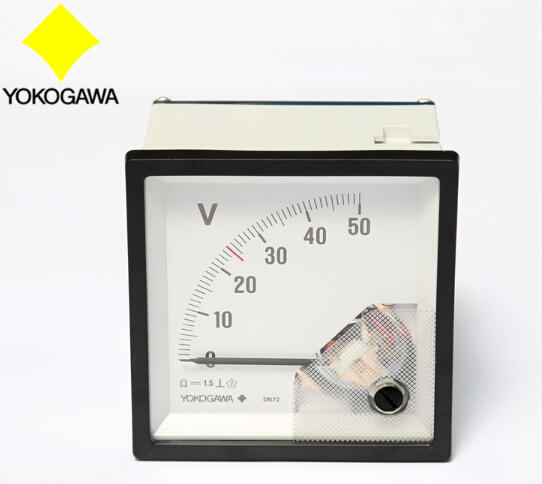

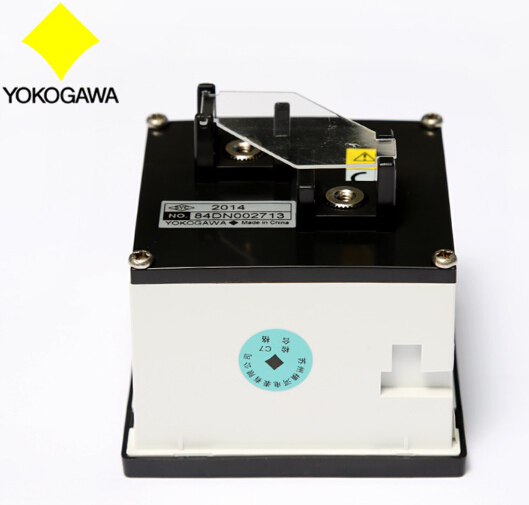

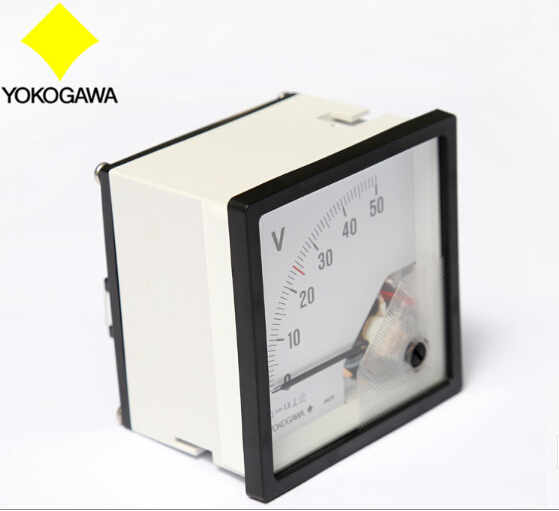

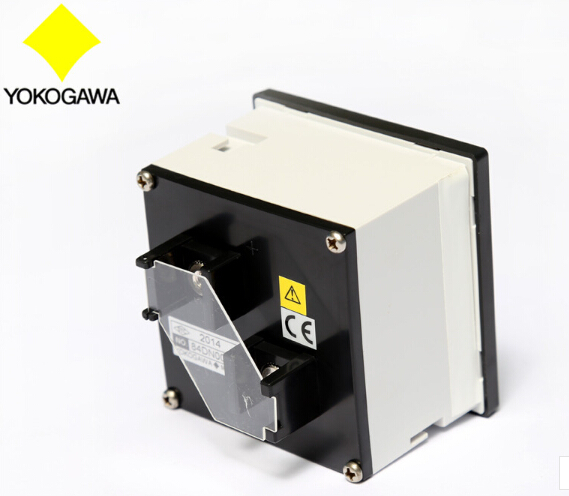

96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
Specifications
Model Number :
DN96A ACV
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$1-10 / piece
Accuracy Class :
1.5
Measuring Range :
can be customized
Dimensions :
96*96
Display Type :
Analog Only
Operating Temperature :
0~40
Brand :
YOKOGAWA
keyword :
voltmeter ammeter
Bezel color :
black
Accuracy :
1.5
Pointer type :
lance type
Bezel Material :
ABS resin
Window Material :
PMMA
Case Material :
ABS resin
Base Material :
ABS resin
OEM :
yes
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
YOKOGAWA 96x96 Analog Voltmeter Ammeter
High-precision YOKOGAWA 96x96 analog voltmeter and ammeter for industrial electrical measurement applications.
96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
Technical Specifications
Item DN96 DN72
Suspension type Taut band Pivot & jewel
Pointer type Lance type (black color) Lance type (black color)
Bezel color Black Black
Front cover dimensions 96x96mm 72x72mm
Scale length 95mm 61mm
Full scale deflection angle 90°±2°
Meter mounting position Vertical
Insulation resistance Between electronic circuit and the case: 500V DC/More than 10MΩ
Between current circuit and voltage circuit: 500V DC/More than 5MΩ
Dielectric strength Linemax: 500V (Ammeters only)
Between electronic circuit and the case: 2000V AC for 1 minute
Operating temperature range 0~40℃
Operating Humidity range 30~75%RH
Storage temperature range -10~50℃
Storage Humidity range 25~80%RH
Case Material Case & Base material: ABS resin (Nonflammable)
Window material: PMMA (Anti-static process)
Bezel material: ABS resin (Nonflammable)
Meter Weight DC A(1mA): Approx 160g | Approx 115g
AC A(AVE): Approx 160g | Approx 115g
AC A(I/V): Approx 155g | Approx 115g
WATT(3φ3W): Approx 320g | Approx 115g (TRD BOX 460g)
VAR(3φ3W): Approx 320g | Approx 115g (TRD BOX 460g)
P.F.(3φ3W): Approx 320g | Approx 115g (TRD BOX 460g)
FRQ: Approx 172g | Approx 125g

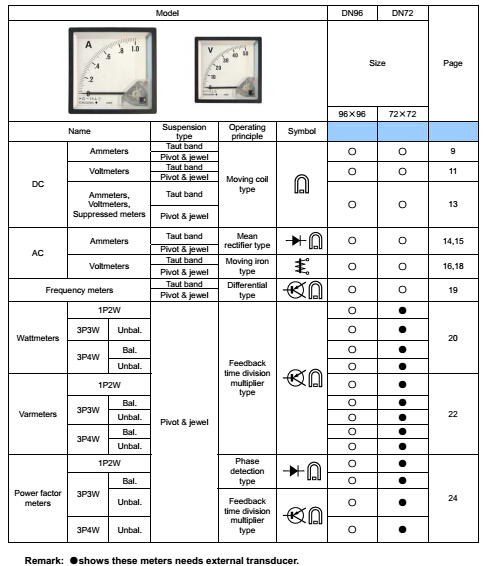

Product Comparison
96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement 96x96mm YOKOGAWA Analog Voltmeter And Ammeter For Industrial Electrical Measurement
