Specifications
Model Number :
PZEM-061
Brand Name :
ymiho
Place of Origin :
Wuxi, China
MOQ :
100
Price :
$6.20-7.80 / piece
Accuracy Class :
1.0
Measuring Current Range :
0-100A
Measuring Voltage Range :
80~260VAC
Dimensions :
89.6X49.6X24.4mm
Operating Temperature :
10~65
Test power :
0-22KW
Test current :
0-100A
Test energy :
0-9999KWh
Test voltage :
80~260VAC
Rated power :
100A/22000W
Work frequency :
45~65HZ
keyword :
power meter
Accuracy :
1%
OEM :
YES
HS code :
8504902000
Packaging Details :
carton packaging
Delivery Time :
15 work days
Description
PZEM-061 AC Multifunction Meter Digital Power Meter
PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter
Key Functions
  • Electric technical specification measurement (voltage, current, active power, energy)
  • Overload alarm with flashing indicators
  • Programmable power alarm preset
  • Energy button reset functionality
  • Energy lost data save protection

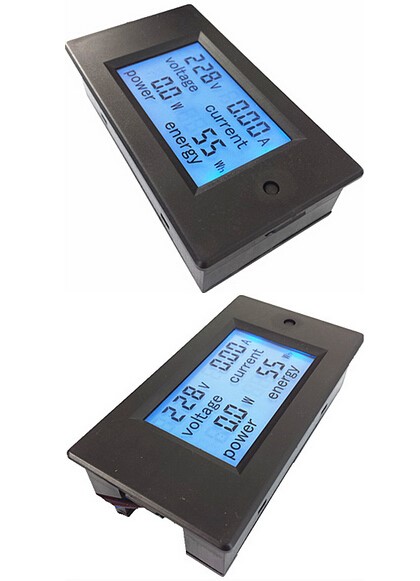

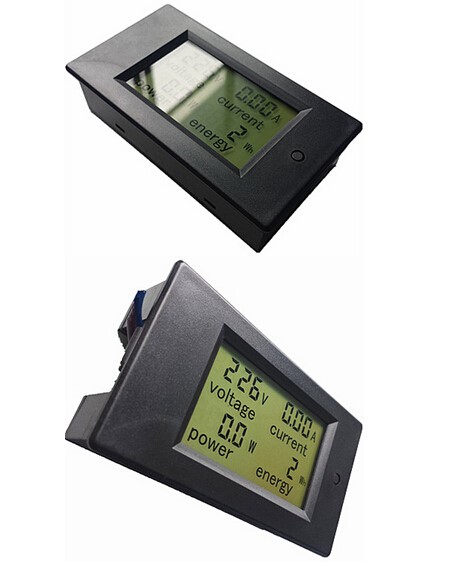

  • Large screen LCD full display showing current, voltage, power, and energy simultaneously
  • Backlight for enhanced visibility
Display Specifications
Power Measurement Test range: 0-22KW
<1KW display: 0.0-999.9W
>1KW display: 1000-9999W
≥10KW display: 10.0-22.0KW
Energy Measurement Test range: 0-9999KWh
≥10KWh display: 10-9999KWh
Voltage Measurement Test range: 80-260V
Display: 80-220V
Current Measurement Test range: 0-100A
Display: 0.00-99.99A
Technical Specifications
Operating Voltage 80-260V AC
Test Voltage 80-260V AC
Rated Power 100A/22KW
Operating Frequency 45-65Hz
Accuracy Class 1.0
Product Dimensions
PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter PZEM-061 100A 22000W AC Multifunctional Meters Digital Power Meter
