Specifications
Certification :
CE CCC
Max. Voltage :
250V
LED :
Yes
Max. Current :
4A
Material :
Stainless steel
Product name :
Waterproof Push Button
Certificate :
CCC
LED color :
Red/Orange/Green/White/Blue
LED voltage :
3V/5V/6V/12V/24V/36V/48V/110V/220V
Brand Name :
YiZhi
Function :
1NO1NC/2NO2NC
Operation type :
Momentary
Terminal type :
5 Pin Terminals/8 Pin Terminals
MOQ :
5 pieces
Head shape :
Flat Round
Protection Level :
IP66 IK09
Model Number :
HYBD22-PDF
Whether The Smart :
No
Price :
$2.08-2.90 / piece
Place of Origin :
Zhejiang, China

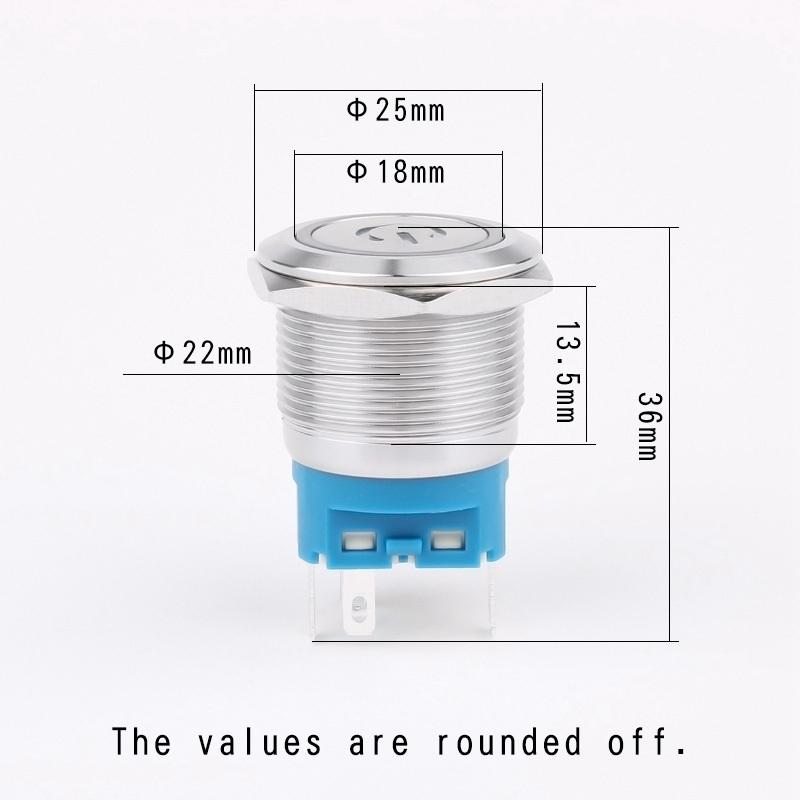

Mounting hole size :
Dia 22mm
Description

12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button

Product Description
Product Name Push Button Switch
Model Number HYBD22-PDF
Head Shape Flat Round
Operation Type Momentary
Mounting Hole Size Dia 22mm
Function 1NO1NC/2NO2NC(2NO2NC requires an extra $0.50)
Terminal Type 5 Pin Terminals/8 Pin Terminals
Material Stainless Steel
Protection Level IP66 IK09
Max. Current 4A
Max. Voltage 250V
Contact Material Silver
LED color Red/Orange/Green/White/Blue
LED voltage 3V/5V/6V/12V/24V/36V/48V/110V/220V
Operation Temperature -20℃~ +55℃
Mechanical Life >1,000,000 times
Elecrical Life >200,000times
Contact Resistance <50mΩ
Insulation Resistance >1000MΩ
12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button
Company Information

Yueqing Hongye Electric Co., Ltd. is a professional manufacturer of button switch, indicator light and alarm light. Its products are widely used in machinery, power, automation and other industries.
The company has a technology department, which ensures our strong research and development strength, and can constantly improve the production process of the company's products. At the same time, the company has a quality inspection department, all products have been professionally tested before they leave the factory, which ensures the reliability and safety of products.
The company adheres to the enterprise objective of "quality first, service first". We warmly welcome you to visit and hopefully achieve a win-win situation and createbrilliant.12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button12v24v220v Momentary Waterproof  Stainless Steel Power LED22mm Momentary Push Button

FAQ

1,Q: I need your price list of all your products, do you have a price list ?
A: We do not have a price list of all products.Because we have so many items,and it’s impossible to mark all of their price on a list.And the price are always changing because of the raw material cost changes.If you want to check any price of our products, please feel free to contact us.We will send you offer very soon!

2,Q : Can you make customized products and customized packing?
A: Yes.We made a lot of customized products for our customer all the time.About customized packing,we can put your Logo or other info on the packing.But just have to point out that ,it requires MOQ.

3,Q: Can you provide samples ? Are the samples free ?
A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost.If you need many items, or need more qty for each item,we will charge for the samples.

4,Q : What about your delivery time?
A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time.

5,Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such asDHL,FedEx,,UPS,TNT,EMS.That’s aDoor to Door service.For big packages, we will send them by Air or By ocean.We will use good packing and ensure its safety.We will be responsible for any product damage caused in delivery.

6,Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal.And you can pay in RMB. Sure.
