50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
Specifications
Warranty :
1 year
Customized support :
OEM, ODM
Place of Origin :
Zhejiang, China
Brand Name :
YIXIST
Model Number :
YPM-8203-02-FL
Size :
70 mm*70 mm*70 mm
Wavelength Range :
0.19-20um, 0.19-20um
Model :
YPM-8203-02-FL
Dimension :
70 mm*70 mm*70 mm
Material :
Thermopile
Power Range (wIthout attenuator) :
0.05-50W
Response Time :
3s
Linearity :
±2%
Uniformity :
±2%
Active Diameter :
10mm
Cooling :
Fan
Price :
$1,254.00/pieces >=1 pieces
MOQ :
1 unit
Description
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
PRODUCT OVERVIEW
The Thermopile Power Detector is specifically engineered for accurately measuring laser power levels between 0.05W and 50W. To accommodate various user preferences, the detector presents two data acquisition alternatives: a DB15 connection featuring a meter display, and a Bluetooth/USB connection enabling seamless computer integration.

YPM-8203-02-F-L uses DB15 interface, which need to connect the power meters.It can be used on the meter for data reading, data storage and power monitoring. In addition, a USB communication interface is reserved on the meter, which can expand the data collected on the detector and upload the data to the optical power meter software on the PC for online data acquisition and analysis.

Calibration

Every detector undergoes individual calibration and is accompanied by a factory calibration certificate, with the calibration data stored directly on the detector itself.
We offer calibration services, and to guarantee precise measurements, we recommend calibrating the detector annually.

Customized service

We can provide customized services according to user requirements.
PRODUCT SPECIFICATIONS
Model
YPM-8203-02-0002-F-L
Connect
DB15 With the power meter
Material
Thermopile
Wavelength range
0.19-20um
Max Average Power Density
10kW/cm2（1064nm/10W/CW）
3.2kW/cm2（10640nm/10W/CW）
Maximum Energy Density
5J/cm2(1064nm,360us,5Hz)
1J/cm2(1064nm,7ns,10Hz)
0.6J/cm2(532nm,7ns,10Hz)
0.3J/cm2(266nm,7ns,10Hz)
Maximum Average Power
(Typical value)
50W（continuous）；
70W（<1minute）
Power range
0.05-50W
Calibration Uncertainty
±3%@1064nm, 10640nm
±5%@190-20000 nm
Linearity
±2%
Uniformity
±2%
Response Time
3s
Active Diameter
10mm
Cooling
Fan
Dimensions（L*W*D)
70 mm×70 mm×70 mm

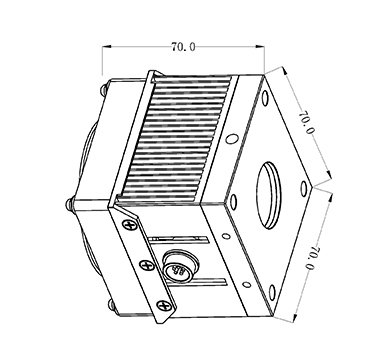

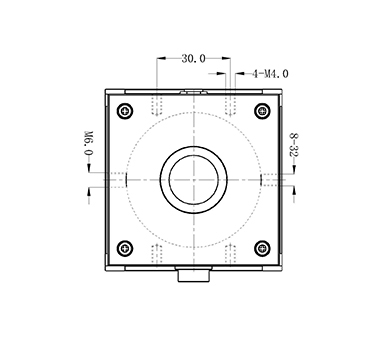

DIMENSION
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
RELATED ACCESSORIES
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
Power Meter
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options

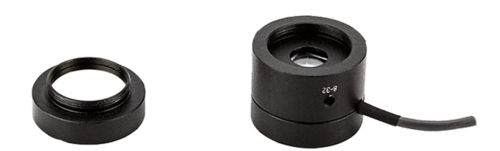

Integrating Sphere Power Detector
50W Thermopile Power Detector with 10kW Maximum Average Power Density and ODM Options
Photodetector
