Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain
Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain
Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain
Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain
Specifications
Brand Name :
YINGER HOIST
Model Number :
HS
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
1000units per week
Delivery Time :
5-8work days
Packaging Details :
wooden cases,on pallets,and we can also make the packing according to buyers request.
Price :
Negotiable
Lifting Weight :
1Ton Chain Hoist
Lifting Height :
6m
Sling Type :
Stainless Steel Chain
Power Source :
Hand Chain
Application :
Lifting Goods
Warranty :
1 Year
Product name :
Stainless steel hand hoist
Lift Speed :
Depends
Description

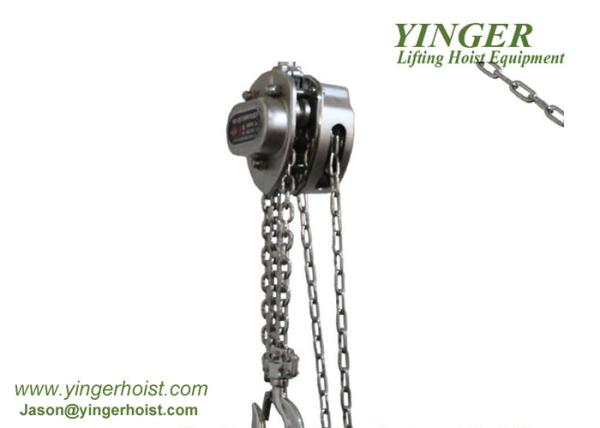

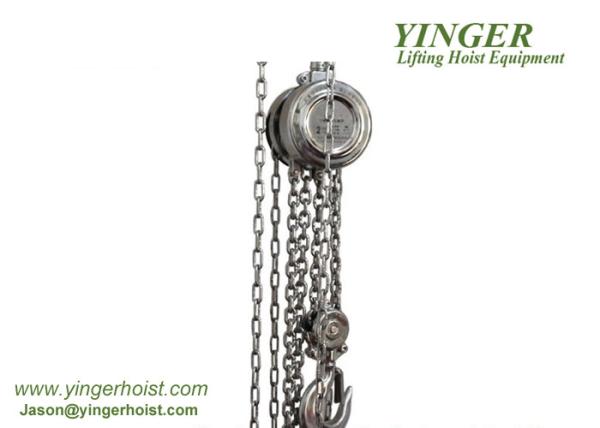

Stainless Steel Hand Hoist 1 Ton 6m Chain Block Manual Chain Hoist
Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain

1. easy to use,the hoist include upper hook and bottom hook,it can be used when the upper hook is fixed.

2. simple and easy to maintain,the stainless hoist won't rust lifetime.

3. it can be widely used,such as underground work,offshore work,wet warehouse,construction site,dock,etc.

HSZ stainless steel chain block is made of stainless steel 304/316,it has good-looking apperance and it is widely used for the underground work.
the hand operated stainless steel chain block can be used in machine installation, products lifting, loading and unloading in industry, agriculture, construction and mineral production. It is suitable to be used in the open air and no electric power works.

Capacity of stainless hand chain block ( t ) 0.5 1 1.5 2 3 5 10 20
Standard lifting height ( m ) 2.5 2.5 2.5 2.5 3 3 3 3
Test load ( t ) 0.75 1.5 2.25 3 4.5 7.5 12.5 25
Min distance (hook to hook) ( mm) 270 270 368 444 486 616 700 1000
Chain pull to lift full load( N ) 225 309 343 314 343 383 392 392
No. of load chain fall lines 1 1 1 2 2 2 4 8
Diameter of load chain mm 6 6 8 6 8 10 10 10
Dimensions (mm) A 120 142 178 142 178 210 358 580
B 108 122 139 122 139 162 162 189
C 24 28 34 38 38 48 64 82
D 120 142 178 142 178 210 210 210
Net Weight(kg) 9.5 10 16 14 24 36 68 155

Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain

Stainless Steel Manual Chain Hoist Long Life Time In Machine Installation manual chain block hoist stainless steel chain
