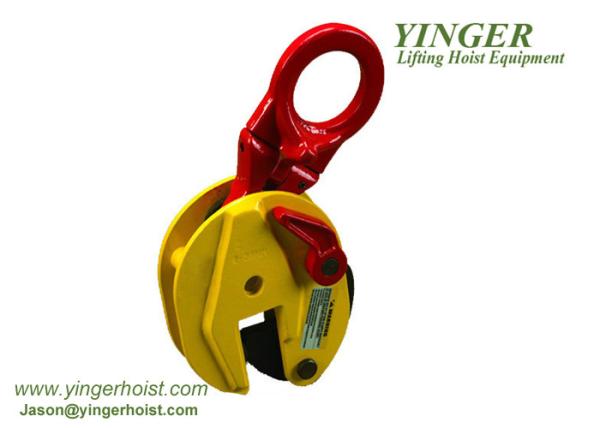

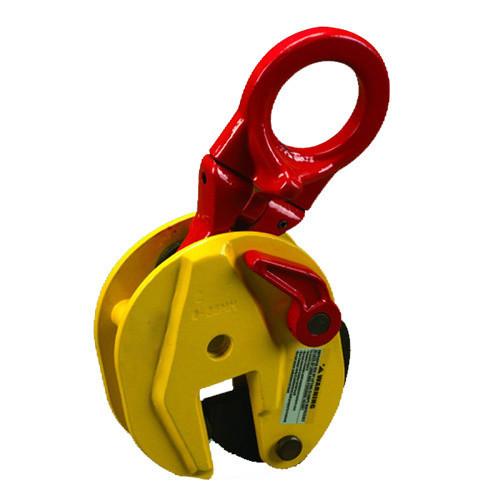

Spring Loaded Vertical Plate Lifting Clamps , Steel Plate Lifting Clamps OEM Cooperation
Spring Loaded Vertical Plate Lifting Clamps , Steel Plate Lifting Clamps OEM Cooperation
Spring Loaded Vertical Plate Lifting Clamps , Steel Plate Lifting Clamps OEM Cooperation
Spring Loaded Vertical Plate Lifting Clamps , Steel Plate Lifting Clamps OEM Cooperation
Specifications
Brand Name :
YINGER HOIST
Model Number :
CD
Certification :
CE
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000units/month
Delivery Time :
according to the quantity of the goods
Packaging Details :
In carton then on pallets
Price :
Negotiable
Capacity :
0.8ton to 16ton
Color :
Red/Yellow
Sample :
Available
Cooperation :
OEM
Description

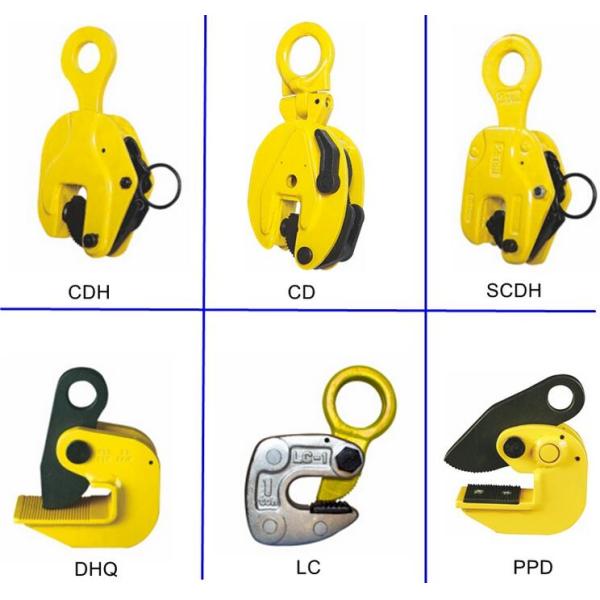

0.8ton To 10ton Cd Cdh Scdh Type Vertical Lifting Clamp Lifting Clamp Vertical Clamp

  • Capacity: 0.8-16T
  • The working load is the capacity of one piece. It may be used singly or pairs of clamp used together
  • Standard design clamp for vertical lifting of steel plates and steel structures. The spring-loaded tightening lock mechanism assures a positive initial clamping force.
  • Clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.
  • The clamp is locked in closed as well as in open position.
  • Made of high quality carbon steel
  • High-frequency quenching of die forging special alloy steels gives greater durability to the cam.

Model Working load (kg) Testing load (kg) Opening Size (mm) Net weight (kg)
CDH-0.8 800 1600 0-16 2.8
CDH-1.0 1000 2000 0-22 3.6
CDH-2.0 2000 4000 0-30 5.5
CDH-3.2 3200 6400 0-40 10
CDH-5.0 5000 10000 0-50 17
CDH-8.0 8000 16000 0-60 26
CDH-10 10000 15000 0-90 32
CDH-12 12000 18000 25-90 48
CDH-16 18000 24000 60-125 80
