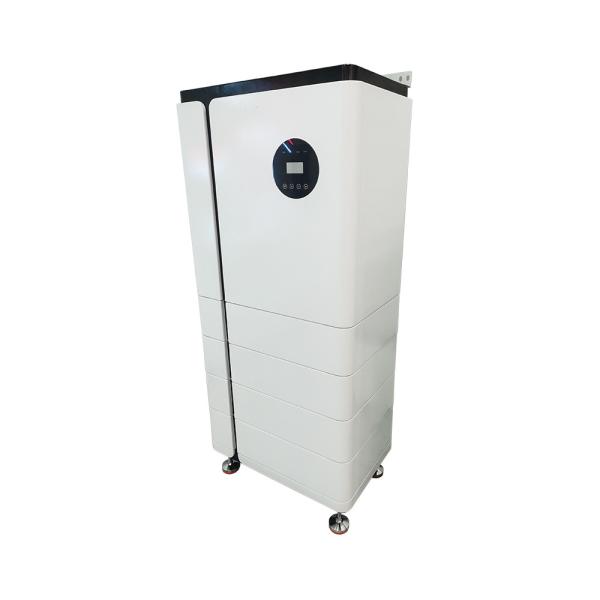

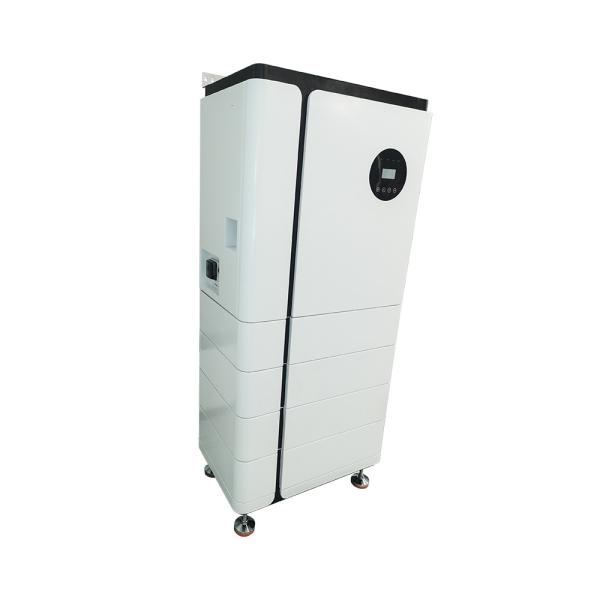

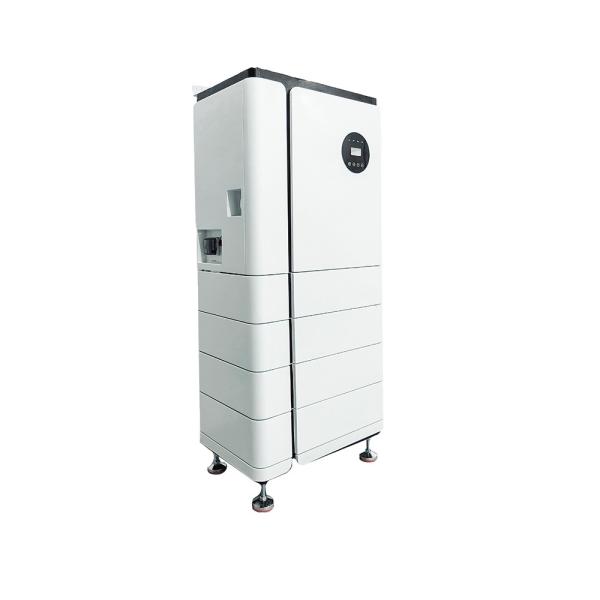

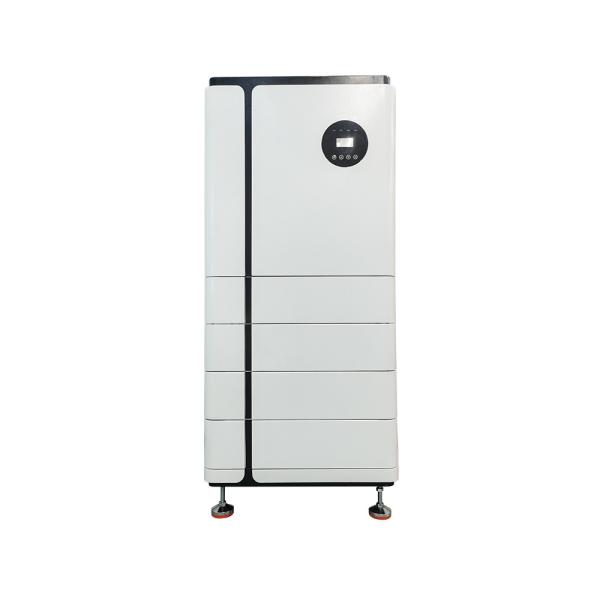

IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
Specifications
Place of Origin :
Guangdong, China
Brand Name :
YIMA
Model Number :
YM007
Certification :
CE/RoHS/UN38.3/MSDS
Supply Ability :
100000 Piece/Pieces per Month
Price :
$3,795.00/pieces 1-9 pieces
Warranty :
5years, 3-5 Years
Free installation service :
NO
Application :
Home, Home Appliances, BESS, UPS
Solar Panel Type :
Monocrystalline Silicon, Polycrystalline Silicon
Battery Type :
Lithium Ion, LiFePO4 Battery Pack
Controller Type :
MPPT
Mounting Type :
Ground Mounting
Load Power (W) :
8KW, 10KW, 12KW
Output Voltage (V) :
51.2V
Output Frequency :
20Hz
Work Time (h) :
24 Hours
Certificate :
CEC,IEC,RoHS,CE
Pre-sales project design :
Y
Product name :
Solar Energy Storage Battery
Cycle life :
6000 Times
OEM/ODM :
Aceeptable
Communication :
intercom
Inverer Type :
3 Phases, Hybrid
Battery cell :
BYD Cell
Port :
Shenzhen/Hongkong
Description

Customized LFP Battery Pack All In One Solar 8KW 10KW 12KW 3 Phases Inverter Home Energy Storage System

Our Advantage:

12 years professional experience
5 years warranty
24 hours service time
100% grade A cells
Products Description
Model
ESS-8K
ESS-10K
ESS-12K
PV Input
Max. power(kW)
12KW
15KW
18W
Max. DC voltage(V)
1000V
MPPT voltage range(V)
180V-850V
Max.input current of single MPPT(A)
13A
MPPT tracker/strings
2/1
AC Output
Rated output power(kVA)
8KVA
10KVA
12KVA
Max. output current(A)
12.7A
15.9A
19.1A
Grid voltage/range(V)
400V /360V~440V
Frequency (Hz)
50 /60Hz
THDI
<3%
AC output topology
3W+N+PE
EPS Output
Rated power (kVA)
8.8KVA
11KVA
13.2KVA
Rated output voltage(V)
400Vac
Rated output current(A)
12.7A
15.9A
19.1A
Rated frequency (Hz)
50Hz /60Hz
Battery technical parameters
Battery module
51.2V 50AH
Battery capacity
25kWh
MAX. parallel batteries
5 UNITS
Service Life
＞10years(25℃/77F)
Rated charge/discharge current(A)
40A
Communication interface
CAN/RS485
General Data
Operation Temperature
-10～+60℃
Cooling
forced air cooling
Relative Humidity
15%~85%(non-condensing)
Dimensions (W/D/H) mm
800*600*1833mm
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
IEC Certified 12KW All In One Solar Home Storage Battery Systems With 3 Phases Inverter
Company Profile
Shenzhen Yima Power Supply Co., Ltd. (hereinafter referred to as "Yima"was established in 2017. Yima is mainly committed to the research and development, producing and sales of lithium-ion 18650 21700 series cells and battery modules. Our products are widely used in four major sectors: Two-wheeler market (E-Bike, electric motorcycle/scooter, golf cart), Robot market (AGV, AI, early childhood education robot), Energy storage market (solar lights, industrial energy storage, household energy storage), Power tools market (garden tools, vacuum cleaners, sweepers).
Yima is High-tech enterprise, has passed the ISO9001 and ISO14001 quality and environmental management system, and all product have passed CE, UN38.3, MSDS, UL, ROSH and other certification.
Yima not only insist on principle of quality first, but also insist on the concept of technology first. And has cultivated a technical team from BAK, ATL, Sunwoda, central south University and other famous enterprise in the industry.
