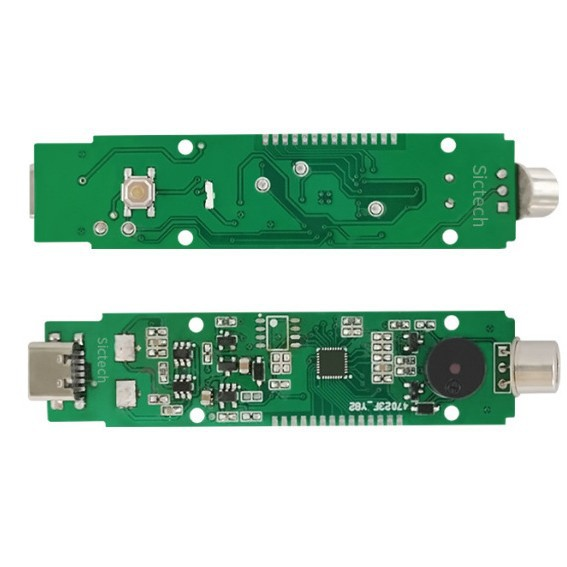

This product is a dedicated main control PCBA board for blow-type breathalyzers. It integrates multiple core functions including gas sensor signal acquisition, MCU data calculation, digital display, graded audio-visual alarm, lithium battery charge and discharge management, and key control.

Adopting a mature civil-grade circuit solution, the board features high stability, low power consumption and excellent consistency. It is widely matched with complete alcohol detection equipment for household self-testing, vehicle-mounted detection and enterprise pre-job alcohol screening scenarios.

Overall Process: PCB incoming inspection → Solder paste printing → SMT mounting → Reflow soldering → AOI optical inspection → Plug-in component welding → Board cleaning → Program burning → Functional testing → Aging test → Final inspection → Packaging and delivery

• Board surface is clean and tidy with clear silk screen printing
• All solder joints are uniform and full without bridging, cold solder, missing solder or solder explosion
• No skewed, damaged or reversely installed components
• Board is free from scratches, stains and copper foil peeling

• No circuit short circuit or open circuit
• Normal charging and power-off protection functions
• Sensitive key response and clear screen display
• Stable detection data and accurate graded alarm without garbled characters, crash or abnormal restart

• No abnormal heat generation or parameter drift during continuous power-on test
• All functions remain normal after simple high and low temperature tests
• Meeting the long-term service requirements of civil products

• Severe defects (failure to power on, no display, key failure, charging failure): Rework or scrapping required
• Functional defects (detection data drift, alarm disorder, occasional crash): Isolated for rework
• Slight appearance defects without functional impact: Downgraded delivery or delivered after customer negotiation
• All defective products shall be stored in separate areas with recorded batch information and defect causes to realize quality traceability

• Each single board is independently packed with an anti-static bag
• All products are placed in anti-static cartons with partition boards
• Mark product model, quantity, batch number and production date on outer cartons
• Provide quality inspection reports and delivery lists with goods to support batch inspection

We support fast sampling, small-batch trial production and stable mass production. The whole industrial chain is independently completed in-house, including PCB design, component procurement, SMT mounting, program development and aging testing.

Customized services for board size, functions, parameters and program interfaces are available, providing one-stop PCBA processing and customization solutions for breathalyzers.
