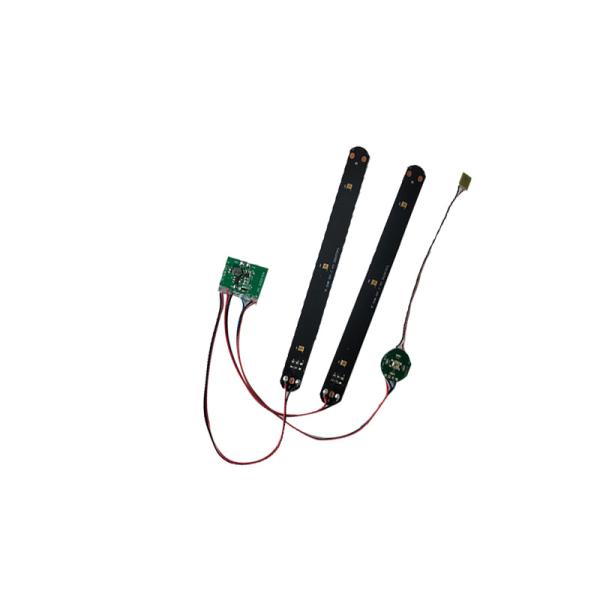

This UVC disinfection bag main control board is an integrated PCBA control solution specially developed for portable UVC disinfection bags, wearable item sterilization bags, and household portable sterilization equipment. The circuit board integrates core functions including UVC ultraviolet lamp drive, intelligent timing control, human body induction protection, battery charge and discharge management, overload protection, and touch key control.

Adopting a mature low-power MCU control scheme, this product features simplified circuit layout, high stability, and strong anti-interference performance. We provide one-stop PCBA services covering schematic design, PCB prototyping, program development, and mass production.

Equipped with a dedicated UVC ultraviolet lamp drive circuit compatible with conventional UVC sterilization tubes and UVC LED beads. Outputs stable driving current to ensure continuous operation without strobing or uneven brightness.

Built-in intelligent timing program supports multi-level timed sterilization modes with customizable working durations (3, 5, 10 minutes). Automatically powers off once sterilization is completed.

Automatically cuts off UVC light source when disinfection bag is opened or human proximity is detected, preventing ultraviolet radiation damage to skin and eyes.

Adopts low-power main control chip and optimized circuit design for extremely low standby power consumption and long battery life.

Integrated lithium battery charge and discharge management with over-charge, over-discharge, over-current, short circuit, and overheating protection.

Supports touch key operation for one-click sterilization start, timing mode switching, and equipment start/stop with sensitive circuit response.

• Working Voltage: 3.7V lithium battery power supply / 5V USB external power supply
• Control Chip: Industrial low-power dedicated MCU
• Driving Object: UVC sterilization lamps, UVC LED beads
• Working Mode: Multi-level timed sterilization & automatic shutdown
• Safety Configuration: Induction power-off protection & multi-way power protection
• Control Mode: Touch key control
• PCB Material: FR-4 flame-retardant eco-friendly substrate
• Production Process: SMT mounting, plug-in welding, program burning, full-function aging test

We offer comprehensive customization options including:

• Functional Customization: Adjust sterilization timing, modify working gears, optimize lamp driving power
• Hardware Structure Customization: Customizable PCB size, component layout, and interface positions
• Program Logic Customization: Custom power-on logic, sterilization working logic, and protection trigger mechanisms
• One-Stop Supporting Services: Full-process services from schematic design to mass production

Widely applicable to various portable sterilization equipment including household clothing and mask disinfection bags, maternal and infant product sterilization bags, travel portable item disinfection bags, and personal clothing sterilization devices.

Years of experience in PCBA solution development for small home appliances and intelligent sterilization equipment. All circuit boards use original brand components and high-quality flame-retardant PCB materials. Supported by an independent R&D team with short sampling cycles and sufficient mass production capacity.
