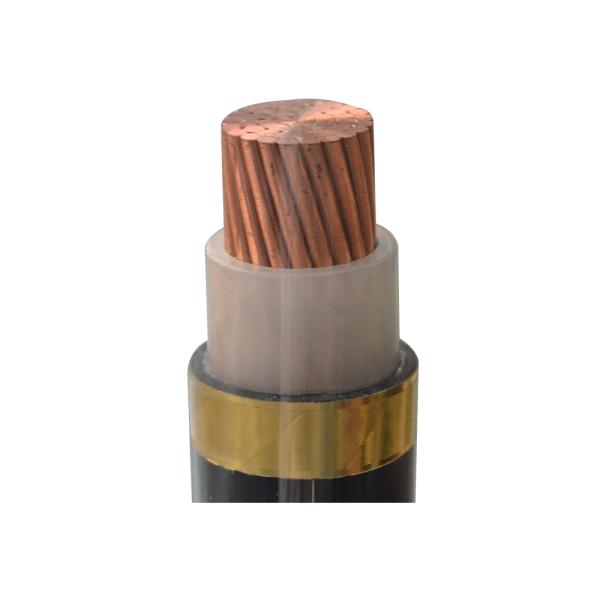

Black MV Power Cable / 33kV Xlpe Underground Cable Double Brass Tape Anti Termite
Black MV Power Cable / 33kV Xlpe Underground Cable Double Brass Tape Anti Termite
Black MV Power Cable / 33kV Xlpe Underground Cable Double Brass Tape Anti Termite
Black MV Power Cable / 33kV Xlpe Underground Cable Double Brass Tape Anti Termite
Specifications
Brand Name :
Yifang
Model Number :
YJV 1x120
Certification :
CE
Place of Origin :
China
MOQ :
1000m
Price :
USD3-9/m
Payment Terms :
T/T
Supply Ability :
300km/month
Delivery Time :
15 work days
Packaging Details :
wooden-steel drum
conductor :
copper
insulation :
XLPE
screen :
copper wire screen
sheath :
PE/PVC
Description

MV xlpe insulated armoured electric 33kv copper cable

Standard:IEC60502, BS6346, VDE, AS/NZS, UL,etc

The Rated Voltage(kv):

1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 low votage

1 or 3 core medium voltage

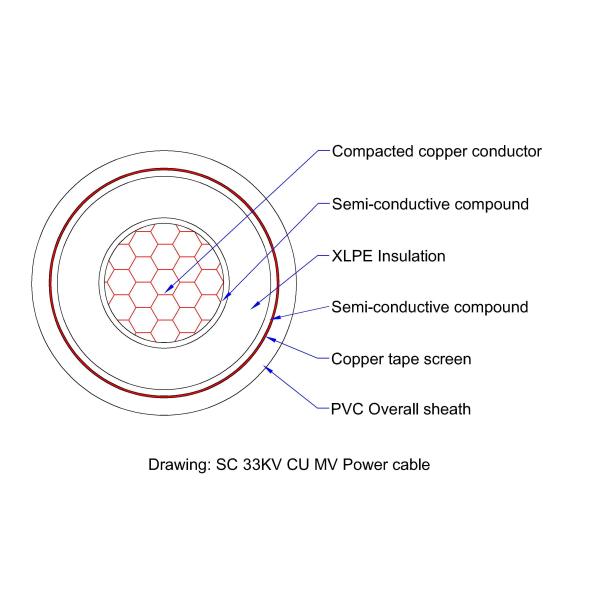

Construction:

Conductor: Solid or stranded copper/aluminum

Insulation: Cross-linked polyethylene (XLPE)

Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Sectional Area:

1.5 mm2 , 2.5 mm2 ,4 mm2 , 6 mm2 , 10 mm2 , 16 mm2 ,25 mm2 , 35 mm2 , 50 mm2 ,70 mm2 , 95 mm2 ,120 mm2 ,150 mm2 ,185 mm2 ,240 mm2 ,300 mm2 400 mm2 500 mm2 630 mm2 800 mm2

production range: single core cable from 1.5 mm2 to 800 mm2,muli-core cable from 1.5 mm2 to 400 mm2

Black MV Power Cable / 33kV Xlpe Underground Cable Double Brass Tape Anti Termite

Black MV Power Cable / 33kV Xlpe Underground Cable Double Brass Tape Anti Termite
