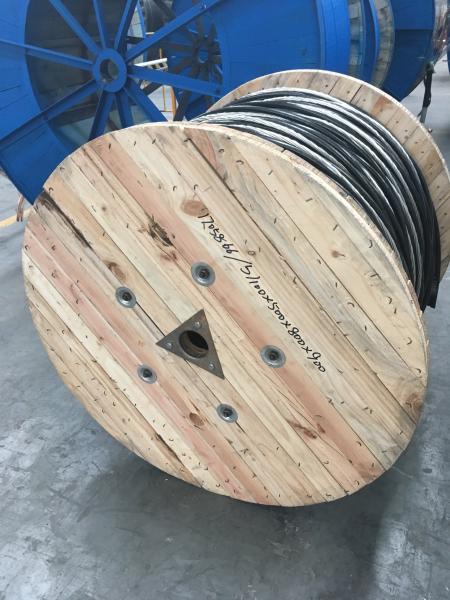

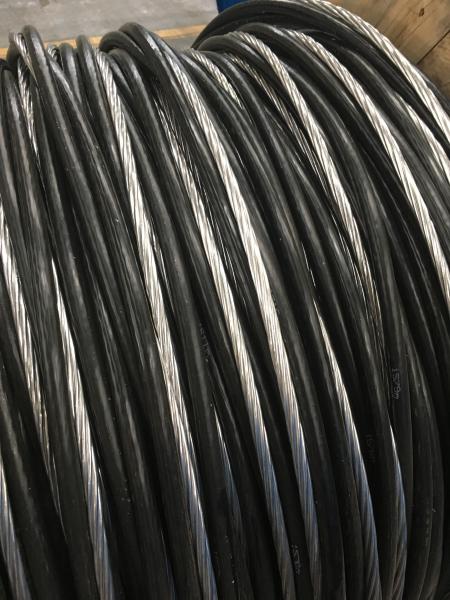

Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2
Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2
Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2
Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2
Specifications
Brand Name :
YIFANG
Model Number :
Overhead Insulated Cable
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000 METERS
Price :
0.1~10usd/meter
Payment Terms :
L/C, T/T
Supply Ability :
1000km per week
Delivery Time :
15-30 days
Packaging Details :
drums
CONDUCTOR :
ALUMINIUM
INSULATION :
XLPE
COLOR :
BLACK
Description

Sheathed Overhead Insulated Cable ABC Aluminum Stranded Wire 3X95 Mm2

Construction of NFC 33-209 Standard ABC Cable

Cross Section of Conductor
(mm2)		 Min.Nos. of Wires for Conductor
(mm)		 Insulation Thickness
(mm)		 Average Max. O.D.per Single-core
(mm)		 Max.Conductor Resistance at 20ºC
(Ω/km)		 Min Insulated Resistance at Rated Working Temperature
(MΩ.km)		 Cable Tensile Breaking Force
2x10 6 1.00 6.5x13.0 3.08 0.0067 0.67 1650
2x16 6 1.20 8.0x16.0 1.91 0.0065 0.65 2512
2x25 6 1.20 9.4x18.8 1.2 0.0054 0.54 3762
2x35 6 1.40 11.0x22.0 0.868 0.0054 0.54 5177
2x50 6 1.40 12.3x24.6 0.641 0.0046 0.46 7011
2x70 12 1.40 14.1x28.2 0.443 0.004 0.4 10354
2x95 15 1.60 16.5x33.0 0.32 0.0039 0.39 13727
2x120 15 1.60 18.1x36.2 0.252 0.0035 0.35 17339
2x150 15 1.80 20.2x40.4 0.206 0.0035 0.35 21033
2x185 30 2.00 22.5x45.0 0.164 0.0035 0.35 26732
2x240 30 2.20 25.6x51.2 0.125 0.0034 0.34 34679
4x10 6 1.00 6.5x26.0 3.08 0.0067 0.67 1650
4x16 6 1.20 8.0x32.0 1.91 0.0065 0.65 2512
4x25 6 1.20 9.4x37.6 1.2 0.0054 0.54 3762
4x35 6 1.40 11.0x44.0 0.868 0.0054 0.54 5177
4x50 6 1.40 12.3x49.2 0.641 0.0046 0.46 7011
4x70 12 1.40 14.1x56.4 0.443 0.004 0.4 10354
4x95 15 1.60 16.5x66.0 0.32 0.0039 0.39 13727
4x120 15 1.60 18.1x72.4 0.252 0.0035 0.35 17339
4x150 15 1.80 20.2x80.8 0.206 0.0035 0.35 21033
4x185 30 2.00 22.5x90.0 0.164 0.0035 0.35 26732
4x240 30 2.20 25.6x102.4 0.125 0.0034 0.34 34679
