Almelec Conductor Bare Electrical Wire 75.5mm2 For Medium Voltage Power Line
Almelec Conductor Bare Electrical Wire 75.5mm2 For Medium Voltage Power Line
Specifications
Brand Name :
Yifang Cable
Model Number :
JKLH
Certification :
CE,ISO,UL,KEMA
Place of Origin :
China
MOQ :
1km
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :
500km per month
Delivery Time :
5-8working days
Packaging Details :
Wooden drum 1.1mx0.8mx1.1m, Wooden Steel Drum2.2mx1.45mx2.2m
Size :
54.6,93.3,117,228,288,336,507mm2
Standard :
NFC 34 215,EN 50182
material :
Aluminum Alloy
application :
overhead lv or mv power line
Coutry :
Senegal,Madagascar,Congo,Burkina Faso
Strands :
7,19,37,61
Description

Almelec Conductor Bare Electrical Wire 75.5mm2 For Medium Voltage Power Line

Quick Details

· Place of Origin: Henan, China (Mainland)

· Brand Name: Zhengcable

· Model Number: almelec cable with 7,19,37,61,91strands

· Insulation Material: none

· Type: HV MV LV

· Application: Overhead

· Conductor Material: Aluminium alloy

· Jacket: None

· advantage: Resistance chemical corrosion

· advantage1: anti heat-ageing,environment stress

· advantage2: light in weight

· advantage3: especially for laying across

Packaging & Delivery

Packaging Details: wooden drum;wooden_iron drum;iron drum.
Delivery Detail: sample(3d);in stock(10d);general cargo(15d);OEM/ODM(20d)

Product Description

All aluminium alloy conductor, aaac cable with BS,ASTM,DIN,IEC standard

1 Description of aaac cable

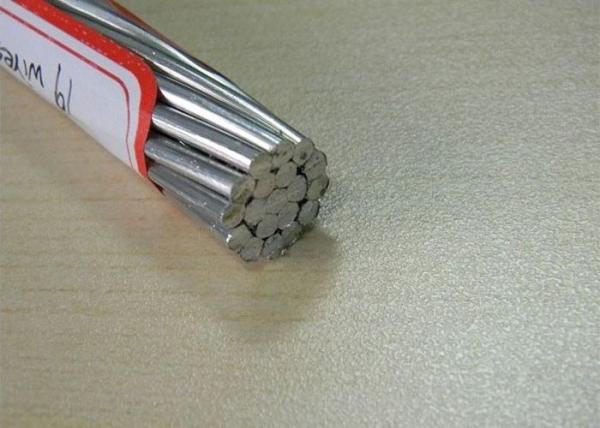

Aluminium alloy 6201 wires, concentrically stranded from 7 strands to 91 strands depending upon the size.

CABLES ASTER 75.5MM²
ITEM DESCRIPTION UNITS PROPOSE OFFER BIDDER
1 manufacturer ‐ ‐ Zhengzhou yifang cable co.ltd
1.1 Type Model No ‐ ‐ ASTER 75.5mm2
1.2 Country of origin ‐ ‐ China
2 Usage specifications ‐ ‐ 　
　 General 　 　 　
2.1 nominal section mm² 75.5 75.5
2.2 Number U 19 19
2.3 Nominal diameter Diameter of son mm 2.25 2.25
2.4 External cable mm 11.3 11.25
2.5 MECHANICAL PROPERTIES AND ELECTRICAL 　 　 　
2.5.1 Mass per unit length of the cable Kg/Km 207.4 206
2.5.2 Linear density greased cable Kg/Km ‐ N/A
　 Breaking load daN 2456 2456
　 Modulus of elasticity Hbar 6000 6000
2.5.3 Resistance at 20 ° C Ohm/km 0.438 0.438
2.5.4 Permissible current summer A 276 276
3 industrial Standards 　 NF C 11‐201 NF C 34 – 125 CEI 61 089 CEI 60 104 EN 1715 – 1 NFC 34-125 IEC 61089
4 installation 　 Outside Outside
4.1 packing 　 　 　
　 - reel m 　 2270±5%
