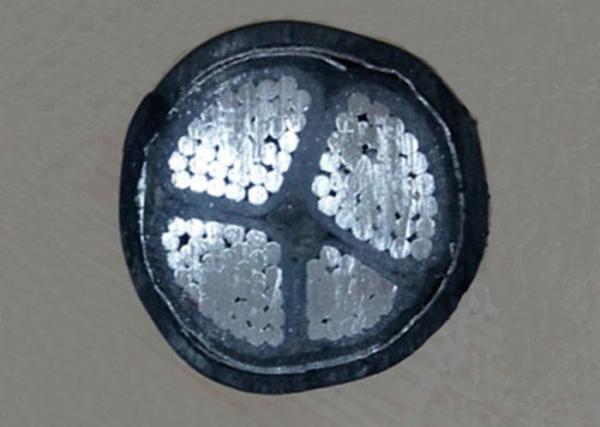

0.6/1kV Câbles de réseau souterrain Câble ARVFV 3x150mm²+70mm² Alu Steel Armour Power Cable
0.6/1kV Câbles de réseau souterrain Câble ARVFV 3x150mm²+70mm² Alu Steel Armour Power Cable
0.6/1kV Câbles de réseau souterrain Câble ARVFV 3x150mm²+70mm² Alu Steel Armour Power Cable
0.6/1kV Câbles de réseau souterrain Câble ARVFV 3x150mm²+70mm² Alu Steel Armour Power Cable
Specifications
Brand Name :
YifangCable
Model Number :
Câble ARVFV
Certification :
CE BV ISO KEMA UL
Place of Origin :
China
MOQ :
1km
Price :
Negotiable
Payment Terms :
D/A, D/P, L/C, T/T, Western Union, MoneyGram
Supply Ability :
600km/month
Delivery Time :
5-8work days
Packaging Details :
Woodern Drum or Woodern Steel Drum
Rated Voltage :
600/1000V
Size :
3x150+70 Câble ARVFV
Standard :
IEC 60502-1 or NFC
Armour :
Double Steel Tape Armour
Insulation :
XLPE
Sheath :
PVC
Description

Câbles de réseau souterrain Câble ARVFV 3x150mm²+70mm² Alu

TECHNICAL DATA SHEET
Câble ARVFV 3x150mm²+70mm² Alu
Item Description Unit Data
1 Standard 　 IEC 60502-1
2 Size 　 3x150+1x70mm2
3 Rated Voltage kV 0.6/1
4 Phase core 　 　
　 Cores 　 3
　 Norminal Cross Sectional Area mm2 150
　 Conductor 　 Compact sector aluminum
　 Standing No.Of Wire no.s Min.15
　 Max.DC Resistance at 20℃ Ω/km 0.206
　 Insulation 　 XLPE
　 Norminal Thickness mm 1.4
5 Earth core 　 　
　 Cores 　 1
　 Norminal Cross Sectional Area mm2 70
　 Conductor 　 Compact sector aluminum
　 Standing No.Of Wire no.s Min.12
　 Max.DC Resistance at 20℃ Ω/km 0.443
　 Insulation 　 XLPE
　 Norminal Thickness mm 1.1
6 Filler(if any) 　 PP
7 Wrapping tape 　 Non-woven clothing tape
8 Inner Sheath 　 PVC
　 Norminal Thickness mm 1.4
9 Armor 　 Steel tape
　 Norminal Thickness mm 0.5
10 Outer Sheath 　 Black PVC
　 Norminal Thickness mm 2.5
11 Overall diameter mm 47.0
12 Approx.Weight kg/km 3270
