Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
Specifications
Model Number :
THE01543
Place of Origin :
Guangdong, China
MOQ :
100
Price :
724-805円
Brix range :
0-66.6
Measurement accuracy :
0.01%
Size :
28/30x40x170
Weight :
280g
Ethylene glycol range :
-60°C-0°C, 0-66.6%
Propylene glycol range :
-50°C-0°C, 0-62.4%
Battery fluids range :
1.100-1.400sg
Resolution :
5°C, 5°C, 0.01sg
Min. division :
ethylene glycol:5%
Freezing point calibration :
Celsius
Zero calibration :
20°C distilled water at 20°C environment
Measurement type :
Ethylene glycol, Propylene glycol, Battery fluids
Prism type :
Main prism
Eyepiece adjustment :
Adjustable for clear state
Scale reading :
Direct result value
Description
Handheld Ethylene & Propylene Glycol Concentration Refractometer
This professional handheld refractometer measures the freezing point of automotive cooling systems for both ethylene glycol and propylene glycol antifreeze solutions. It also checks battery electrolyte proportion and usage status.
Key Features
  • Measures freezing temperature of automotive cooling systems
  • Compatible with both ethylene glycol and propylene glycol antifreeze
  • Checks battery electrolyte proportion and usage status
  • Celsius freezing point calibration
  • Zero calibration using 20°C distilled water in 20°C environment
Technical Specifications
Measurement Type Range Resolution
Ethylene Glycol -60°C to 0°C (0% to 66.6%) 5°C
Propylene Glycol -50°C to 0°C (0% to 62.4%) 5°C
Battery Fluids 1.100 to 1.400 sg 0.01 sg
Operation Instructions
  1. Place a few drops of the liquid on the main prism
  2. Cover the prism and look through the eyepiece against the light
  3. Adjust the eyepiece to achieve clear visibility

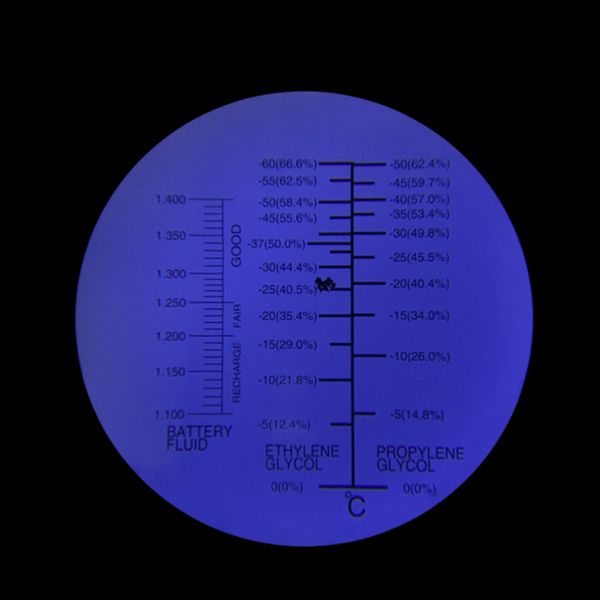

  4. Read the result value directly from the scale
Product Images
Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing Handheld 0-66.6 Brix Range High Accuracy 0.01% Refractometer for Ethylene and Propylene Glycol Testing
