Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
Specifications
Brand Name :
YIERYI
Place of Origin :
Guangdong, China
MOQ :
2
Price :
€11.42-14.05
Accuracy :
0.1 Ph, ±5mV
Applicable Temperature Range :
5 ~ 70℃
Probe type :
Platinum needle
Range :
0~+1500mv
Electrode potential :
245-270mV(15~30°)
Internal resistance :
≤10kΩ
Electrode stability :
±8 mV /24
Electrode indicator :
good conductivity
Material :
PC
Electrode length :
Approx. 70cm / 27.5in
Electrode size :
155 * 20 * 20mm / 6.1 * 0.8 * 0.8in
Electrode weight :
Approx. 49.6g / 1.8oz
Package size :
18 * 4.5 * 2.3cm / 7.1 * 1.8 * 0.9in
Package weight :
Approx. 75g / 2.6oz
Connector type :
BNC Q9
Description
ORP Electrode Probe for Oxidation-Reduction Potential Testing

Professional ORP electrode probe designed for measuring oxidation-reduction potential in aquariums, hydroponic systems, laboratories, and various water quality applications. Features a BNC Q9 connector for compatibility with most ORP meters and controllers.

Product Overview

This combined electrode consists of a platinum needle indicating electrode and silver-chlorinated silver reference electrode. It serves as the measuring element for ORP meters and water quality testers, providing accurate oxidation-reduction potential measurements in aqueous solutions.

Key Features
  • Wide application for testing ORP in aqueous solutions and water systems
  • Professional laboratory-grade ORP electrode probe

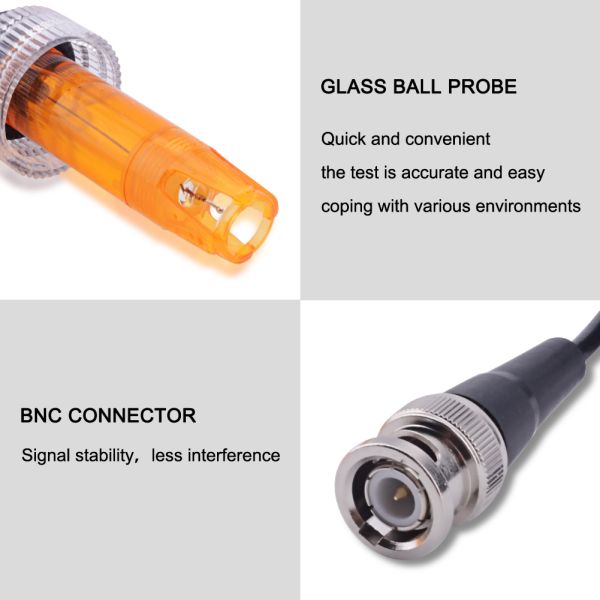

  • Compatible with most ORP meters and controllers featuring BNC Q9 connector
  • Filled with saturated KCl colloidal solution for reliable performance
  • Ideal for printed circuit board applications and chromium wastewater treatment monitoring
  • Environmentally friendly materials with excellent conductivity

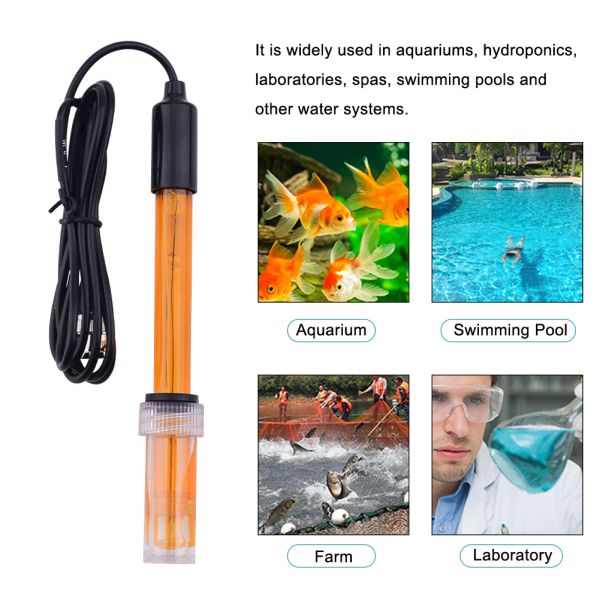

  • Suitable for water sources, aquariums, hydroponics, laboratories, spas, and swimming pools

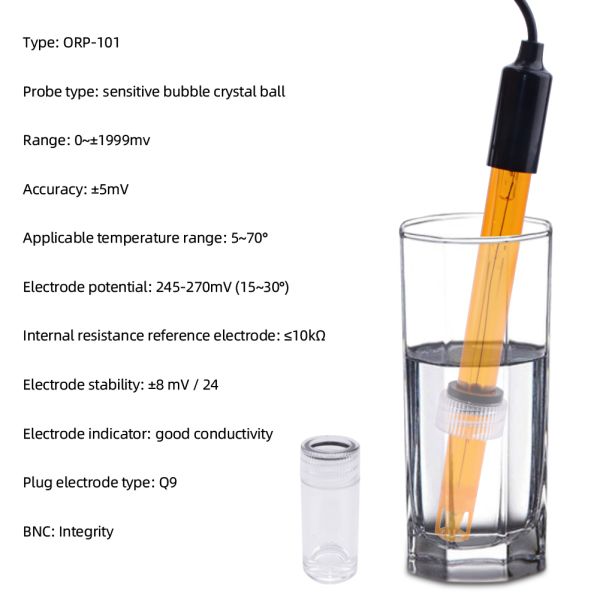

Technical Specifications
MaterialPC
Model TypeORP-101 Laboratory Electrode Probe
Sensitive ElementCrystal Ball Bubble
Measurement Range0 to ±1999mV
Accuracy±5mV
Temperature Range5 to 70℃
Electrode Potential245-270mV (15-30℃)
Reference Electrode Internal Resistance≤10kΩ
Electrode Stability±8mV/24h
Indicator ElectrodeGood Conduction
Connector TypeQ9 BNC Upright
Cable LengthApprox. 70cm / 27.5in

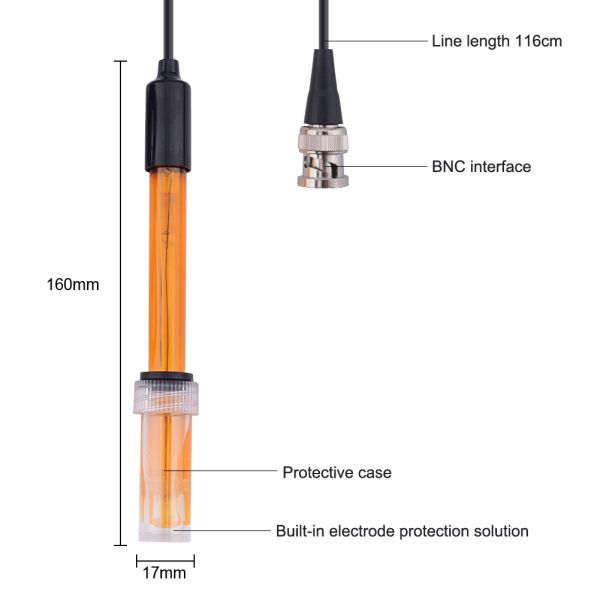

Electrode Dimensions155 × 20 × 20mm / 6.1 × 0.8 × 0.8in
Electrode WeightApprox. 49.6g / 1.8oz
Package Dimensions18 × 4.5 × 2.3cm / 7.1 × 1.8 × 0.9in
Package WeightApprox. 75g / 2.6oz
Product Images
Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing Platinum Needle ORP Probe with BNC Q9 Connector for 0~+1500mv Range Oxidation-Reduction Potential Testing
