GYXTW Central Loose‑Tube Armoured Cable – 2‑24 Core Single‑Mode Outdoor Fibre Cable
GYXTW Central Loose‑Tube Armoured Cable – 2‑24 Core Single‑Mode Outdoor Fibre Cable
GYXTW Central Loose‑Tube Armoured Cable – 2‑24 Core Single‑Mode Outdoor Fibre Cable
GYXTW Central Loose‑Tube Armoured Cable – 2‑24 Core Single‑Mode Outdoor Fibre Cable
GYXTW Central Loose‑Tube Armoured Cable – 2‑24 Core Single‑Mode Outdoor Fibre Cable
GYXTW Central Loose‑Tube Armoured Cable – 2‑24 Core Single‑Mode Outdoor Fibre Cable
Specifications
Brand Name :
Ebocom
Model Number :
GYXTW
Certification :
ISO
Place of Origin :
China
MOQ :
1KM
Price :
0.03 USD per Meter
Payment Terms :
L/C, T/T
Supply Ability :
300 KM per Day
Delivery Time :
3-10 days
Packaging Details :
Plywood Drum or Custimized
Application :
Networking/communication
Jacket material :
PE
Fiber core :
2 4 6 8 12 24 core
Fiber type :
SM G652D/G657
Strenght member :
steel wire
Armoring :
steel tape
Description

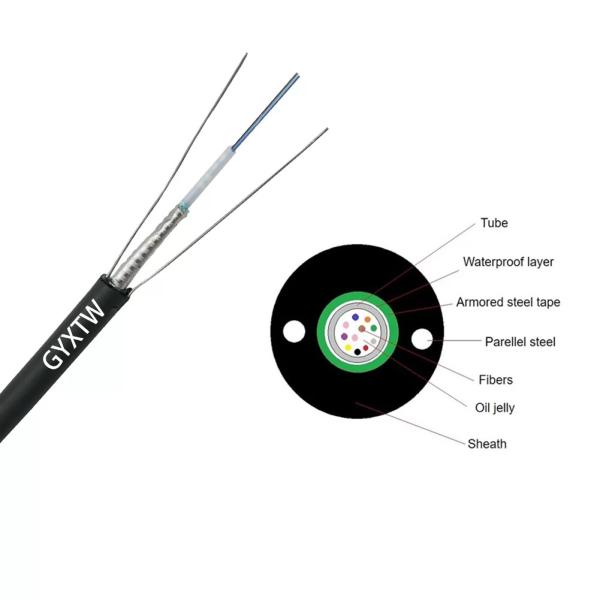

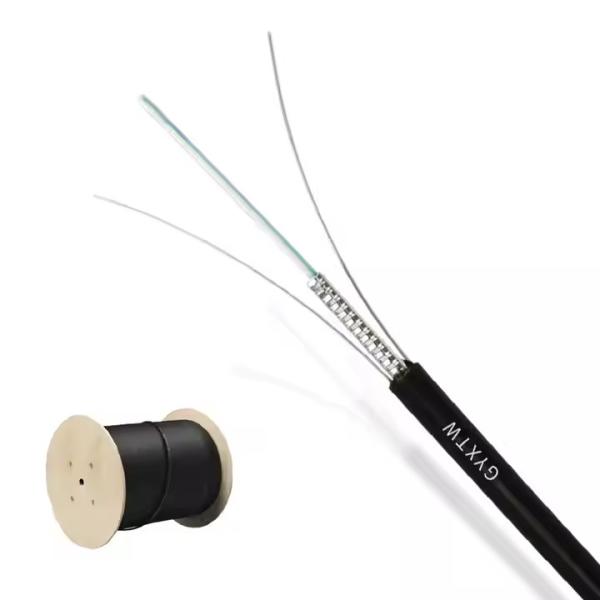

GYXTW is the go‑to cable when you need a compact, central‑tube design that can hang between poles one day and drop straight into a conduit the next. A gel‑filled PBT tube protects up to 24 G.652D / G.657A fibres from moisture. Two parallel galvanised steel wires carry the tensile load, while a corrugated steel tape keeps claws, stones and spades at bay. The whole package is finished with a UV‑stable PE jacket so it can work for years in sun, sand or rain.

Suitable application scenarios:

  • Pole‑to‑pole spans for rural broadband and CCTV backbones

  • Metro access rings that duck in and out of ducts or hand‑holes

  • Industrial sites where rodent‑proofing and crush strength matter

  • FTTx feeder links that must handle blowing, pulling and aerial lashing

Why engineers choose GYXTW?

  • Single central tube – slim profile, simple mid‑span access

  • Twin steel strength wires – easy dead‑ending, no messenger needed

  • Corrugated armour – high crush rating without bulk

  • Low‑loss fibres – ≤0.35 dB/km @1310 nm, ≤0.22 dB/km @1550 nm

  • One jacket fits all – the same cable for aerial, duct or direct‑buried runs

Specification Value
Fibre type / count SM G.652D / G.657A, 2–24 cores
Tube & filling PBT loose tube + thixotropic gel
Strength members 2 × 1.2 mm galvanised steel wires
Armour Longitudinal corrugated steel tape
Outer sheath Black HDPE, UV & abrasion resistant
Nominal diameter 7.0 mm (12 F) · 8.5 mm (24 F)
Tensile load (short / long) 1 500 N / 600 N
Crush resistance 1 000 N ∙ 100 mm
Operating temperature −40 °C … +70 °C
Installation methods Aerial self‑support / duct / buried
Standards IEC 60794‑1‑2, ISO 11801 OS2, RoHS

Need something else?

We manufacture in‑house, so fibre counts, print legends, drum lengths or even jacket colour can be customised with short lead‑times. Get in touch for pricing, datasheets, or a span/tension check for your route.
