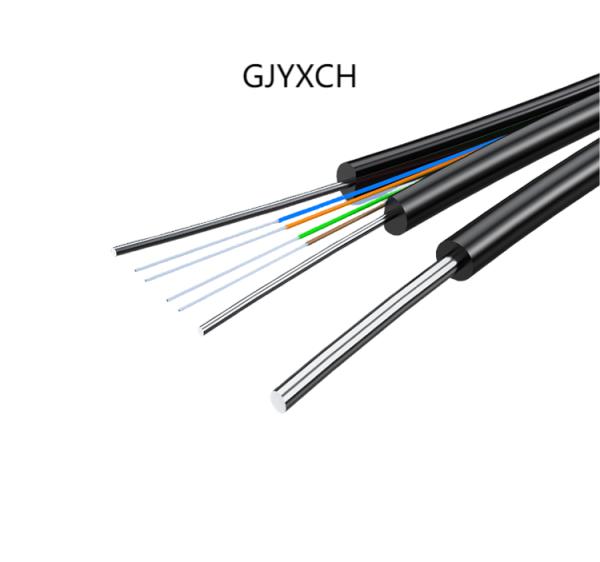

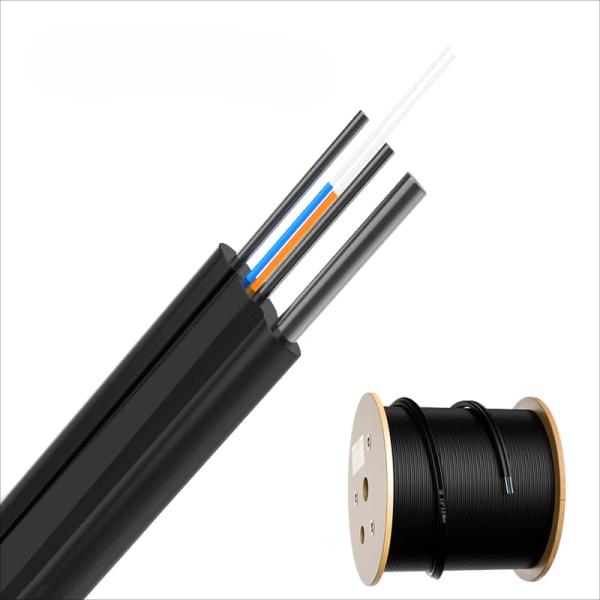

4 Core G657A1 Outdoor FTTH Drop Fiber Cable GJYXCH with 0.8mm Steel Wire Messenger
4 Core G657A1 Outdoor FTTH Drop Fiber Cable GJYXCH with 0.8mm Steel Wire Messenger
4 Core G657A1 Outdoor FTTH Drop Fiber Cable GJYXCH with 0.8mm Steel Wire Messenger
4 Core G657A1 Outdoor FTTH Drop Fiber Cable GJYXCH with 0.8mm Steel Wire Messenger
Specifications
Brand Name :
Ebocom
Model Number :
GJYXCH
Certification :
ISO
Place of Origin :
China
MOQ :
20KM
Price :
USD 0.01~0.2, Meter
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 KM per Day
Delivery Time :
3-10 days
Packaging Details :
Drum/Pallet
Fiber options :
G657A1
Application :
FTTH FTTB FTTX Network
Color :
Black & White
Jacket :
LSZH/PVC
Strength member :
steel wire/FRP
Fiber count :
4 Core
Length :
1km or 2km
Oem :
Available
Description

Product Description

The 4-core GJYXCH FTTH outdoor drop cable is engineered for reliable last-mile fiber access in fiber-to-the-home (FTTH) networks. Built with bend-insensitive G657A1 optical fibers and steel strength members, it ensures excellent mechanical protection and long-distance aerial performance.

Key Features

  • 4 G657A1 Bend-Insensitive Fibers – Ensures minimal bending loss and high stability

  • Steel Wire Reinforcement – With embedded dual steel wires and central rod for added tension resistance

  • Outdoor-Rated Jacket – Durable LSZH sheath resists UV, moisture, and aging

  • Quick Installation – Lightweight, flexible, and suitable for direct connection to FTTH terminals

  • Stable Performance – Optimized for voice, video, and data triple-play applications

Applications

  • Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB)

  • Outdoor aerial or wall-mounted installations

  • Residential broadband deployment

  • Campus or apartment network access lines

Technical Specifications

Item Specification
Fiber Type G657A1 Single Mode
Fiber Count 4 Cores
Cable Type Flat Drop Cable (GJYXCH)
Strength Member 2 Steel Wires + 1 Central Steel Rod
Outer Sheath UV Resistant LSZH, Black
Dimension Approx. 5.2mm × 2.0mm
Tensile Strength ≥ 1000N
Crush Resistance ≥ 1000N/100mm
Bending Radius Static ≥10×D / Dynamic ≥20×D
Operating Temperature -20°C to +70°C
Storage Temperature -40°C to +70°C

Ebocom — Your Reliable Fiber Cable Supplier

Ebocom is a trusted fiber optic cable manufacturer with 10+ years of experience in outdoor and FTTH cable solutions. Our products are widely used across global network infrastructure projects and support:

OEM & Custom Printing
Flexible Packaging Options
Global Shipping
Complete Testing & Certification
