All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
All Dielectric Self Supporting Fiber Optic ADSS Cable 48 96 Core for Networking
Specifications
Brand Name :
OEM
Model Number :
ADSS -48B1.3
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW $0.3/M
Payment Terms :
T/T , L/C
Supply Ability :
5000KMS/day
Delivery Time :
5-8 day
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
FIBER TYPE :
G652D/G657A1 A2
FIBER COUNT :
2-288 CORE
STRENGTH MEMBER :
FRP
JACKET :
PE
JACKET COLOR :
BLACK
BRAND :
OEM
Description

Description

ADSS cable, which stands for All-Dielectric Self-Supporting cable, is a type of fiber optic cable designed for aerial applications, particularly in environments near high-voltage power lines. It's unique because it doesn't require a separate messenger wire for support, making it ideal for one-step installation on poles and towers

Features&Application

1.Utility Companies:

ADSS cables are widely used by utility companies for transmitting data and voice communications over power lines

2.Telecommunications:

They are also used by telecommunications companies for providing high-speed internet and other communication service

3.Campus Backbones:

ADSS cables are suitable for establishing reliable communication links within campuses and between building

4.Long-Span Applications:

ADSS cables, particularly those with long-span designs, can be used for installations where long distances need to be covered between support structure

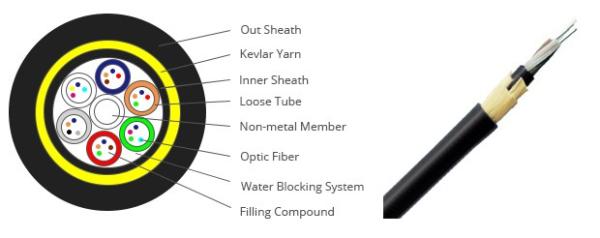

Specification

Fiber Count 12 24 36 48 96 144
Fiber Count Per Tube 6 6 6 12 12 12
Loose Tube Material PBT
Water Blocking Material Fiber Jelly
Counts 2 4 6 4 8 12
Central Strength Member Material FRP Rod (Coated with PE if needed)
Counts 2.2 2.2 2.2 2.5 2.5 2.5
Overall Diameter (nom.)(mm)(±0.2) 10.3 10.4 10.4 11 12.3 14.9
Outer Jacket Material HDPE, Black
Nominal Thickness (mm) 1.6 1.6 1.6 1.6 1.6 1.6
Cable Weight Kg/Km 73 76 76 86 109 162
Temperature Range Operation -30°C~+70°C
Storage -30°C~+70°C
Installation -10°C~+60°C
