GJYXFCH 1 Core 2Core 4Core G652D G657A1 Drop Cable For Ftth Drop Cable
GJYXFCH 1 Core 2Core 4Core G652D G657A1 Drop Cable For Ftth Drop Cable
GJYXFCH 1 Core 2Core 4Core G652D G657A1 Drop Cable For Ftth Drop Cable
GJYXFCH 1 Core 2Core 4Core G652D G657A1 Drop Cable For Ftth Drop Cable
GJYXFCH 1 Core 2Core 4Core G652D G657A1 Drop Cable For Ftth Drop Cable
GJYXFCH 1 Core 2Core 4Core G652D G657A1 Drop Cable For Ftth Drop Cable
Specifications
Brand Name :
EBOCOM
Model Number :
GJYXFCH 2B1
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.018/M ≥5000m $0.016/M
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000KMS/day
Delivery Time :
5-8 days
Packaging Details :

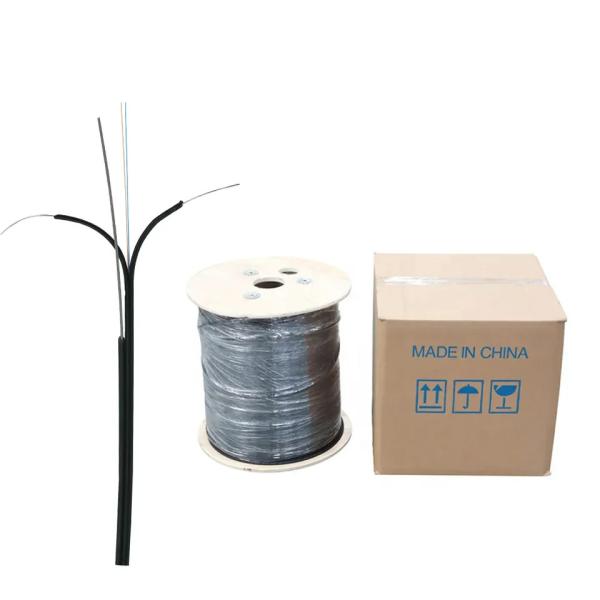

1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Fiber count :
1-4 core
Fiber type :
G652D G657A1 G657A2
Fiber brand :
ZTT YOFC....
Strength messenger :
Steel wire/ FRP
Jacket material :
lszh pvc
Outer diameter :
4.8*2.8±0.2mm
Brand :
EBOCOM/OEM
Description
Description

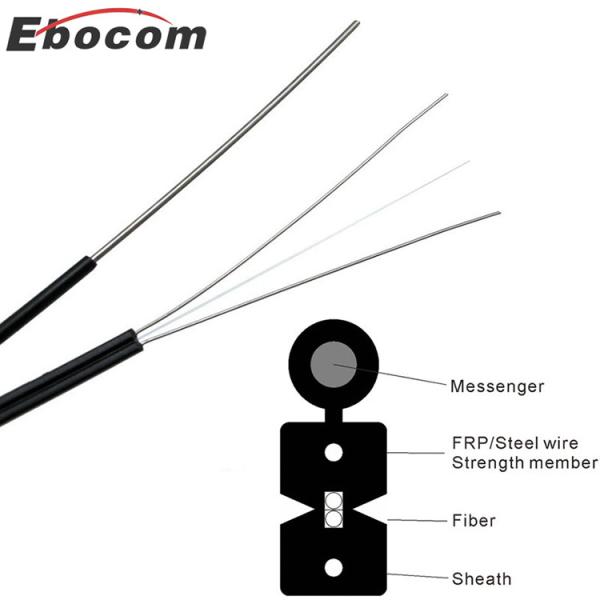

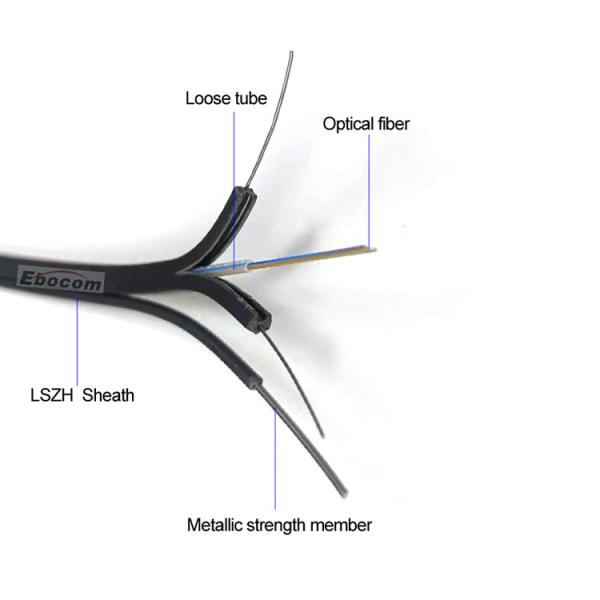

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied.

Then, the cable is completed with a black or white color LSZH sheath./PVC sheath.

Flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers, and two dielectric strength members to give high crush resistance. Fiber drop cable usually contains one or two fibers. However, drop cables with fiber counts up to 12 or more are available now.

Characteristics

1. bandwidth and excellent communication transmission property.
2. 2 parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3. Additional strength member ensure good performance of tensile strength.
4. Light weight and high practicability.
5. Easily strip and splice, simplify the installation and maintenance.
6. Low smoke, zero halogen, flame retardant sheath.

7. Greater bandwidth and enhance network transmission characteristics;

8.Two parallel FRP make the cable have good compression performance, protect the optical cable;
Cable structure is simple, light weight, practicality
Unique groove design, easy to peel, easy to pick, simplify installation and maintenance;
Low-smoke halogen-free flame retardant sheath, environmental protection.
