Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Specifications
Brand Name :
EBOCOM
Model Number :
gjyxfch 2B1
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.016/M ≥5000m $0.014/M
Payment Terms :
T/T
Supply Ability :
50000KMS/day
Delivery Time :
5-8 day
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Place of Origin: :
Shandong,China
Brand Name: :
Ebocom/OEM
Product name: :
GJYXCH/GJYXFCH
fiber optical core: :
G652D, G657A1, G657A2
Fiber Type: :
SM single mode/ MM multi mode
Jacket sheath: :
PVC, LSZH, PE
Description

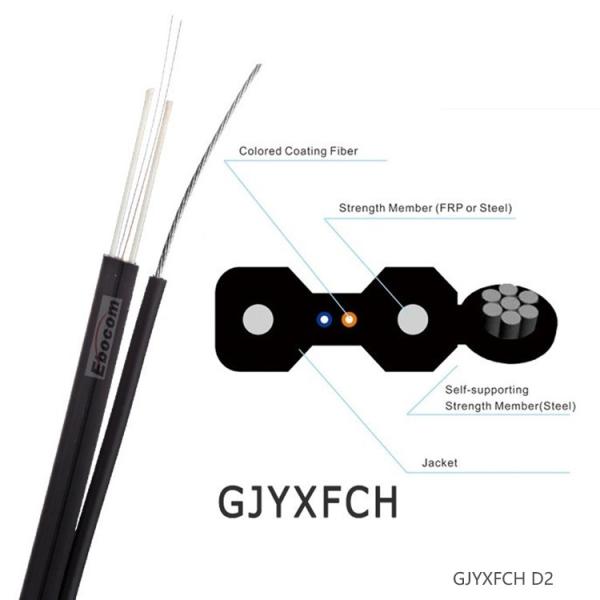

The self-supporting FTTH lead-in cable consists of one or two single-mode fibers (G.657A). The cable is protected by two parallel reinforcement pieces of metal, steel wire and LSZH outer sheathing. The cable is designed for outdoor installation and is ideal for connections between domed enclosures and small residential units/warehouses and detached villas.

Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber

Applications:

  1. used as an outdoor to indoor access cable in the access network or user resident network

  2. Used as access building optical cable in the resident distribution system, especially suitable for indoor or outdoor overhead access wiring.

Features:

  • Light weight and compact structure
  • Two parallel FRP reinforcements for optimal fiber optic protection
  • Low bend sensitivity fiber (G.657A) provides high bandwidth and excellent communication transmission
  • Low smoke zero halogen (LSZH), non-toxic, self-extinguishing sheath

Item Parameters
Fiber Color All colors display
Number of cores 2
Strength member Material Phosphating steel wire
Diameter (mm) 0.4
Messenger wire Material Phosphating steel wire
Diameter (mm) 0.9

Outer jacket

 Material LSZH(Oxygen index≥25%)
Color Black
Cable diameter (Rip off the messenger wire) (mm) 2.0±0.1*3.0±0.1
Min. bending radius(Rip off the messenger wire) Static 15mm
Dynamic 30mm
Tensile performance Short term 600N
Crush Short term 2200N/100mm

Product tags

fibre optic cable wholesale

,

supplier fiber optic cable

,

fiber optic cable supplier
Send your message to this supplier
Send Now

Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber

Ask Latest Price
Product Detail
Brand Name :
EBOCOM
Model Number :
gjyxfch 2B1
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.016/M ≥5000m $0.014/M
Contact Supplier
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber
Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber

Shandong Yibo Optronics Technology Co., Ltd.

Verified Supplier
3 Years
shandong, jinan
Since 2012
Business Type :
Manufacturer, Exporter
Main Products :
ADSS Fiber Optic Cable, FTTH Drop Cable, OPGW Fiber Optic Cable
Total Annual :
3000000-3500000
Employee Number :
200~300
Certification Level :
Verified Supplier
