Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Specifications
Brand Name :
EBOCOM
Model Number :
GJYXCH
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
FOB price：RMB165/KM
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000KMS/day
Delivery Time :
5-8 days
Packaging Details :
1KM/drum
Fiber count :
1 core
Fiber type :
G657A1
Fiber brand :
OEM
Strength messenger :
Steel wire
Jacket material :
lszh
Outer diameter :
1.8*4.8±0.3mm
Color :
Black
HS Code :
8544700000
Description

Description

The drop cable is the final connection linking a service provider's main network (like fiber, cable TV, or telecom) to an individual customer's home or business, serving as the "last mile" link for internet, phone, or TV services, with common types including flat indoor/outdoor FTTH designs for strength and easy deployment.

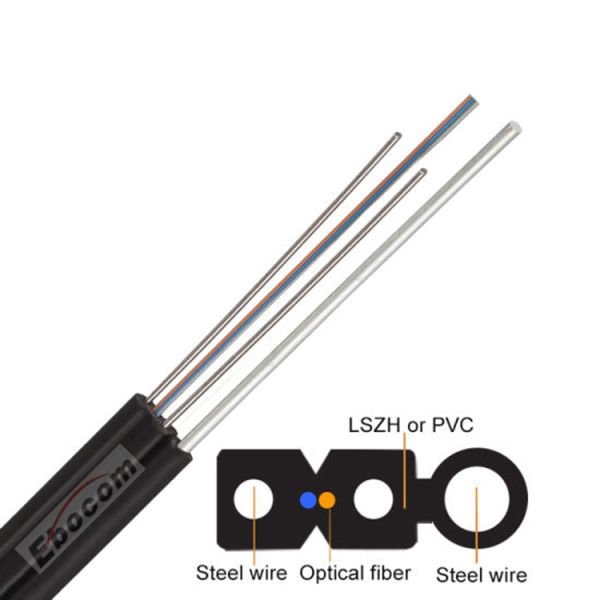

The structure is as following:

Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks

Optical parameters:

Optical performance Unit Data

1.Geometry

Characteristics

 1.1 Cladding diameter um 125±1.0
1.2 Fiber/package concentricity deviation um ≦0.6
1.3 Cladding non-circularity % ≦1.0
1.4 Outer coating diameter um 242±7

1.5 Coating/cladding concentricity

deviation

 um ≦12
2.Attenuation characteristics 2.1 1310nm OTDR Attenuation dB/km ≦0.36
2.2 1550nm OTDR Attenuation dB/km ≦0.22
3. Mode Field Diameter 3.1 1310nm Mode Field Diameter um 8.4-9.2
3.2 1550nm Mode Field Diameter um 9.3-10.4

Application:

Power Distribution: In electrical systems, a service drop cable delivers low-voltage electricity from a utility pole to a building's service entrance.
Enterprise and Industrial Networks: They are used within campuses to link different buildings or connect equipment in IT server rooms to external networks.
Mobile Network Backhaul: Fiber drop cables are used to provide the high-bandwidth connections needed for cell towers and other base stations.
