MachineU > China Products > Electrical Equipment & Supplies
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Specifications
Brand Name :
EBOCOM
Model Number :
Fiber optic cable GYFXTY
Certification :
ISO
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
FOB Rizhao port price：Fiber optic cable 1core : RMB301.29/KM , 2core: RMB323/KM, 4core:RMB 364/KM 8core:RMB 477/KM
Payment Terms :
T/T 30%deposit 70% before shipment
Supply Ability :
50KMS/day
Delivery Time :
10-15 days
Packaging Details :
1.Polywooden drum, 2. Drum size can be designed,details will calculation for suitable for containers.
Place of Origin: :
Shandong, China
Model Number: :
Fiber optic cable 1core 2core 4core 8core
Fiber Type: :
G657A1
Fiber counts： :
2-8core
Jacket: :
PE
Length： :
2KM/drum
Color： :
Black
HS code :
8544700000
Description

Product introduction:

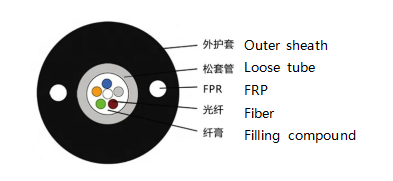

G657A1 Fibers(2-8) are placed in loose tube, Then two parallel FRP reinforcements are placed on both sides and a PE sheath is extruded to form the cable.

Fiber optic cable 1core 2core 4core 8core for Networking Communication

Cable Characteristic:

1.Select high-quality optical fiber to ensure excellent transmission performance.

2.Control the excess length of optical fiber to ensure that the optical cable has excellent mechanical characteristics and temperature characteristics.

3.Strict process and raw material control to ensure stable operation of optical cable.

4.The loose tube is filled with special ointment to protect the optical fiber.

5.The center is a non-metallic reinforced member (FRP), which avoids the lightning induced breakdown between the longitudinal wrapped steel strip and the central reinforcing member.

Application:

Application scope: suitable for long distance communication and inter office communication

Laying method: Aerial/duct/pipe

Optical fiber parameters:

Fiber parameters Unit Count

Geometric characteristic

 1.1Cladding diameter um 125±0.7
1.2 FIiber/packet concentricity deviation um ≦0.5

1.3 cladding non-circularity

 % ≦1.0
1.4 Outer coating diameter um 245±10

1.5 Outer coating/cladding concentricity deviation

 um ≦12.5

Attenuation characteristic

 2.1 1310nm OTDR attenuation dB/km ≦0.38
2.2 1550nm OTDR attenuation dB/km ≦0.24

Mode field

diameter

 3.1 1310nmmode field diameter um 8.6~9.5±0.4

Company Profile:

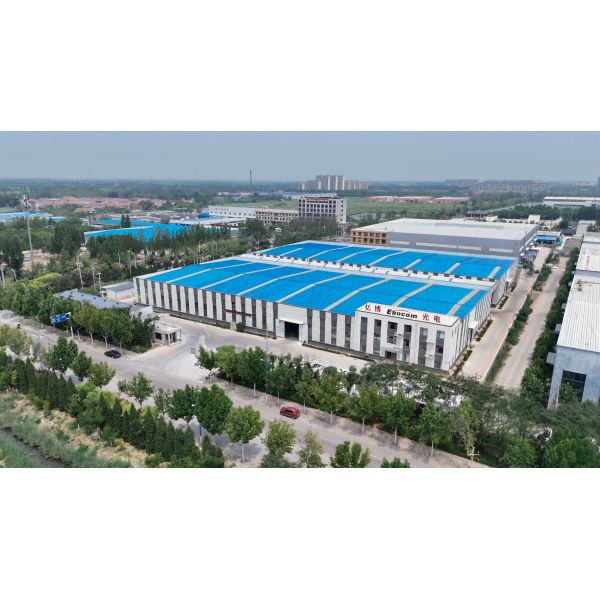

Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and equipment. Widely used in telecom operators, data centers, enterprise networks and other communication infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents.

Fiber optic cable 1core 2core 4core 8core for Networking Communication

Send your message to this supplier
Send Now

Fiber optic cable 1core 2core 4core 8core for Networking Communication

Ask Latest Price
Product Detail
Brand Name :
EBOCOM
Model Number :
Fiber optic cable GYFXTY
Certification :
ISO
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
FOB Rizhao port price：Fiber optic cable 1core : RMB301.29/KM , 2core: RMB323/KM, 4core:RMB 364/KM 8core:RMB 477/KM
Contact Supplier
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication
Fiber optic cable 1core 2core 4core 8core for Networking Communication

Shandong Yibo Optronics Technology Co., Ltd.

Verified Supplier
3 Years
shandong, jinan
Since 2012
Business Type :
Manufacturer, Exporter
Main Products :
ADSS Fiber Optic Cable, FTTH Drop Cable, OPGW Fiber Optic Cable
Total Annual :
3000000-3500000
Employee Number :
200~300
Certification Level :
Verified Supplier
