Applications & Ideal Use Cases:

• Grid Infrastructure: Reliable aerial installations along high-voltage power lines and utility poles.

• Safety-Critical Zones: Optimized for high-voltage environments where non-metallic, anti-interference cables are mandatory.

• Long-Haul Networks: Efficient data transmission for long-distance outdoor communication and backbone networks.

• Rural Connectivity: Ideal for expanding broadband services and telecom infrastructure in remote or rural areas.

• Municipal Projects: Professional-grade cabling for metropolitan area networks and smart city utility systems.

  Technical Specifications:

  Specification	Details

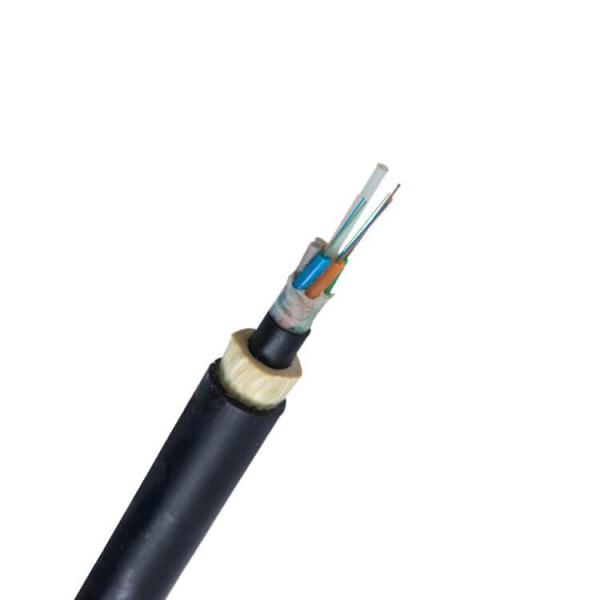

  Product Name	ADSS Fiber Optic Cable
  FiberType	Single Mode (SM)G652D
  Core Count	24 Core

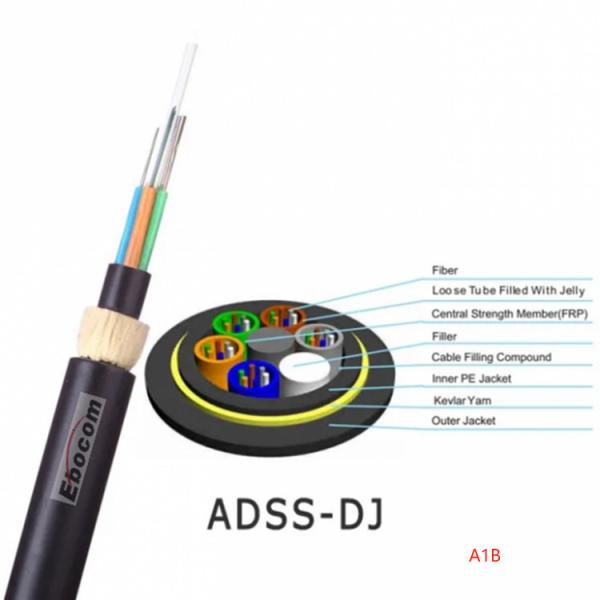

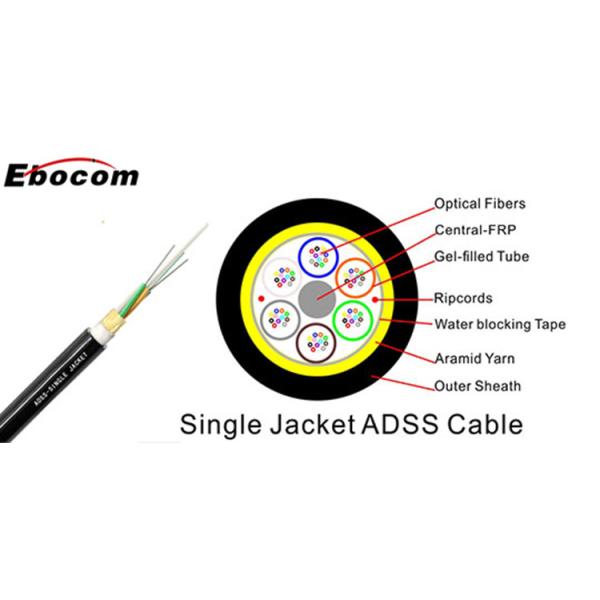

  Cable Design	All-Dielectric Self-Supporting (ADSS)
  Reinforcement Material	Aramid Yarn
  Outer Jacket Material	High-density Polyethylene (HDPE)
  Tensile Strength	Up to 4000 N
  Operating Temperature Range	-40℃ to+70℃
  Attenuation at 1310nm	≤0.36 dB/km
  Attenuation at 1550nm	≤0.22 dB/km
  Maximum Span Length	Up to 1000 meters (depending on specific conditions)
  Installation Method	Aerial(pole to pole,tower to tower,etc.)
  Cable Diameter	Customized based on specific requirements
  Sheath Color	Black (customizable upon request)




Why Choose Our ADSS Fiber Optic Cable?

• Premium Signal Integrity: Utilizing G652D Single-Mode fibers, our cables guarantee ultra-low attenuation and superior high-speed transmission over long distances.

• Extreme Mechanical Durability: Reinforced with high-modulus Aramid Yarn, the cable offers exceptional tensile strength and resilience against heavy wind, ice loading, and extreme temperature fluctuations.

• Rapid & Efficient Installation: The lightweight, self-supporting design allows for quick aerial deployment on existing utility poles without extra support wires, significantly shortening project timelines.

• Significant Cost Savings: The all-dielectric (non-metallic) structure eliminates the need for expensive grounding and bonding, drastically reducing both initial installation and long-term maintenance costs.

• Versatile Deployment: Engineered for maximum flexibility, it is the ideal solution for everything from dense urban metropolitan networks to challenging remote rural telecommunications.
