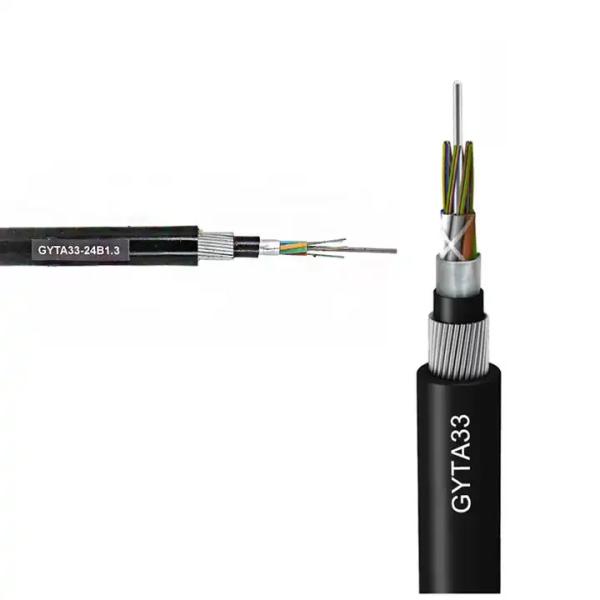

Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Specifications
Brand Name :
EBOCOM
Model Number :
GYTA33
Certification :
ISO
Place of Origin :
Shandong，China
MOQ :
100 Pieces
Price :
USD 0.46~3, Meter
Payment Terms :
T/T
Supply Ability :
3000 Pieces per Day
Delivery Time :
3-5 days
Packaging Details :
Bag, Carton or Custimized
Weight :
105~300kg
Outer Diameter :
12.5-14.9mm
Operating Wavelength :
1310 nm / 1550 nm
Tensile Strength :
Up to 1500 N
Crush Resistance :
3000 N/100 mm
Operating Temperature :
-40°C to +70°C
Description
Product Description
Detailed Specifications & Features
Product Description

Our GYTA33 Fiber Optic Cable is a high-performance, rugged solution designed specifically for underwater&direct buried outdoor installations. This cable is equipped withsingle mode fibers to ensure low attenuation and reliable long-distance transmission. The steel wire armour provides robust protection against environmental and mechanical stress, making the GYTA33 fiber optic cable ideal for challenging conditions in outdoor and industrial settings.

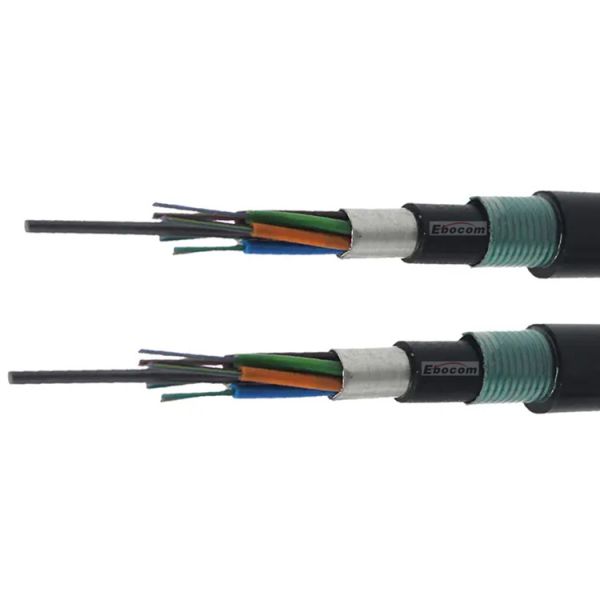

Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use

Key Features:
  • Fiber Core Options: Up to 288 core, Suitable for various network scales, providing flexibility for different transmission needs.
  • Steel Wire Armour: Reinforces the cable structure, protecting against impact and compression, perfect for direct buried installations.
  • Single Mode Fiber: Delivers low signal loss, supporting stable long-distance communication.
  • Outdoor Durability: UV-resistant and water-blocking materials ensure performance in all climates.
  • Consistent High Performance: Reliable data transmission for critical telecom and data networks.
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Applications:
  • Long-distance telecom and data networks
  • Direct buried installations in industrial and outdoor environments
  • Backbone networks in urban and rural areas
  • Data centers and large-scale network infrastructures
Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
Technical Specifications:
Specification Details
Product Name GYTA33 Fiber Optic Cable
Fiber Type Single Mode (G652/G653/G654/G655)
Core Count Up to 288 core
Cable Structure Central Loose Tube with Steel Wire Armour
Outer Sheath Material Polyethylene (PE)
Tensile Strength Up to 1500 N
Crush Resistance 3000 N/100 mm
Operating Temperature Range -40°C to +70°C
Attenuation at 1310nm ≤ 0.35 dB/km
Attenuation at 1550nm ≤ 0.20 dB/km
Cable Diameter Approximately 12.6 mm (varies slightly by core count)
Water Blocking Gel-filled and water-blocking tape
Installation Method Direct burial
Weight Approx. 210 kg/km (varies by core count)

Direct Buried GYTA33 Armored Fiber Optic Cable with Steel Wire Armour and Single Mode Fiber for Outdoor Use
