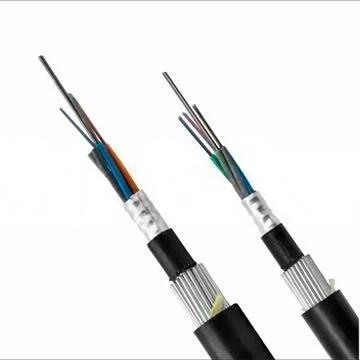

GYTA33 Submarine Fiber Optic Cable 48 96 144 Cores Under Water Optical Fiber Cable
GYTA33 Submarine Fiber Optic Cable 48 96 144 Cores Under Water Optical Fiber Cable
GYTA33 Submarine Fiber Optic Cable 48 96 144 Cores Under Water Optical Fiber Cable
GYTA33 Submarine Fiber Optic Cable 48 96 144 Cores Under Water Optical Fiber Cable
Specifications
Brand Name :
Ebocom
Model Number :
GYTA33
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
USD 0.46~3, Meter
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
20KM per Day
Delivery Time :
5-10 days
Packaging Details :
Plywood Drum or Custimized
Application :
Telecommunication
Fiber type :
single mode or multi mode
Oem :
Available
Installation :
Direct buried, underwater
Structure :
Loose tube
Sheath material :
HDPE/MDPE
Armoring :
Steel wire
Core :
Up to 288 fibers
Description

Product Overview

The GYTA33 fiber optic cable is designed for critical outdoor networks in rivers, wetlands, and rocky terrains where maximum mechanical protection is required.
This double-armored cable combines an aluminum tape layer with heavy-duty galvanized steel wires, providing outstanding resistance to rodent attacks, crushing forces, and long-term water immersion.
Its stranded loose tube structure ensures excellent optical performance and stability in the most severe environments.

Main Features

  • Double Armored Protection: Inner aluminum tape plus outer steel wire armor delivers exceptional tensile strength and crush resistance for direct burial and shallow-water projects.

  • Rodent & Termite Resistant: Steel wire armor effectively prevents damage from rodents and other burrowing animals, protecting the network in farmland, forests, and rural areas.

  • Superior Waterproofing: Water-blocking gel inside the loose tubes combined with the PE outer jacket keeps the fibers dry and stable in wet or submerged conditions.

  • Long Service Life: UV-resistant black PE sheath resists sunlight, chemicals, and harsh weather for decades of reliable operation.

  • Flexible Fiber Options: Available with single-mode G652D, G657A1/A2 or multi-mode fibers, fiber count up to 144 cores.

Recommended Applications

  • River or lake crossings where cables may be partially submerged.

  • Direct-burial telecom routes in farmland or forest areas with a high risk of rodent bites.

  • Coastal and marshland communication networks exposed to salt, humidity, and corrosive environments.

  • Heavy-duty industrial installations such as mining sites and energy pipelines.

Technical Data

Parameter Specification
Fiber Type Single-mode G652D G654 G655

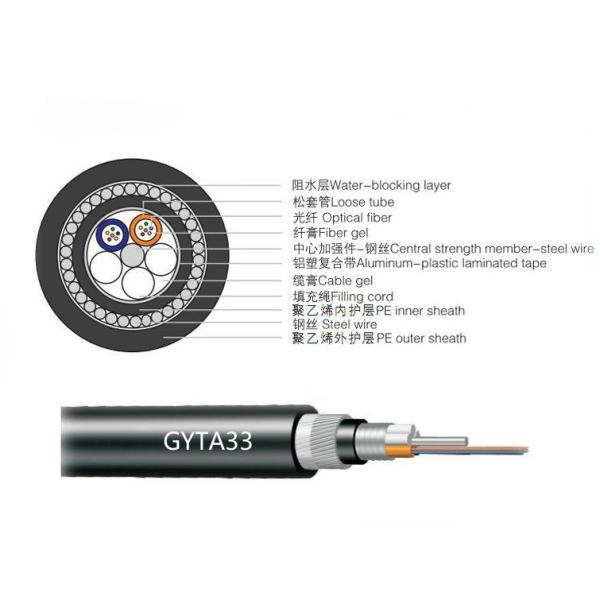

Structure Stranded loose tube, filled with water-blocking gel
Armoring Inner aluminum tape + outer galvanized steel wires
Strength Member Phosphated steel wire
Outer Jacket UV-resistant black PE
Fiber Count 2–144 cores
Tensile Strength ≥ 3000 N (customizable)
Crush Resistance ≥ 3000 N/100 mm
Operating Temperature -40°C to +70°C
Installation Method Direct burial, underwater laying, river and coastal use
Standards ISO9001
