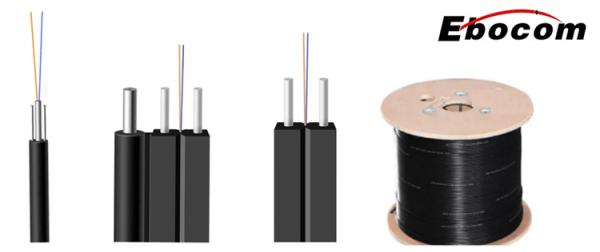

Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
Specifications
Brand Name :
EBOCOM
Model Number :
GJYXFCH-1B1A6
Certification :
ISO TLC
Place of Origin :
Shandong，China
MOQ :
2000M
Price :
EXW ≥2000m $0.019/M ≥5000m $0.018/M
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
20000KMS/day
Delivery Time :
5-8 days
Packaging Details :
1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Fiber count :
1-4 core
Fiber type :
G652D G657A1 G657A2
Fiber brand :
OEM
Strength messenger :
Steel wire/ FRP
Jacket material :
lszh pvc
Outer diameter :
4.8*2.8±0.2mm
Brand :
EBOCOM/OEM
Description
Description

The fiber unit is located in the center. Two parallel fiber reinforcements (steel wires) are located on either side. In addition, a steel wire is used as an additional strength member. Finally, the cable has a black or colored low-smoke, halogen-free sheath.
Characteristics

- Specially formulated low-bend-sensitivity optical fiber provides high bandwidth and excellent communication transmission performance.
- Two parallel steel or fiberglass reinforcements ensure excellent compression resistance and effectively protect the optical fiber.
- A single steel or messenger wire serves as an additional reinforcement, ensuring excellent tensile strength.
- Simple structure, lightweight, and highly practical.
- Innovative groove design facilitates stripping and splicing, simplifying installation and maintenance.
- Low-smoke, halogen-free, flame-retardant sheath

Outdoor No Metal GJYXFCH 1- 4Core G652D G657A1 G657A2 Drop Cable For Ftth Communication
