Product Overview

The GYXTC8S fiber optic cable is a self-supporting Figure-8 outdoor cable designed for aerial installation in telecom networks, FTTH backbone lines, CCTV transmission, and long-distance access projects.

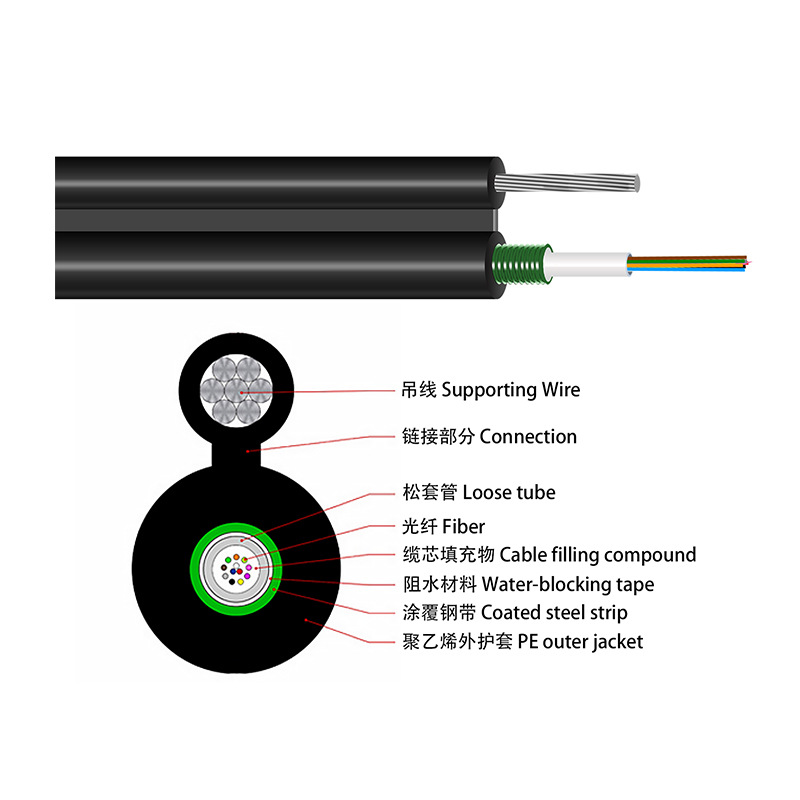

Its structure combines a central loose tube filled with gel, corrugated steel tape armor, and a separate messenger wire—either a galvanized steel strand or a single steel wire—forming a strong and reliable 8-shape profile ideal for pole-to-pole spans.

The GYXTC8S cable offers excellent mechanical strength, UV resistance, and moisture protection, making it one of the most popular choices for outdoor communication networks.

Key Features

• Figure-8 self-supporting design with an independent messenger wire

• Central loose tube structure, ideal for stability and easy fiber management

• Corrugated steel tape armored (PSP) for enhanced crush resistance and rodent protection

• Stable aerial performance, suitable for short and medium spans

• PE outdoor jacket, UV-resistant and weatherproof

• Water-blocking gel to prevent longitudinal moisture penetration

• Messenger wire options:

  • 1× galvanized steel wire

  • 7-strand steel messenger (e.g., 7×1.0 mm or 7×0.3 mm)

Applications

• Aerial installation on poles

• FTTH / FTTB backbone distribution

• CCTV security networks

• Rural broadband projects

• Municipal communication systems

• Telecommunication long-distance transmission

Technical Specifications

Why Choose Ebocom?

• 12+ years of manufacturing experience in aerial fiber optic cables

• Large-scale production capacity, ensuring stable supply and quick delivery

• Strict quality control, with full fiber testing and material inspection

• OEM/ODM support, including messenger type, fiber count, printing, packaging

• Exported to Southeast Asia, Africa, Europe, Middle East, South America
