Specifications
Brand Name :
Ebocom
Model Number :
GYXTC8S
Certification :
ISO
Place of Origin :
China
MOQ :
2000M
Price :
USD 0.05~0.1, Meter
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
80 KM per Day
Delivery Time :
10-15 days
Packaging Details :
Plywood Drum
Model Name :
GYXTC8S
Installation Temperature :
-30°C to +60°C
Packing :
2-4km/wooden Drum
Life Time :
25-30 years
Installation :
self- supporting aerial
Fiber Range :
2-24 cores
Jacket Material :
Polyethylene (PE)
Armored :
Steel Tape Armored
Factory :
Yes
Fiber Model :
G652D G657A1 G657A2
Description

Product Description

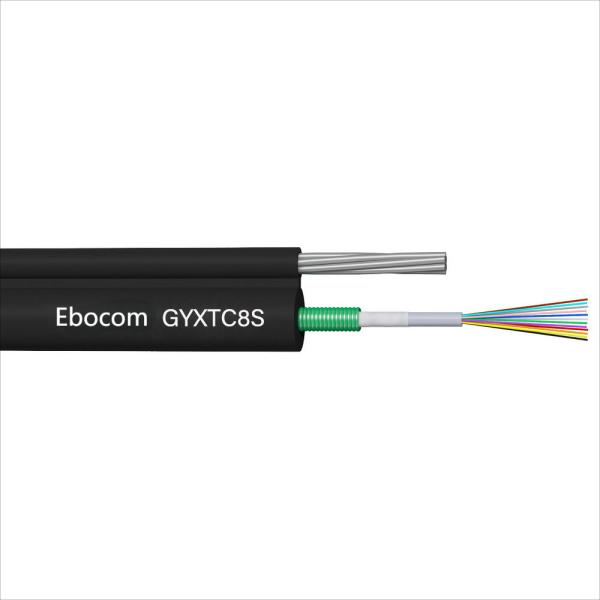

The 8-core GYXTC8S aerial fiber optic cable is a durable and efficient solution for outdoor communication networks requiring stable pole-to-pole transmission.

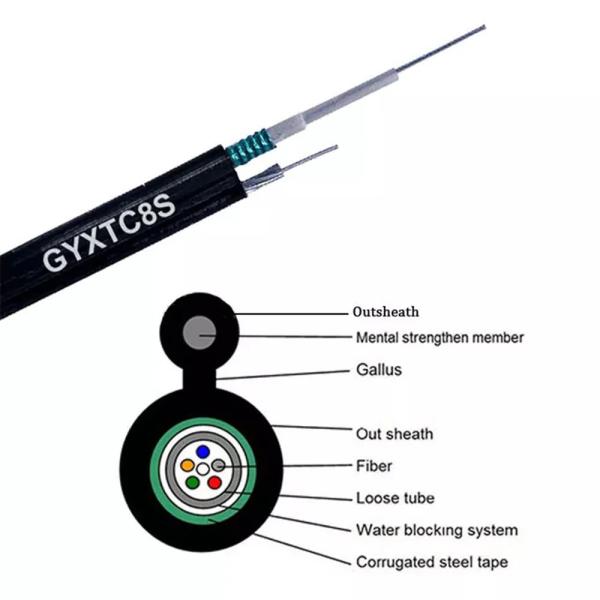

This cable adopts a central loose tube design containing eight G652D single-mode fibers, protected by water-blocking gel and wrapped with corrugated steel tape armor.

The signature Figure-8 profile integrates an independent messenger wire—available either as a solid galvanized steel wire or a stranded steel messenger—providing excellent tensile strength for aerial routes.
Its compact structure, reliable mechanical performance, and UV-resistant PE jacket make it widely used in telecom carriers, broadband projects, and surveillance systems.

Main Advantages

  • 8-core G652D fiber, ideal for medium-capacity backbone and access networks

  • Figure-8 geometry, simplifying aerial installation and reducing hardware needs

  • Independent messenger wire, offering strong support and stable tension performance

  • Steel tape armor, improving anti-crush, anti-rodent, and environmental resistance

  • Lightweight central-tube design, easy to deploy over poles and buildings

  • Enhanced moisture protection ensured by gel-filled tube and sealed structure

  • Adaptable for various terrains, including urban, rural, and coastal regions

Typical Applications

  • Aerial pole routes for broadband expansion

  • FTTx distribution networks

  • CCTV and perimeter monitoring systems

  • Communication lines across villages, campuses, and industrial parks

  • Medium-span outdoor installations (up to 150 m depending on messenger type)

Technical Specifications

Item Description
Model GYXTC8S
Fiber Count 8 cores
Fiber Type ITU-T G652D Single-Mode Fiber
Cable Structure Central loose tube with Figure-8 aerial design
Messenger Wire Options Single galvanized steel wire / stranded steel messenger
Armoring Layer Corrugated steel tape (PSP)
Outer Jacket Material Outdoor-grade PE
Installation Method Aerial, self-supporting
Span Range Typically 60–150 meters
Operating Temperature –40°C to +70°C
Moisture Resistance Gel-filled tube + sealed structure
