Specifications
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Model Number :
GYFTY63-48B1.3
OEM :
Available
Brand Name :
Ebocom
Structure :
Loose tube
Strength member :
Glass yarn
MOQ :
2000 Meters
Delivery Time :
5-8 work days
Operating temperature :
-40~75,20 ~+70,-40 ~ +60 C
Price :
USD 0.14~0.32 per Meter
Length :
or as required,1KM OR 2KM OR 500M,1 km 2km 3km per drum,1km,2km or customized length
Certification :
ISO
Application :
Telecommunication,Aerial,Duct,Telecom,Network
Place of Origin :
China
Packaging Details :
Plywood drum package
Jacket :
PE
Payment Terms :
T/T
Fiber count :
48 cores
Supply Ability :
100KM per Day
Description

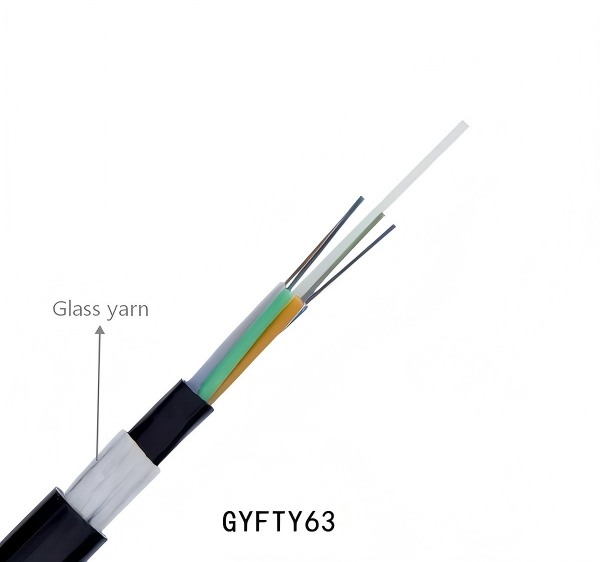

GYFTY63 48 Core Fiber Optic Cable Non-metallic Dielectric Cable
Product Overview

The GYFTY63 48 Core Fiber Optic Cable is a high-density, non-metallic dielectric cable designed for reliable backbone data transmission in areas prone to severe rodent infestation and electromagnetic interference (EMI). This heavy-duty cable utilizes a stranded loose tube structure that groups the 48 single-mode fiber cores into multi-fiber tubes spun around a central strength member, ensuring excellent structural integrity and environmental stability.

Engineered with a robust double jacket structure and reinforced with a thick layer of glass yarn (fiberglass strength members), the GYFTY63 cable provides an eco-friendly, highly effective physical barrier against mice and rodents without using hazardous chemical additives. Its 100% dielectric composition ensures total immunity to lightning strikes and high-voltage electrical tracking, making it an ideal choice for challenging outdoor installations.

Primary Application Scenarios
  • Anti-Rodent Underground Ducts: Perfect for direct installation into subterranean conduits and city duct networks where rodent infestation poses a constant risk of cable gnawing.
  • High-Voltage Power Line Co-location: Safely laid alongside high-voltage electrical grids, rail transit lines, and power distribution channels without electromagnetic interference.
  • Direct Buried & Trench Deployments: The dual-sheath and glass yarn reinforcement provide the necessary crush resistance and mechanical protection for buried backbone links.
  • Campus & Industrial Backbone Networks: Connecting external distributed network distribution frames to main server rooms across multi-building enterprise complexes.
Technical Specifications
Cable Feature Technical Specification Details
Cable Model GYFTY63 Fiber Optic Cable
Fiber Count 48 Cores

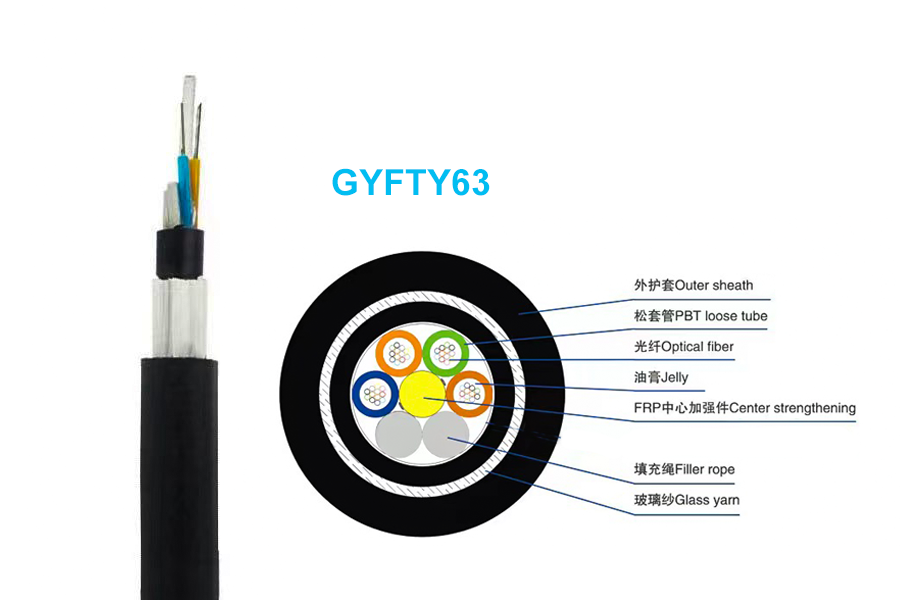

Cable Structure Stranded Loose Tube / Double Jacket (PE-to-PE)
Rodent Protection Heavy-Duty Glass Yarn Layer (Anti-Rodent / Anti-Bite)
Fiber Specifications Singlemode G.652.D (Low Attenuation)
Central Strength Member FRP (Fiber Reinforced Plastic)
Inner Jacket Material Polyethylene (PE)
Outer Jacket Material UV-Resistant Black PE
Nominal Outer Diameter Approx. 10.0mm - 12.0mm
Max Tensile Strength Short term: 1500 N | Long term: 600 N
Crush Resistance Short term: 3000 N/100mm | Long term: 1000 N/100mm
Operating Temperature -40°C to +70°C
GYFTY63 48 Core Fiber Optic Cable Non-metallic Dielectric Cable
Key Performance Advantages
  • Effective Rodent Protection: The glass yarn layer fragments when bitten, creating an abrasive texture that naturally deters rodents from piercing the inner core.
  • Double Jacket Mechanical Armor: Two layers of premium black high-density polyethylene resist moisture penetration, soil acids, and intense crushing forces.
  • 100% Non-Metallic Safety: No steel tape or wire means zero electrical conductivity, protecting your network backbone from lightning strikes and high-voltage induction.
  • Stranded Loose Tube Design: Protects the 48 fiber cores from environmental stress, ensuring stable optical attenuation across decades of outdoor service.
